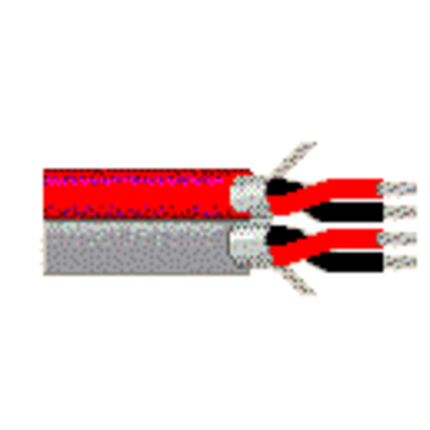

(4)Audio Cable, CM-Rated, 2-22 AWG stranded tinned copper pairs with PVC insulation, Beldfoil® shield, drain, PVC jacket, parallel construction
| Suitable Applications: | for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); stereo audio; computer communication; panel wiring |
| Size | Stranding | Material |
|---|---|---|
| 22 | 19x34 | TC - Tinned Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.01 in (0.25 mm) | 0.050 in (1.3 mm) | Black & Red |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.286 in |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|
| 13.7 Ohm/1000ft (44.9 Ohm/km) | 57 pF/ft (190 pF/m) | 100 pF/ft (330 pF/m) | 45 Ohm | 66% | 2.9 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 150 V RMS |
| UL Temperature | Operating |
|---|---|
| 60°C | -30°C To +60°C |
| Max. Pull Tension: | 25 lbs (11 kg) |
| Bulk Cable Weight: | 30 lbs/1000ft (45 kg/km) |
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire: | UL1685 UL Loading, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | CM |
| CEC / C(UL) Compliance: | CM |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | Overall Nominal Diameter: 0.143 x 0.286 in. The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is inside foil shield. |
| Update and Revision: | Revision Number: 0.438 Revision Date: 02-03-2025 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1504A J77U1000 | Black and Red Pair | UnReel | 1,000 ft | 612825116165 | |
| 1504A 0531000 | Red and Gray Pair | Reel | 1,000 ft | 612825116189 | |
| 1504A 053U1000 | Red and Gray Pair | UnReel | 1,000 ft | 612825116172 | |
| 1504A 0532000 | Red and Gray Pair | Reel | 2,000 ft | 612825116196 | C |
| 1504A A5QU1000 | Red and Green Pair | UnReel | 1,000 ft | 612825116134 | |
| 1504A A5Q2000 | Red and Green Pair | Reel | 2,000 ft | 612825116141 | C |
| 1504A G04U1000 | Red and Purple Pair | UnReel | 1,000 ft | 612825116158 |
