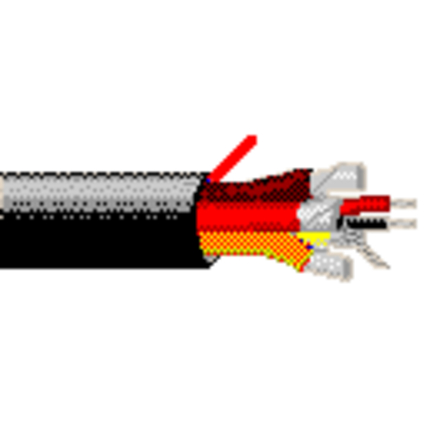

1427B - Audio Snake Cable, #22-24pr, TC, Indiv. Shielded, CM
Audio Snake Cable, 24-22 AWG tinned copper pairs, Datalene® insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, flexible PVC jacket
Product Overview
| Environmental Space: | Indoor (Not Riser or Plenum) |
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 0.03 in | 24 |
| Conductor Count: | 48 |
| Total Number of Pairs: | 24 |
| Conductor Size: | 22 AWG |
Insulation
| Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| FHDPE - Foamed High Density Polyethylene | Datalene® | 0.06 in | 0.015 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Brown |
| 2 | Red |
| 3 | Orange |
| 4 | Yellow |
| 5 | Green |
| 6 | Blue |
| 7 | Purple |
| 8 | Gray |
| 9 | White |
| 10 | Black |
| 11 | Tan |
| 12 | Pink |
| 13 | Gray/Brown |
| 14 | Gray/Red |
| 15 | Gray/Orange |
| 16 | Gray/Yellow |
| 17 | Gray/Green |
| 18 | Gray/Blue |
| 19 | Gray/Purple |
| 20 | Gray/Gray |
| 21 | Gray/White |
| 22 | Gray/Black |
| 23 | Gray/Tan |
| 24 | Gray/Pink |
Color Chart 2
| Color |
|---|
| Red and Black |
Inner Shield Material
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Aluminum Foil-Polyester Tape | Beldfoil® | 100 % | TC - Tinned Copper | 0.030 in | 22 | 7x30 |
| TC - Tinned Copper |
Inner Jacket Material
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.153 in | 0.015 in |
Outer Jacket Material
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 1.088 in | 0.09 in | Yes |
| 1.088 in |
Construction and Dimensions
Stranding
| Lay Length | Twists |
|---|---|
| 1.75 in | 6.85 twist/ft |
Electrical Characteristics
Conductor DCR
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance |
|---|---|---|
| 10.6 Ohm/1000ft | 15 Ohm/1000ft | 15 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 19 pF/ft | 35 pF/ft |
| Shielding: | Individualy Shielded + No Overall |
Inductance
| Nominal Inductance |
|---|
| 0.2 µH/ft |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 78 % |
Current
| Max. Recommended Current [A] |
|---|
| 1.45 Amps per conductor @ 20°C |
Voltage
| Non-UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| Non-UL Temp Rating: | 60°C |
| Operating Temp Range: | -20°C To +60°C |
Mechanical Characteristics
| Bulk Cable Weight: | 531 lbs/1000ft |
| Max Recommended Pulling Tension: | 655 lbs |
| Min Bend Radius/Minor Axis: | 10.88 in |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2004-01-01 |
| CA Prop 65 (CJ for Wire & Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
Suitability
| Suitability - Indoor: | Yes |
Plenum/Non-Plenum
| Plenum (Y/N): | No |
Part Number
Variants
| Item # | Color | Footnote |
|---|---|---|
| 1427B B591000 | Black, Matte | C |
| Footnote: | C - CRATE REEL PUT-UP. |
RoHS Documentation
