1422A - RS232/422 Low Cap, #24-5pr, FPE, O/A Foil, PVC Jkt, CM, 100Ω


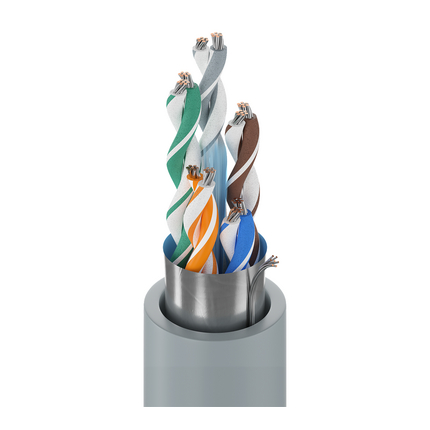

Computer EIA RS-232/422 Cable, 5-Pair, 24 AWG stranded (7x32) tinned copper conductors, Datalene® insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Product Overview

Suitable Applications: RS-232 extended distance applications; RS-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)247x32TC - Tinned Copper5
Conductor Count: 10
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Pair(s)PE - Polyethylene (Foam)Datalene®0.0125 in
Color Chart
NumberColor
1White/Blue Stripe & Blue/White Stripe
2White/Orange Stripe & Orange/White Stripe
3White/Green Stripe & Green/White Stripe
4White/Brown Stripe & Brown/White Stripe
5White/Gray Stripe & Gray/White Stripe
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.294 in0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24 Ohm/1000ft14.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
13 pF/ft22 pF/ft
Inductance
Nominal Inductance
0.213 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
78 ns/100m78 %
Current
Max. Recommended Current [A]
1.8 Amps per conductor @ 25°C ambient
Voltage
UL DescriptionUL Voltage Rating
CM300 V
UL AWM 291930 V

Temperature Range

Operating Temp Range: -20°C to +80°C

Mechanical Characteristics

Bulk Cable Weight: 39 lbs/1000ft
Max Recommended Pulling Tension: 55 lbs
Min Bend Radius/Minor Axis: 3 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: 2919

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V, 30V (AWM)

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
1422A 0601000Chrome612825115038
1422A 060500Chrome612825115045
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision: Revision Number: 0.264 Revision Date: 05-27-2020
Date: 2004-01-01
