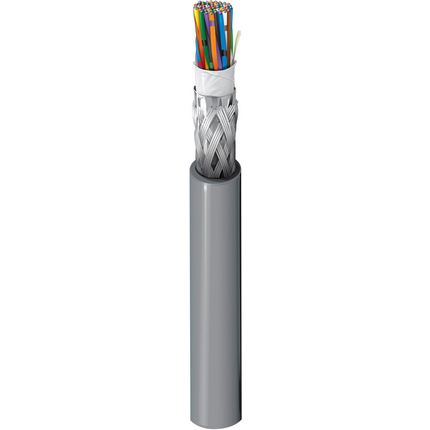

(10)SCSI, 28 AWG stranded (7x36) tinned copper conductors, flame-retardant polyolefin insulation, polypropylene buffer layer, twisted pairs, overall Beldefoil® shield + tinned copper braid shield (85% coverage), see color code chart (below), light gray PVC jacket.
| Suitable Applications: | SCSI II |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 28 | 7x36 | TC - Tinned Copper | 34 |
| Conductor Count: | 68 |
| Material | Nominal Wall Thickness |
|---|---|
| PP - Polypropylene | 0.01 in |
| Number | Color |
|---|---|
| 1 | White/Blue & Blue/White |
| 2 | White/Orange & Orange/White |
| 3 | White/Green & Green/White |
| 4 | White/Brown & Brown/White |
| 5 | White/Gray & Gray/White |
| 6 | Red/Blue & Blue/Red |
| 7 | Red/Orange & Orange/Red |
| 8 | Red/Green & Green/Red |
| 9 | Red/Brown & Brown/Red |
| 10 | Red/Gray & Gray/Red |
| 11 | Black/Blue & Blue/Black |
| 12 | Black/Orange & Orange/Black |
| 13 | Black/Green & Green/Black |
| 14 | Black/Brown & Brown/Black |
| 15 | Black/Gray & Gray/Black |
| 16 | Yellow/Blue & Blue/Yellow |
| 17 | Yellow/Orange & Orange/Yellow |
| 18 | Yellow/Green & Green/Yellow |
| 19 | Yellow/Brown & Brown/Yellow |
| 20 | Yellow/Gray & Gray/Yellow |
| 21 | Purple/Blue & Blue/Purple |
| 22 | Purple/Orange & Orange/Purple |
| 23 | Purple/Green & Green/Purple |
| 24 | Purple/Brown & Brown/Purple |
| 25 | Purple/Gray & Gray/Purple |
| 26 | White & Blue |
| 27 | White & Orange |
| 28 | White & Green |
| 29 | White & Brown |
| 30 | White & Gray |
| 31 | Red & Blue |
| 32 | Red & Orange |
| 33 | Red & Green |
| 34 | Red & Brown |
| Type | Layer | Material | Material Trade Name | Coverage [%] |
|---|---|---|---|---|
| Tape | 1 | Alum / Poly | Beldfoil® | 100 % |
| Braid | 2 | TC - Tinned Copper | 85 % |
| Material | Nominal Diameter | Nominal Wall Thickness | Separator Material |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.48 in | 0.038 in | Foam Polypropylene Binder Tape |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 64.9 Ohm/1000ft | 1.5 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 12.7 pF/ft | 30 pF/ft |
| Nominal Characteristic Impedance | Nominal Characteristic Tolerance | Nominal Characteristic Impedance Description |
|---|---|---|
| 122 Ohm | 31 Ohm | Differential TDR |
| 84 Ohm | ± 12 Ohm | Single Ended TDR |
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 66 ns/100m | 0.04 ns/ft | 66 % |
| Max. Recommended Current [A] |
|---|
| 0.5 Amps per conductor @ 25°C A |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Bulk Cable Weight: | 128 lbs/1000ft |
| Max Recommended Pulling Tension: | 180 lbs |
| Min Bend Radius/Minor Axis: | 5 in |
| NEC/(UL) Specification: | CL2, CM |
| CEC/C(UL) Specification: | CM |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-10-13 |
| MII Order #39 (China RoHS): | Yes |
| UL Flammability: | UL1685 UL Loading |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | UPC |
|---|---|---|
| 1403A F2V1000 | Gray, DEC | 612825114765 |
| 1403A F2V500 | Gray, DEC | 612825114772 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Update and Revision: | Revision Number: 0.243 Revision Date: 04-28-2020 |
