1393P - RGB Video, Mini Hi-Res, 25 AWG 3 Coax Solid TC, CMP

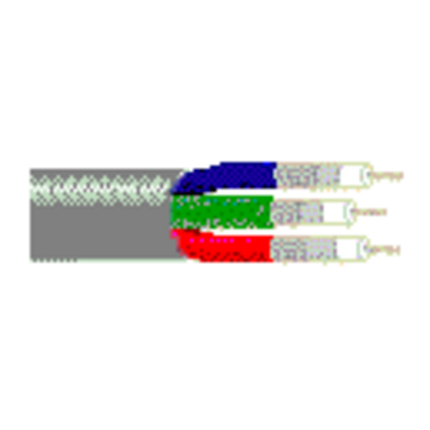

RGB Video Cable, 3 coax, 25 AWG solid tinned copper, foam FEP insulation, Duofoil® shield+95% tinned copper serve, inner Flamarrest® jackets, CMP overall Flamarrest® jacket.

Product Overview

Suitable Applications: Video

Physical Characteristics (Overall)

AWGStrandingMaterialNominal DiameterNo. of Coax
25SolidTC - Tinned Copper0.018 in3
Conductor Count: 3
MaterialNominal Diameter
PE - Polyethylene (Foam)0.074 in
Color Chart 3
Inner Shield
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Tri-Laminate (Alum+Poly+Alum)Duofoil®100%
Spiral Serve / Screen2Tinned Copper (TC)95%
Inner Jacket
MaterialMaterial Trade NameNominal Diameter
PVC - Polyvinyl ChlorideFlamarrest®0.105 in
Outer Shield
Tri-Laminate (Alum+Poly+Alum)
Tinned Copper (TC)
Outer Jacket
MaterialMaterial Trade NameNominal Diameter
PVC - Polyvinyl ChlorideFlamarrest®0.262 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Inner Shield DCROuter Conductor DCR
34 Ohm/1000ft5.4 Ohm/1000ft5.4 Ohm/1000ft
Nom. Capacitance Conductor to Shield
16.8 pF/ft
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz]Minimum Return (RL)
5 - 850 MHz15 dB
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.4 dB/100ft
5 MHz0.9 dB/100ft
50 MHz3.7 dB/100ft
100 MHz5 dB/100ft
200 MHz7 dB/100ft
400 MHz10 dB/100ft
750 MHz14.5 dB/100ft
1000 MHz17 dB/100ft
2250 MHz17.5 dB/100ft
3000 MHz37 dB/100ft
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.25 ns/ft81%
UL Voltage Rating
300 V RMS
Electrical Characteristics Notes: Return Loss: Fixed Bridge and Termination

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 60°C
Operating Temperature Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 29 lbs/1000ft
Max. Pull Tension: 37 lbs
Min Bend Radius (Overall): 2.6 in
Min Bend Radius (Each Coax): 1.1 in


NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
RG Type: Sub-miniature 59

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
MII Order #39 (China RoHS): Yes


Suitability - Indoor: Yes
Suitability - Outdoor: No

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 300 V RMS


Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 1393R
Item #ColorPut-Up TypeLengthUPC
1393P 008500GrayReel500 ft612825114260
1393P 0081000GrayReel1,000 ft612825114253

Product Notes

Notes: Rip cord under jacket


Update and Revision: Revision Number: 0.308 Revision Date: 04-08-2022
Date: 2012-06-28
