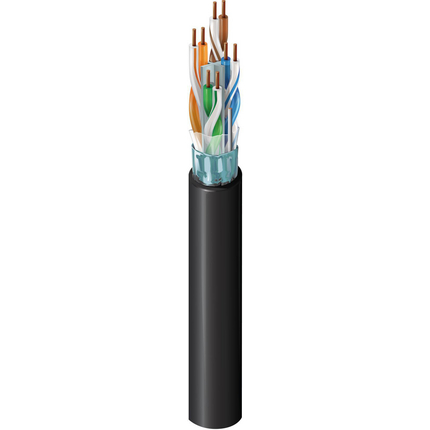

1352A - Category 6 Cable, 4 Pair, F/UTP, CMP


Category 6 Premise Horizontal Cable (250MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Plenum-CMP, Flamarrest® PVC-LS Jacket

Product Overview

Suitable Applications: Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE, Noisy Environments
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details

Conductor
AWGStrandingMaterialNumber of Pairs
23SolidBC - Bare Copper4
Insulation
MaterialColor Code
FEP - Fluorinated Ethylene PropyleneWhite/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Bonded-Pair: No
Outer Shield Material
TypeMaterialCoverageDrainwire Type
TapePolyester + Bi-Laminate (Alum+Poly)100%24 AWG (Solid) TC
Outer Jacket Material
Separator MaterialMaterialMaterial Trade NameNom. DiameterRipcord
Center Member (Patented X-Spline®)PVC - Polyvinyl ChlorideFlamarrest®0.310 inNo

Electrical Characteristics

Electricals
Max. Conductor DCRMax. DCR UnbalanceMax. Capacitance UnbalanceNom. Mutual CapacitanceNom. Velocity of Prop.
93.8 Ohm/km3%160 pF/100m14 pF/ft72%
Delay
Frequency [MHz]Max. DelayMax. Delay SkewNom. Velocity of Propagation (VP) [%]
100 MHz537.6 ns/100m45 ns/100m72%
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted)Max./Min. Fitted ImpedanceMin. TCL [dB]Min. ELTCTL [dB]
1 MHz2.0 dB/100m74.3 dB72.3 dB70.3 dB67.8 dB64.8 dB20.0 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB35.0 dB
4 MHz3.8 dB/100m65.3 dB63.3 dB59.5 dB55.7 dB52.7 dB23.0 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB23.0 dB
8 MHz5.3 dB/100m60.8 dB58.8 dB53.4 dB49.7 dB46.7 dB24.5 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB16.9 dB
10 MHz6.0 dB/100m59.3 dB57.3 dB51.4 dB47.8 dB44.8 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB15.0 dB
16 MHz7.6 dB/100m56.3 dB54.3 dB46.7 dB43.7 dB40.7 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm38.0 dB10.9 dB
20 MHz8.5 dB/100m54.8 dB52.8 dB44.3 dB41.7 dB38.7 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm37.0 dB9.0 dB
25 MHz9.5 dB/100m53.3 dB51.3 dB41.8 dB39.8 dB36.8 dB24.3 dB100 ± 15 Ohm100 ± 15 Ohm36.0 dB7.0 dB
31.25 MHz10.7 dB/100m51.9 dB49.9 dB39.2 dB37.9 dB34.9 dB23.6 dB100 ± 15 Ohm100 ± 15 Ohm35.1 dB5.1 dB
62.5 MHz15.4 dB/100m47.4 dB45.4 dB30.0 dB31.8 dB28.8 dB21.5 dB100 ± 15 Ohm100 ± 15 Ohm32.0 dB
100 MHz19.8 dB/100m44.3 dB42.3 dB22.5 dB27.8 dB24.8 dB20.1 dB100 ± 15 Ohm100 ± 15 Ohm30.0 dB
155 MHz25.2 dB/100m41.5 dB39.5 dB14.3 dB23.9 dB20.9 dB18.8 dB100 ± 22 Ohm100 ± 15 Ohm28.1 dB
200 MHz29.0 dB/100m39.8 dB37.8 dB8.8 dB21.7 dB18.7 dB18.0 dB100 ± 22 Ohm100 ± 15 Ohm27.0 dB
250 MHz32.8 dB/100m38.3 dB36.3 dB3.5 dB19.8 dB16.8 dB17.3 dB100 ± 32 Ohm100 ± 15 Ohm26.0 dB
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Rating.OperatingInstallationStorage
75°C-20°C To +75°C0°C To +50°C-20°C To +75°C
Bend Radius
Stationary Min.Installation Min.
1.0 in2.25 in
Max. Pull Tension: 25 lbs
Bulk Cable Weight: 44 lbs/1000ft

Standards and Compliance

Environmental Suitability: Plenum, Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2
NEC / UL Compliance: 800, CMP
CEC / C(UL) Compliance: CMP
ICEA Compliance: S-116-732-2013
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
NEMA Compliance: ANSI/NEMA WC-66
Data Category: Category 6
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)

Part Number

Non-Plenum Number: 1351A
Variants
Item #ColorPutup TypeLengthUPC
1352A D151000BlueReel1,000 ft612825112457
1352A 0081000GrayReel1,000 ft612825112471
1352A 0091000WhiteReel1,000 ft612825112488
1352A 0041000YellowReel1,000 ft612825112464

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Shield is Bonded to Jacket Inner Wall for Electrical Stability. Print Includes Descending Footage Markings from Max. Put-Up Length to 0.

History

Update and Revision: Revision Number: 0.418 Revision Date: 09-30-2020
Date: 2004-01-01
