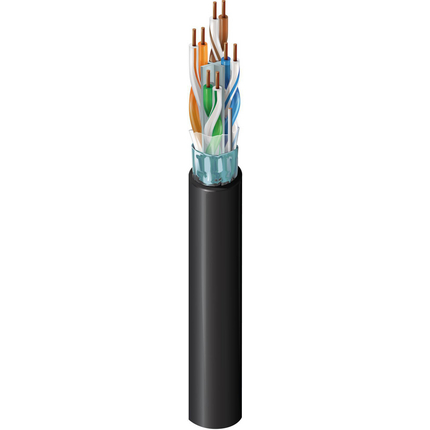

1351A - CAT6 Horizontal, 4pr, F/UTP, PVC Jkt, CMR

1351A-CAT6 Horizontal, 4pr, F/UTP,

CAT6 (350MHz), 4-Pair, F/UTP-foil shielded, Riser-CMR, Premise Horizontal cable, 23 AWG solid bare copper conductors, polyolefin insulation, polyester separator, overall Beldfoil® shield, PVC jacket

Product Overview

Environmental Space: Riser
Suitable Applications: Networking Horizontal Cable, 1000Base-T (Gigabit Ethernet), 100Base-T (Fast Ethernet), 10Base-T (Ethernet), 100BaseVG, ANYLAN, 155ATM, 622ATM, ANSI.X3.263 FDDI TP-PMD, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, 250 MHz Category 6

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
23SolidBC - Bare Copper4
Conductor Count: 8
Total Number of Pairs: 4
Conductor Size: 23 AWG
Insulation
Material
3 x PO - Polyolefin, 1 x FEP - Fluorinated Ethylene Propylene
Bonded-Pair: N/A
Color Chart
NumberColor
1White/Blue Stripe & Blue
2White/Orange Stripe & Orange
3White/Green Stripe & Green
4White/Brown Stripe & Brown
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper24Solid
Outer Jacket Material
MaterialNominal DiameterRipcordSeparator Material
PVC - Polyvinyl Chloride0.290 inNoPolyester Tape

Construction and Dimensions

Cabling
Filler
Patented Central X-spline

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. DCR Unbalance
93.8 Ohm/km3 %
Capacitance
Max. Capacitance UnbalanceNom.Mutual Capacitance
160 pF/100m14 pF/ft
Delay
Frequency [MHz]Max. DelayMax. Delay SkewNominal Velocity of Propagation (VP) [%]
100 MHz537.6 ns/100m45 ns/100m68 %
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted)Max./Min. Fitted ImpedanceMin. TCL [dB]Min. ELTCTL [dB]
1 MHz2.0 dB/100m74.3 dB72.3 dB70.3 dB67.8 dB64.8 dB20.0 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB35.0 dB
4 MHz3.8 dB/100m65.3 dB63.3 dB59.5 dB55.7 dB52.7 dB23.0 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB23.0 dB
8 MHz5.3 dB/100m60.8 dB58.8 dB53.4 dB49.7 dB46.7 dB24.5 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB16.9 dB
10 MHz6.0 dB/100m59.3 dB57.3 dB51.4 dB47.8 dB44.8 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm40.0 dB15.0 dB
16 MHz7.6 dB/100m56.3 dB54.3 dB46.7 dB43.7 dB40.7 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm38.0 dB10.9 dB
20 MHz8.5 dB/100m54.8 dB52.8 dB44.3 dB41.7 dB38.7 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm37.0 dB9.0 dB
25 MHz9.5 dB/100m53.3 dB51.3 dB41.8 dB39.8 dB36.8 dB24.3 dB100 ± 15 Ohm100 ± 15 Ohm36.0 dB7.0 dB
31.25 MHz10.7 dB/100m51.9 dB49.9 dB39.2 dB37.9 dB34.9 dB23.6 dB100 ± 15 Ohm100 ± 15 Ohm35.1 dB5.1 dB
62.5 MHz15.4 dB/100m47.4 dB45.4 dB30.0 dB31.8 dB28.8 dB21.5 dB100 ± 15 Ohm100 ± 15 Ohm32.0 dB
100 MHz19.8 dB/100m44.3 dB42.3 dB22.5 dB27.8 dB24.8 dB20.1 dB100 ± 15 Ohm100 ± 15 Ohm30.0 dB
155 MHz25.2 dB/100m41.5 dB39.5 dB14.3 dB23.9 dB20.9 dB18.8 dB100 ± 22 Ohm100 ± 15 Ohm28.1 dB
200 MHz29.0 dB/100m39.8 dB37.8 dB8.8 dB21.7 dB18.7 dB18.0 dB100 ± 22 Ohm100 ± 15 Ohm27.0 dB
250 MHz32.8 dB/100m38.3 dB36.3 dB3.5 dB19.8 dB16.8 dB17.3 dB100 ± 32 Ohm100 ± 15 Ohm26.0 dB
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temp Range: 0°C To +50°C
UL Temp Rating: 75°C
Storage Temp Range: -20°C To +75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 41 lbs/1000ft
Max Recommended Pulling Tension: 25 lbs
Min Bend Radius/Minor Axis: 1.0 in
Min Bend Radius/Installation: 2.25 in

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMR
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class E
CPR Euroclass: Eca
Data Category: Category 6
ANSI Compliance: S-116-732-2013 Category 6, ANSI/NEMA WC-66 Category 6
Telecommunications Standards: ANSI/TIA-568-C.2 Category 6
IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Third Party Performance Verification: Category 6

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Non-Halogenated: No
Suitability - Oil Resistance: No
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL 1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 1352A

Part Number

Variants
Item #ColorFootnote
1351A 0061000BlueC
1351A 0081000GrayC
1351A 0091000WhiteC
1351A 0041000YellowC
Footnote: C - CRATE REEL PUT-UP.
Patent: https://www.belden.com/resources/patents
Date: 2004-01-01
