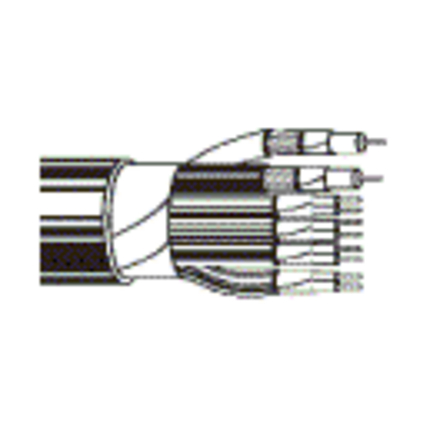

(4)Composites, 2 Coax 20 AWG BC, GIFPE insulation, TC braid 95% coverage, overall foil tape and 4 PR 22 AWG TC, PP insulation, bonded foil tape plus drain wire, overall CMR rating and PVC jacket.
| Suitable Applications: | Electronic News Gathering (ENG), Electronic Field Production (EFP), Analog Audio + Digital Video Composite Applications, 2V + 4A |
| RG Type: | 59 |
| Element | No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|---|
| Coax(es) | 2 | 20 AWG | Solid | 0.034 in | BC - Bare Copper |
| Pair(s) | 4 | 22 AWG | 7x30 | 0.0285 in | TC - Tinned Copper |
| Element | Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|
| Coax(es) | PE - Polyethylene (Foam) | 0.145 in (3.68 mm) | White and Numbered | |
| Pair(s) | PP - Polypropylene | 0.046 in (1.2 mm) | Black and Red and Numbered | |
| Brown, Red, Orange, Yellow | colors mentioned here is for inner Jacket |
| Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|
| Each Pair | Tape | Tri-Laminate (Alum+Poly+Alum) | 100% | 22 AWG (7x30) TC |
| Coax(es) | Braid | Tinned Copper (TC) | 93% | |
| Tape | Tape | Tri-Laminate (Alum+Poly+PVC) | 100% | 22 AWG (7x30) TC |
| Element | Material | Nom. Diameter |
|---|---|---|
| Coax(es) | PVC - Polyvinyl Chloride | 0.233 in (5.92 mm) |
| Outer Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|
| Tape | No Shield | Duofoil® | 100% |
| Braid | Tinned Copper (TC) | 95% | |
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% |
| No Shield |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.640 in |
| Overall Cable Diameter (Nominal): | 0.640 in |
| Frequency | Min. Return Loss |
|---|---|
| 5-850 MHz | 20 dB |
| 850-4500 MHz | 15 dB |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 3.6 MHz | 0.6 dB/100ft |
| 5 MHz | 0.63 dB/100ft |
| 7 MHz | 0.74 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 67.5 MHz | 2.05 dB/100ft |
| 71.5 MHz | 2.1 dB/100ft |
| 88.5 MHz | 2.2 dB/100ft |
| 100 MHz | 2.3 dB/100ft |
| 135 MHz | 2.7 dB/100ft |
| 143 MHz | 2.8 dB/100ft |
| 180 MHz | 3.1 dB/100ft |
| 270 MHz | 3.8 dB/100ft |
| 360 MHz | 4.4 dB/100ft |
| 540 MHz | 5.5 dB/100ft |
| 720 MHz | 6.4 dB/100ft |
| 750 MHz | 6.5 dB/100ft |
| 1000 MHz | 7.6 dB/100ft |
| 1500 MHz | 9.3 dB/100ft |
| 2000 MHz | 10.9 dB/100ft |
| 2250 MHz | 11.6 dB/100ft |
| 3000 MHz | 13.4 dB/100ft |
| 4500 MHz | 16.4 dB/100ft |
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Outer Shield DCR | Nom. Characteristic Impedance | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Coax(es) | 11.3 Ohm/1000ft | 13.93 Ohm/1000ft (45.70 Ohm/km) | 75 Ohm | 82% | 8 Amps per Conductor at 30ºC | |
| Pair(s) | 18.2 Ohm/1000ft (59.7 Ohm/km) | 14.3 Ohm/1000ft (46.9 Ohm/km) | 14.3 Ohm/1000ft (46.9 Ohm/km) | 45 Ohm | 66% | 1.96 Amps per Conductor at 30ºC |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 6.40 in (163 mm) | 6.40 in |
| Max. Pull Tension: | 182.78 lbs (82.908 kg) |
| Bulk Cable Weight: | 190 lbs/1000ft |
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire: | UL1666 Riser, FT4, IEEE 1202 FT4 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMR |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.466 Revision Date: 09-07-2025 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1347A B59500 | Black, Matte | Reel | 500 ft | 612825112358 | C |
| 1347A B591000 | Black, Matte | Reel | 1,000 ft | 612825112341 | C |
| Footnote: | C - CRATE REEL PUT-UP. |
