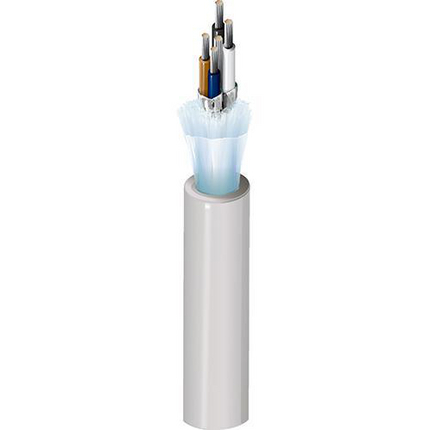

(4)DeviceBus® for ODVA DeviceNet™, 2 Pair 22+24AWG (154x44+105x44) Tinned Copper, PVC+PO Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, TPE Outer Jacket, CMG
| Suitable Applications: | harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | 154x44 | TC - Tinned Copper | 1 |
| 24 | 105x44 | TC - Tinned Copper | 1 |
| Conductor Count: | 4 |
| Element | Material | Nominal Wall Thickness |
|---|---|---|
| 22 AWG | PVC - Polyvinyl Chloride | 0.016 in |
| 24 AWG | PE - Polyethylene (Foam) | 0.026 in |
| Number | Color |
|---|---|
| 22 AWG Pair | Red & Black |
| 24 AWG Pair | Blue & White |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 22 | 26x36 |
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Tinned Copper (TC) | 65% |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| TPE - Thermoplastic Elastomer | 0.275 in | 0.036 in |
| Element | Max. Conductor DCR | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|---|
| 22 AWG | 17.5 Ohm/1000ft | 3.2 Ohm/1000ft | |
| 24 AWG | 28 Ohm/100m | 28.0 Ohm/1000ft |
| Element | Nom. Capacitance Conductor to Conductor |
|---|---|
| 24 AWG Pair(s) | |
| 12 pF/ft |
| Nominal Characteristic Impedance | Nominal Characteristic Impedance Description |
|---|---|
| 100 Ohm | 24 AWG Pair |
| 120 Ohm |
| Max. Delay | Max. Delay Description | Nominal Velocity of Propagation (VP) [%] | Nominal Velocity of Propagation (VP) Description |
|---|---|---|---|
| 1.36 ns/ft | 24 AWG Pair | 24 AWG Pair | |
| 75% |
| Element | Frequency [MHz] |
|---|---|
| 24 AWG Pair Only | 0.125 MHz |
| 0.5 MHz | |
| 1 MHz |
| Max. Recommended Current [A] |
|---|
| 5 Amps per Conductor at 25ºC |
| 5 Amps per Conductor at 25ºC (22 AWG) |
| UL Description | UL Voltage Rating |
|---|---|
| CL2, CMG | 300 V RMS |
| UL Temp Rating: | 75°C |
| Operating Temperature Range: | -30°C to +75°C |
| Oil Resistance: | Yes |
| Bulk Cable Weight: | 41 lbs/1000ft |
| Max. Pull Tension: | 65 lbs |
| Min. Bend Radius/Minor Axis: | 2.75 in |
| NEC Articles: | Article 800 |
| NEC/(UL) Compliance: | CL2, CMG |
| CSA AWM Compliance: | AWM I/II A |
| CPR Euroclass: | Eca |
| Other Specification: | ODVA Class 2 Thin |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Oil Resistance: | Yes |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| UL Flammability: | UL1685 FT4 Loading |
| IEC Flammability: | IEC 60332-1-2 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1346F T5U1000 | Gray T5U | Reel | 1,000 ft | 612825112334 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Hi-Flex. Thin. Meter marks on jacket to aid users in installation. |
| Update and Revision: | Revision Number: 0.562 Revision Date: 02-03-2025 |
