133109A - RS485, 4 Pr #22 Str TC, PE Ins, OS+TC Brd, PVC Jkt, SIA Armor, PVC Jkt, CM, PLTC

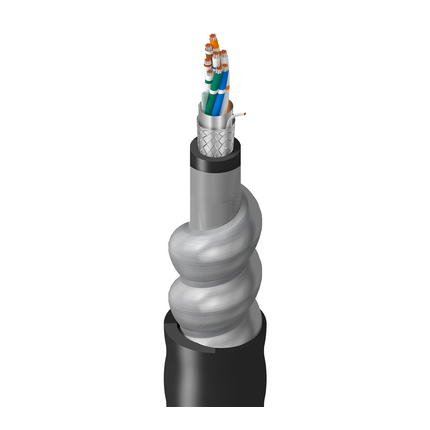

RS-485, 4 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Inner Jacket, Steel Interlock Armor, PVC Outer Jacket, CM, PLTC

Suitable Applications: exposure to rodent, crush, or cut through force, burial, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.
Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)4227x30TC - Tinned Copper
Insulation
ElementMaterialThickness [in.]Color CodeNotes
Pair(s)PE - Polyethylene (Foam)0.023White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White StripeHDPE
Outer Shield Material
Shield TypeMaterialCoverageDrainwire Type
Tape + BraidBi-Laminate (Alum+Poly) + Tinned Copper (TC)100% + 65%22 AWG (7x30) TC
Inner Jacket Material
MaterialNom. Diameter
PVC - Polyvinyl Chloride0.448 in
Outer Jacket Material
MaterialThicknessNom. Diameter
PVC - Polyvinyl Chloride0.050 in0.744 in
Cable Diameter (Nominal): 0.744 in
Electricals
ElementCharacteristic ImpedenceNom. Velocity of Prop.
Pair(s)120 Ohm78%
High Frequency (Nominal/Typical)
Element
Pair(s)
Voltage
UL Voltage Rating
300 V (CM, PLTC)
Table Notes: -40C
Environmental Suitability: Sunlight Resistance
NEC / UL Compliance: Article 725, Article 800, CM, PLTC
CEC / C(UL) Compliance: CMG HLBCD
Update and Revision: Revision Number: 0.37 Revision Date: 09-30-2020
No accessories are available for this product
