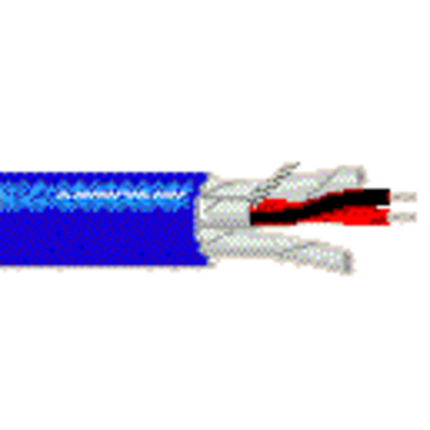

1326A - Security & Sound, 3 Pair 22 AWG BC, Individually Shielded, CMP
Security & Commercial Audio Cable, 3 Pair 22 AWG stranded bare copper pairs with Flamarrest® insulation, individually Beldfoil® shields, Plenum-CMP, Flamarrest® jacket
Product Overview
| Environmental Space: | Indoor - Plenum |
| Suitable Applications: | Sound and Audio Systems, Intercom and PA Systems, Security Systems, Access Control Systems, Power-Limited Control Systems |
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 3 |
| Conductor Count: | 6 |
| Total Number of Pairs: | 3 |
| Conductor Size: | 22 AWG |
Insulation
| Material | Material Trade Name |
|---|---|
| FR PVC - Flame Retardant Polyvinyl Chloride | Flamarrest® |
Color Chart
| Number | Color |
|---|---|
| 1 | Black & Red |
| 2 | Black & Green |
| 3 | Black & White |
Inner Shield Material
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Aluminum Foil-Polyester Tape | Beldfoil® (Z-Fold®) | 100 % | TC - Tinned Copper | 24 | 7x32 mm |
| TC - Tinned Copper |
Outer Shield Material
| Material |
|---|
| Unshielded |
Outer Jacket Material
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| FR-PVC - Flame Retardant Polyvinyl Chloride | Flamarrest® | 0.19 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor Loop DCR | Nominal Inner Shield DCR |
|---|---|
| 14.7 Ohm/1000ft | 8.6 Ohm/1000ft |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 34 pF/ft |
| Shielding: | Individually Foiled + No Overall |
Current
| Max. Recommended Current [A] |
|---|
| 2.8 Amps per conductor @ 25°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| Operating Temp Range: | 0°C To +75°C |
Mechanical Characteristics
| Bulk Cable Weight: | 26 lbs/1000ft |
| Max Recommended Pulling Tension: | 60 lbs |
| Min Bend Radius/Minor Axis: | 1.9 in |
Standards
| NEC/(UL) Specification: | CMP |
| CEC/C(UL) Specification: | CMP |
| CPR Euroclass: | Eca |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2006-06-01 |
| CA Prop 65 (CJ for Wire & Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
Suitability
| Suitability - Indoor: | Yes |
Flammability, LS0H, Toxicity Testing
| C(UL) Flammability: | FT6 |
| UL Flammability: | UL910 Steiner Tunnel |
| UL voltage rating: | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N): | Yes |
Part Number
| Non-Plenum Number: | 8777 |
Variants
| Item # | Color | Footnote |
|---|---|---|
| 1326A D151000 | Blue | C |
| 1326A D15500 | Blue | C |
| 1326A 0091000 | White | |
| 1326A 009500 | White |
| Footnote: | C - CRATE REEL PUT-UP. |
