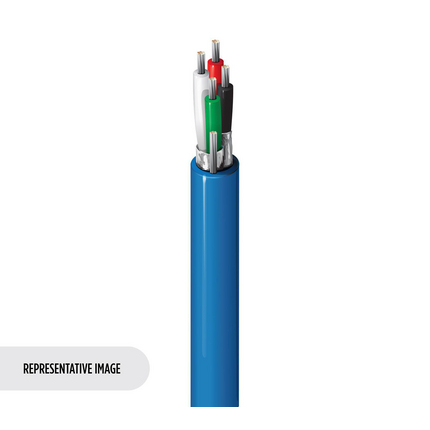

1325R - Security & Commercial Audio, 2 Pair 22 AWG BC, CMR


Security & Commercial Audio Cable, 2 pair 22 AWG stranded (7x30) bare copper pairs with Polyolefin insulation, individually Beldfoil® shield, Riser-CMR, PVC jacket

Product Overview

Suitable Applications: Security & Commercial Audio

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
227x30TC - Tinned Copper2
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Material
PP - Polypropylene
Color Chart
Color
Black & Red
White & Green
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAlum / PolyBeldfoil® (Z-Fold®)100 %TC - Tinned Copper24
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.154 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Inner Shield DCR
14.7 Ohm/1000ft15 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
34 pF/ft
Current
Max. Recommended Current [A]
2.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 20 lbs/1000ft
Max Recommended Pulling Tension: 27 lbs
Min Bend Radius/Minor Axis: 1.750 in

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMR

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU CE Mark: Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): N
Plenum Number: 1325A

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1325R 0101000BlackReel1,000 ft612825111955
1325R 0091000WhiteReel1,000 ft612825111948

History

Update and Revision: Revision Number: 0.211 Revision Date: 04-28-2020
