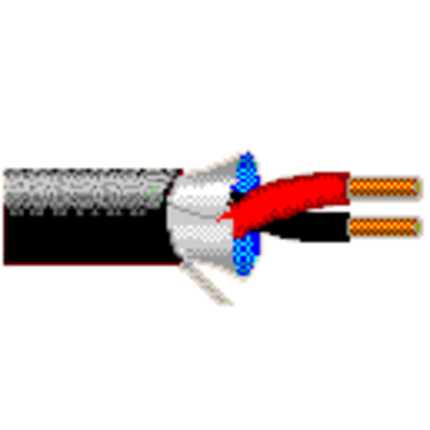

(13)1321SB - Fire Alarm, #16-2c, LSZH Jacket, CMG-LS, FPLR, Shipboard ABS Type Approved
16 AWG solid bare copper conductors, ceramifiable silicone insulation, Beldfoil® shield, drain wire, LSZH jacket.
Product Overview
| Environmental Space: | Indoor - Riser |
| Suitable Applications: | ABS Type Approved, Fire Alarm, Shipboard, FPLR, CMG-LS, IEEE 45 clause 23, IEC 60092-376 clause 17, 60092-351, 60754-1, 60754-2, 61034, UL1685 FT4 Loading, Limited Smoke, IEC, 60332-3-22 (Category A), 60332-1, 60331-23 |
Physical Characteristics (Overall)
| AWG | Stranding | Material | Nominal Diameter | No. of Conductors |
|---|---|---|---|---|
| 16 | Solid | BC - Bare Copper | 0.0519 in | 2 |
| Conductor Count: | 2 |
| Conductor Size: | 16 AWG |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| Silicone Rubber | 0.12 in | 0.034 in |
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Aluminum/Polyester | Beldfoil® | 100 % | TC - Tinned Copper | 0.036 in | 20 | 7x28 |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen | 0.337 in | 0.045 in |
| 0.337 in |
Electrical Characteristics
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR |
|---|---|---|
| 4 Ohm/1000ft | 4 Ohm/1000ft | 8.2 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 31 pF/ft | 52 pF/ft |
| UL Voltage Rating |
|---|
| 300 V RMS |
Temperature Range
| UL Temp Rating: | 105°C |
| Operating Temp Range: | -20°C To +105°C |
Mechanical Characteristics
| Bulk Cable Weight: | 55 lbs/1000ft |
| Max Recommended Pulling Tension: | 62.4 lbs |
| Min Bend Radius/Minor Axis: | 3.5 in |
Standards
| NEC Articles: | 760, 800 |
| NEC/(UL) Specification: | CMG-LS, FPLR |
| CEC/C(UL) Specification: | CMG |
| IEEE Specification: | Std. 45 clause 23 |
| Other Specification: | UL444, UL1424, ABS Type Approval Certificate 06-HS184641F |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2006-08-07 |
| CA Prop 65 (CJ for Wire & Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
Suitability
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: | UL1685 FT4 Loading, Limited Smoke |
| CSA Flammability: | FT4 |
| ISO/IEC Flammability: | 60332-1, 60331-23, 60332-3-22 (Category A) |
| IEEE Flammability: | 1202 |
| UL voltage rating: | 300 V RMS |
Plenum/Non-Plenum
| Plenum (Y/N): | No |
Part Number
| Item # | Color | Footnote |
|---|---|---|
| 1321SB 0101000 | Black | C |
| 1321SB 0021000 | Red | C |
| 1321SB 0021000 | Red |
| Footnote: | C - CRATE REEL PUT-UP. |
