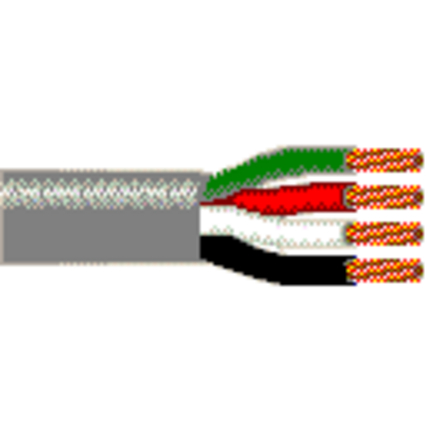

1308A - Speaker Cable, 4 Conductor 16 AWG, BC, Unshielded, CM


Speaker Cable, CL3 & CM-Rated, 4-16 AWG stranded high conductivity bare copper conductors with polyolefin insulation, PVC jacket with sequential footage marking every two feet

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
1665x34High Conductivity Bare Copper0.058 in4
Conductor Count: 2
Insulation
MaterialNominal Diameter
PE - Polyethylene0.083 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.27 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
19.9 pF/ft
Inductance
Nominal Inductance
0.16 µH/ft
Delay
Nominal Velocity of Propagation (VP) [%]
66 %
Current
Max. Recommended Current [A]
9 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 50 lbs/1000ft
Max Recommended Pulling Tension: 130 lbs
Min Bend Radius/Minor Axis: 2.75 in

Standards

NEC/(UL) Specification: CL3, CM
CEC/C(UL) Specification: CM
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU RoHS Compliance Date (yyyy-mm-dd): 2005-07-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1581 Vertical Flame and FT-1 Flame Test
CSA Flammability: FT1
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6202UE

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1308A 010U500BlackUnReel500 ft612825111368
1308A 0101000BlackReel1,000 ft612825111375
1308A 006U500Blue, LightUnReel500 ft612825111337
1308A 008U500GrayUnReel500 ft612825111344
1308A 0081000GrayReel1,000 ft612825111351
1308A N3UU500Green, MilUnReel500 ft612825111320
1308A 1SLU500White 1SLUnReel500 ft612825111382
1308A 1SL1000White 1SLReel1,000 ft612825111399
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.271 Revision Date: 04-28-2020
Date: 2005-07-01
