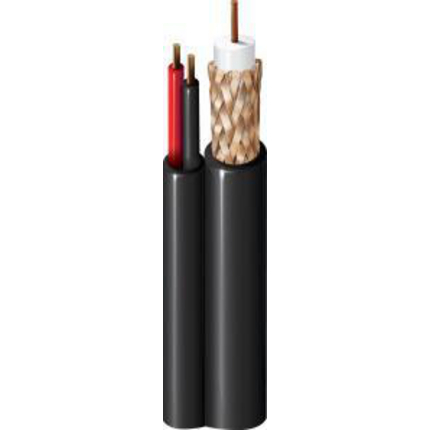

(4)Composite Shipboard, 18 AWG Coax BC, BC Braid Shield 95% coverage, FPE insulation for video and 1 PR 18 AWG BC, stranded (7x26), PP insulation for power, overall CMG-LS rating, LSZH jacket.
| Suitable Applications: | Surveillance, CCTV Camera, PTZ (Pan-Tilt-Zoom), Shipboard, Low Smoke |
| AWG | Stranding | Material | Nominal Diameter | No. of Conductors | No. of Coax |
|---|---|---|---|---|---|
| 18 | Solid | BC - Bare Copper | 0.04 in | 1 | |
| 18 | 7x26 | BC - Bare Copper | 0.046 in | 2 |
| Conductor Count: | 3 |
| Material | Nominal Diameter |
|---|---|
| PE - Polyethylene (Foam) | 0.18 in |
| PP - Polypropylene | 0.058 in |
| Number | Color |
|---|---|
| 1 | Black and Red |
| Type | Material | Coverage [%] |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
| Type | Layer | Material | Coverage [%] |
|---|---|---|---|
| Braid | 1 | Bare Copper (BC) | 95% |
| Material | Nominal Diameter |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.275x0.514 in |
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Inner Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 6.4 Ohm/1000ft | 6.4 Ohm/1000ft | 3.1 Ohm/1000ft | 3.1 Ohm/1000ft |
| 6.4 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 24 pF/ft | 16.3 pF/ft |
| Operating Voltage: | 300 V RMS |
| Nominal Inductance |
|---|
| 0.097 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.2 dB/100ft |
| 5 MHz | 0.45 dB/100ft |
| 10 MHz | 0.64 dB/100ft |
| 50 MHz | 1.46 dB/100ft |
| 100 MHz | 2.1 dB/100ft |
| 200 MHz | 3.0 dB/100ft |
| 400 MHz | 4.3 dB/100ft |
| 700 MHz | 5.8 dB/100ft |
| 900 MHz | 6.7 dB/100ft |
| 1000 MHz | 7.1 dB/100ft |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.24 ns/ft | 82% |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Operating Temperature Range: | -30°C To +75°C |
| Bulk Cable Weight: | 67 lbs/1000ft |
| Max. Pull Tension: | 114 lbs |
| Min. Bend Radius/Minor Axis: | 2.75 in |
| NEC Articles: | Article 800 |
| NEC/(UL) Compliance: | CMG-ST1 |
| CEC/C(UL) Compliance: | CMG-ST1 |
| CPR Euroclass: | Fca |
| IEEE Compliance: | Std. 45 Clause 23 |
| RG Type: | 6 |
| Environmental Space: | Outdoor - Aerial |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Aerial: | Yes - Black only, when supported by messenger wire |
| Suitability - Burial: | No |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes - Black only |
| Suitability - Sunlight Resistance: | No |
| UL Flammability: | UL1685 FT4 Loading, Limited Smoke |
| CSA Flammability: | FT4 |
| IEC Flammability: | IEC 60332-1-2, IEC 60332-3-22 |
| IEEE Flammability: | IEEE 1202 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 1306SB 010500 | Black | Reel | 500 ft | 612825111238 |
| 1306SB 0101000 | Black | Reel | 1,000 ft | 612825111221 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Coax jacket diameter: .275 in, Pair jacket diameter: .204 in |
| Update and Revision: | Revision Number: 0.309 Revision Date: 02-03-2025 |
