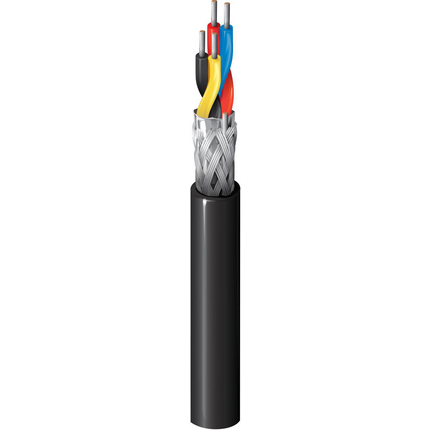

1269A - POS Cable, #22-2pr, TC, FEP, O/A Foil+90% TC Braid, FEP Jkt, CMP


Computer POS Cable, 22 AWG solid tinned copper conductors, solid FEP insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (90% coverage), 22 AWG solid tinned copper drain wire, FEP jacket, plenum rated

Product Overview

Suitable Applications: point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
22SolidTC - Tinned Copper2
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.016 in
Color Chart
NumberColor
1Red & Blue
2Black & Yellow
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Tape1Bi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper22Solid
Braid2Tinned Copper (TC)90%
Table Notes: Polyester Tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.24 in0.017 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
16.5 Ohm/1000ft2.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
15.5 pF/ft27 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
0.3 MHz0.4 dB/100m
0.6 MHz0.53 dB/100m
1 MHz0.65 dB/100m
1.5 MHz0.78 dB/100m
Delay
Max. Delay SkewNominal Delay
69.5 ns/100m1.46 ns/ft
High Freq
Frequency [MHz]
0.3 MHz
0.6 MHz
1 MHz
1.5 MHz
Current
Max. Recommended Current [A]
2.3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 44 lbs/1000ft
Max. Pull Tension: 88 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 1268A
Variants
Item #ColorUPC
1269A 0101000Black612825110064
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.259 Revision Date: 09-30-2020
Date: 2005-04-01
