1217B - Audio Snake Cable, #22-4pr, TC, Indiv. Shielded

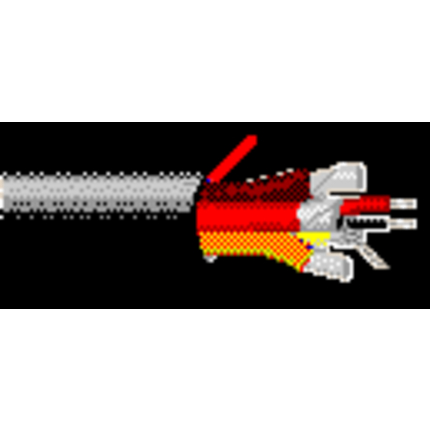

Audio Snake Cable, 4-22 AWG tinned copper pairs, Datalene® insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets so both strip simulteaneously, flexible PVC jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Pairs
227x30TC - Tinned Copper0.03 in4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
PE - Polyethylene (Foam)Datalene®0.06 in0.015 in
Color Chart
NumberColor
1Brown
2Red
3Orange
4Yellow
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire DiameterDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper0.03 mm227x30
Inner Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.153 in0.015 in
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.458 in0.040 inYes

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Conductor DCR Conductor Resistance
10.6 Ohm/1000ft15 Ohm/1000ft15 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
19 pF/ft35 pF/ft
Inductance
Nominal Inductance
0.2 µH/ft
Current
Max. Recommended Current [A]
2 Amps per Conductor at 20ºC
Voltage
Non-UL Voltage RatingVoltage Rating [V]
150 V RMS300 V RMS
300 V RMS

Temperature Range

Non-UL Temp Rating: 60°C
Operating Temp Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 99 lbs/1000ft
Max. Pull Tension: 109 lbs
Min Bend Radius/Minor Axis: 4.58 in

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1217B B59500Black, MatteReel500 ft612825108948
1217B B591000Black, MatteReel1,000 ft612825108931
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: Datalene® insulation features include a low dielectric constant and a low dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight. Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment.

History

Update and Revision: Revision Number: 0.276 Revision Date: 08-25-2020
Date: 2004-01-01
