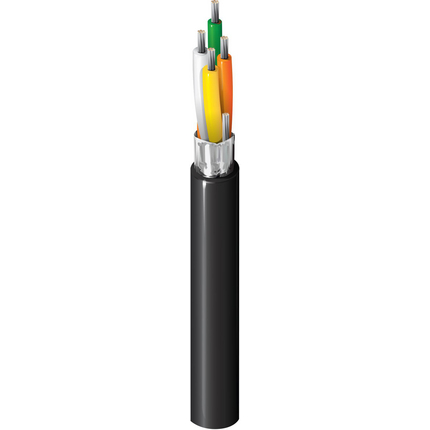

1211A - Instrument Medical Interconnect, #26-4c, TC, PVC, O/A Foil, PVC Jkt, CL2X


Computer, Instrument & Medical Interconnect, 26 AWG stranded (7x34) tinned copper conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded tinned copper drain wire, PVC jacket.

Product Overview

Suitable Applications: for use with Molex SEMMCONN/AMP SDL connectors; computer communications; medical electronics interconnects; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
267x34TC - Tinned Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.015 in
Color Chart
NumberColor
1White
2Yellow
3Orange
4Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeTri-Laminate (Alum+Poly+Alum)Duofoil®100%TC - Tinned Copper267x34
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.195 in0.036 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
37.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
26 pF/ft
Delay
Max. Delay Skew
60 ns/100m
Current
Max. Recommended Current [A]
1.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 21 lbs/1000ft
Max. Pull Tension: 18 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC/(UL) Compliance: CL2X
UL AWM Style Compliance: 2464 (300 V 80°C)

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
1211A 0101000Black612825108443
1211A 010500Black612825108450
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: AMP is a registered trademark of AMP, Inc.

History

Update and Revision: Revision Number: 0.288 Revision Date: 09-30-2020
Date: 2005-10-01
