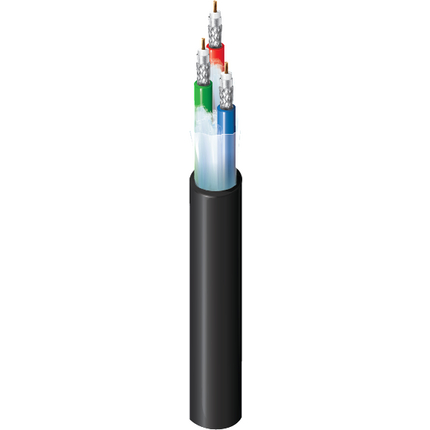

(109)RGB Video Coax, 3-26 AWG Stranded (7x34) Bare Copper Conductors, Foam PE Insulation, Duofoil® + 95% Tinned Copper Interlocked Braid, Inner PVC jackets, Overall PVC Jacket, CM
| Suitable Applications: | RGB Projectors, LCD Projectors, Video Distribution, Component Video, Graphic Displays, Special Effects Editing, Animation, Video Post Production, Home Theater, Offices, Boardrooms, Auditoriums, Teleconferencing, Theaters |
| RG Type: | Mini 59 |
| Element | No. of Elements | Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|---|---|
| Coax(es) | 3 | 26 AWG | 7x34 | 0.019 in | BC - Bare Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 0.089 in (2.3 mm) | Red, Blue, Green |
| Layer | Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| 2 | Braid | Tinned Copper (TC) | 95% |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.146 in (3.71 mm) |
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.388 in (9.86 mm) |
| Frequency | Min. Return Loss |
|---|---|
| 10-40 MHz | 25 dB |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.6 dB/100ft |
| 5 MHz | 1.3 dB/100ft |
| 10 MHz | 1.8 dB/100ft |
| 30 MHz | 3.1 dB/100ft |
| 50 MHz | 3.9 dB/100ft |
| 100 MHz | 5.4 dB/100ft |
| 200 MHz | 7.5 dB/100ft |
| 400 MHz | 10.4 dB/100ft |
| 700 MHz | 13.5 dB/100ft |
| 900 MHz | 15.2 dB/100ft |
| 1000 MHz | 15.9 dB/100ft |
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 41.5 Ohm/1000ft | 7.7 Ohm/1000ft (25 Ohm/km) | 17.3 pF/ft (56.8 pF/m) | 75 Ohm | 78% |
| UL Voltage Rating |
|---|
| 300 V RMS, 300 V RMS (CM) |
| Electrical Characteristics Notes: | 30 V RMS (UL AWM Style 1354), 300 V RMS (CM) |
| UL Temperature | Operating |
|---|---|
| 60°C | -40°C To +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3.88 in (98.6 mm) | 3.88 in (98.6 mm) |
| Max. Pull Tension: | 103 lbs (46.7 kg) |
| Bulk Cable Weight: | 70 lbs/1000ft |
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire: | UL1685 UL Loading |
| NEC / UL Compliance: | Article 800, CM |
| AWM Compliance: | AWM 1354 (30 V 60°C) (each coax), AWM 2668 (overall) |
| CEC / C(UL) Compliance: | CM |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.440 Revision Date: 04-29-2024 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1164B 010500 | Black | Reel | 500 ft | 612825355052 | C |
| 1164B 0101000 | Black | Reel | 1,000 ft | 612825355069 | C |
