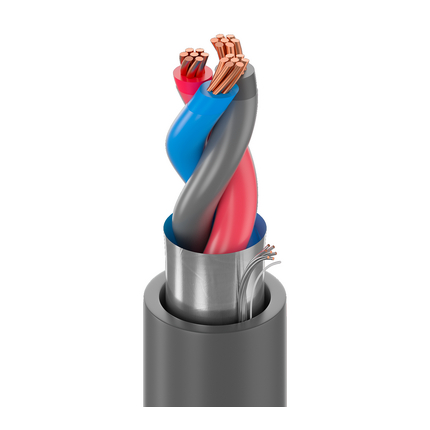

(10)UL Instrumentation, 1 Triad 18AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR
| Suitable Applications: | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners |
| Element | Number of Element | AWG | Stranding | Material |
|---|---|---|---|---|
| Triad(s) | 1 | 18 | 7x26 | BC - Bare Copper |
| Element | Material | Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Triad(s) | PVC/Nylon - Polyvinyl Chloride + Nylon | 0.016 in | 0.088 | Black, Red, Blue |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7x28) TC |
| Material | Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.047 in | 0.290 in | Yes |
| Cable Diameter (Nominal): | 0.290 in |
| Element | Nom. Conductor DCR | Max. Current |
|---|---|---|
| Triad(s) | 5.86 Ohm/1000ft | 6 Amps per conductor @ 30C |
| Nom Outer Shield DCR: | 7.46 Ohm/1000ft |
| UL Voltage Rating |
|---|
| 600 V (TC-ER), 150 V (NPLF) |
| UL Rating | Operating |
|---|---|
| 90°C Dry, 90°C Wet | -30C to 90C Dry, 75C wet |
| Stationary Min. | Installation Min. |
|---|---|
| 2.9 in | 3.5 in |
| Max. Pull Tension: | 81 lbs |
| Bulk Cable Weight: | 52 lbs/1000ft |
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Fire Resistance: | UL1685 (FT4 Loading), FT4, 1202 |
| NEC / UL Compliance: | Article 336, Article 760, NPLF, TC-ER |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | ICEA S-73-532, S-61-402 |
| Update and Revision: | Revision Number: 0.379 Revision Date: 10-20-2020 |
