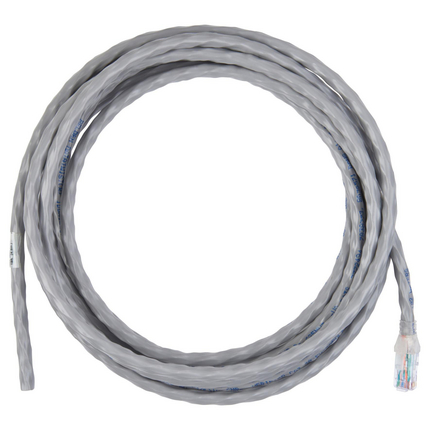

10GX UTP CMR PIGTAILS - 10GX UTP CMR Pigtails

10GX UTP CMR PIGTAILS-10GX UTP CMR Pigta

10GX UTP CMR Pigtails

Product Overview

Environmental Space: Riser
Suitable Applications: IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Conductor Size: 24 AWG
Overall Nominal Diameter: 0.295 in
Packaging: Individually packaged in a clear plastic bag.

Connectors

Materials
DescriptionMaterialColor
BootElastomerTranslucent
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 6A
Telecommunications Standards: Category 6A - TIA 568-C.2, Class EA - ISO/IEC 11801:2002 Ed.2 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: 10GX Modular Jacks and Couplers, 10GX Patch Panels, 10GX IDC Blocks
Variants
Item #ColorLength
CA31306100Blue100 ft
CA31306075Blue75 ft
CA31306060Blue60 ft
CA31306050Blue50 ft
CA31306035Blue35 ft
CA31306030Blue30 ft
CA31306025Blue25 ft
CA31306020Blue20 ft
CA31306015Blue15 ft
CA31206100Blue100 ft
CA31206075Blue75 ft
CA31206050Blue50 ft
CA31206035Blue35 ft
CA31206025Blue25 ft
CA31206020Blue20 ft
CA31206004Blue4 ft
CA31308100Gray100 ft
CA31308075Gray75 ft
CA31308065Gray65 ft
CA31308050Gray50 ft
CA31308040Gray40 ft
CA31308035Gray35 ft
CA31308030Gray30 ft
CA31308025Gray25 ft
CA31308020Gray20 ft
CA31308015Gray15 ft
CA31208075Gray75 ft
CA31208050Gray50 ft
CA31208065Gray65 ft
CA31208035Gray35 ft
CA31208025Gray25 ft
CA31208020Gray20 ft
CA31208015Gray15 ft
CA31208100Gray100 ft
CA31208007Gray7 ft
CA31205025Green25 ft
CA31205035Green35 ft
CA31309100White100 ft
CA31309007White7 ft
CA31308007White7 ft
CA31309075White75 ft
CA31309050White50 ft
CA31309035White35 ft
CA31309025White25 ft
CA31309020White20 ft
CA31309015White15 ft
CA31209100White100 ft
CA31209010White10 ft
CA31209075White75 ft
CA31209050White50 ft
CA31209035White35 ft
CA31209025White25 ft
CA31209020White20 ft
CA31209015White15 ft

Notes

Labeling: Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length.
Date: 2006-01-01
Belden-Copper-Catalog-2016.pdf
No accessories are available for this product
