(13)10GX UTP CMR BONDED PIGTAILS - 10GX UTP CMR Bonded Pigtails

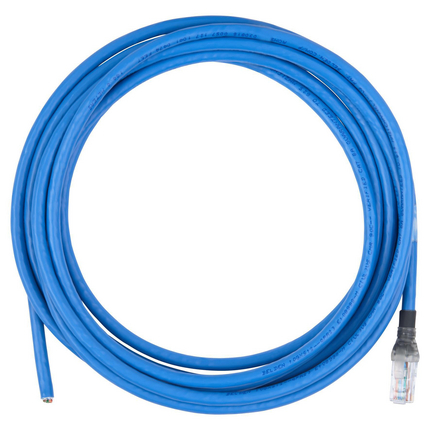

10GX UTP CMR Bonded Pigtails
Product Overview
| Environmental Space: | Riser |
| Suitable Applications: | IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T |
Physical Characteristics (Overall)
| Total Number of Pairs: | 4 |
| Conductor Size: | 24 AWG |
| Overall Nominal Diameter: | 0.285 in |
| Packaging: | Individually packaged in a clear plastic bag. |
Connectors
| Description | Material | Color |
|---|---|---|
| Boot | Elastomer | Translucent |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
Electrical Characteristics
| Dielectric Strength: | 1,000 V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
Temperature Range
| Installation Temp Range: | -10°C To +60°C |
| Storage Temp Range: | -40°C To +70°C |
| Operating Temp Range: | -10°C To +60°C |
Mechanical Characteristics
| Min Bend Radius (Overall Cable): | 1.040 in |
| Plug /Jack Compatibility: | RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
Standards
| UL Rating: | Riser |
| Data Category: | Category 6A |
| Telecommunications Standards: | Category 6A - TIA 568-C.2, Class EA - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS): | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2006-01-01 |
| MII Order #39 (China RoHS): | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing: | ACA, c(UL)us Listed |
Part Number
| Related Parts: | 10GX Modular Jacks and Couplers, 10GX Patch Panels, 10GX IDC Blocks |
| Item # | Color | Length |
|---|---|---|
| CA21300050 | Black | 50 ft |
| CA21300035 | Black | 35 ft |
| CA21300025 | Black | 25 ft |
| CA21300015 | Black | 15 ft |
| CA21306050 | Blue | 50 ft |
| CA21306035 | Blue | 35 ft |
| CA21306025 | Blue | 25 ft |
| CA21306015 | Blue | 15 ft |
| CA21206225 | Blue | 225 ft |
| CA21206120 | Blue | 120 ft |
| CA21206100 | Blue | 100 ft |
| CA21206055 | Blue | 55 ft |
| CA21308100 | Gray | 100 ft |
| CA21308050 | Gray | 50 ft |
| CA21308035 | Gray | 35 ft |
| CA21308025 | Gray | 25 ft |
| CA21308015 | Gray | 15 ft |
| CA21208325 | Gray | 325 ft |
| CA21208295 | Gray | 295 ft |
| CA21208250 | Gray | 250 ft |
| CA21208200 | Gray | 200 ft |
| CA21208165 | Gray | 165 ft |
| CA21208100 | Gray | 100 ft |
| CA21208065 | Gray | 65 ft |
| CA21208035 | Gray | 35 ft |
| CA21208025 | Gray | 25 ft |
| CA21208015 | Gray | 15 ft |
| CA21208010 | Gray | 10 ft |
| CA21203100 | Orange | 100 ft |
| CA21203015 | Orange | 15 ft |
| CA21309050 | White | 50 ft |
| CA21309035 | White | 35 ft |
| CA21309025 | White | 25 ft |
| CA21309015 | White | 15 ft |
Notes
| Labeling: | Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length |
