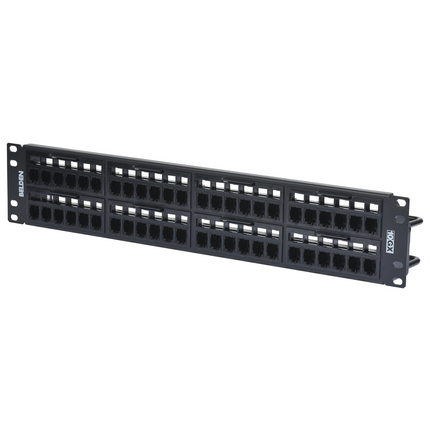

10GX REVConnect Cpl PP 48 2U - 1RVACPF2U48-10GX REVConnect Coupler Patch Panel 48 Port 2U, UTP


10GX REVConnect Pre-Loaded Coupler Patch Panel, 48-port, 2U

Product Overview

Suitable Applications: 10GX Systems, TIA Category 6A, ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Height: 3.470 in
Width: 19.000 in
Depth: 2.000 in
Port Count: 48 Port
Front Connection: Flush
Packaging: Individually packaged in a cardboard box.
Weight: 3.680 lbs

Connectors

Materials
DescriptionMaterial
PanelSteel

Construction and Dimensions

Max Capacity: 48 connectors (patch panel is pre-loaded)

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60Hz for 1 minute
Current Rating: 1.300 A
Insulation Resistance: 500 M-Ohm Minimum
Termination Resistance: 2.5 mOhm

Temperature Range

Installation Temperature Range: -10°C To +60°C
Storage Temperature Range: -40°C To +70°C
Operating Temperature Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: REVConnect
Termination Type: Universal T568A/B

Standards

UL Rating: UL94 V-0
Data Category: Category 6A
TIA/EIA Compliance: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU Directive 2011/65/EU (RoHS 2): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Related Part Numbers

Related Parts: 10GX REVConnect Modular Couplers, 10GX RevConnect Cords
Variants
Item #ColorPut-Up TypeUPC
RVACPF2U48BKBlack2U611589247474

Product Notes

Included Parts: 48 10GX REVConnect Couplers, Black; 50 REVConnect Cores; 8 Clear Windows; 2 Rear Cable Management Bar; 4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 4 Frames; 1 Installation Guide
Notes: For proper installation refer to Installation Guide PX106520 included with the product or visit our web site at http://www.belden.com

History

Update and Revision: Revision Number: 0.63 Revision Date: 11-19-2024
