10GX REVConnect Angled PP 24P - 10GX REVConnect Angled Patch Panel 24 Port

10GX REVConnect Angled PP 24P-10GX REVCo

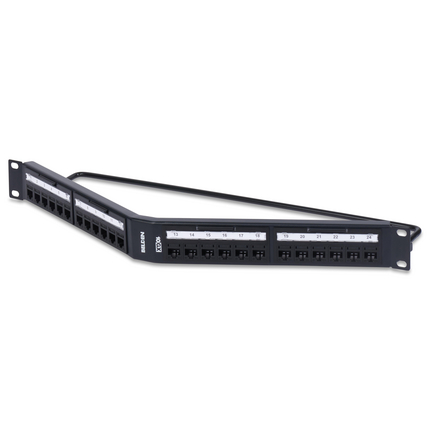

10GX REVConnect Patch Panel, Angled, 24-Port, 1U (Preloaded)

Product Overview

Environmental Space: Indoor
Suitable Applications: 10GX Systems, TIA Category 6A, ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Height: 1.73 in
Width: 19.000 in
Depth: 5.830 in
Port Count: 24 Port
Front Connection: Angled
Packaging: Individually packaged in a cardboard box.
Weight: 2.045 lbs

Connectors

Materials
DescriptionMaterialColor
PanelSteelBlack/White
FramePC/ABSBlack/White
Management BarSteelBlack
Clear WindowPolycarbonateTransparent

Construction and Dimensions

Max Capacity: 24 connectors (preloaded)

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
Current Rating: 1.300 A
Insulation Resistance: 500 M-Ohm Minimum
Termination Resistance: 2.5 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: KeyConnect
Tool Compatibility: REVConnect Termination Tool (RVUTT01)
Plug /Jack Compatibility: RJ45
Cable/Connector Retention: 15 lbs
Connector/Hardware Retention: 20 lbs
Plug/Connector Retention: 11.250 lbs

Standards

UL Rating: UL94 V-0
Data Category: Category 6A
Telecommunications Standards: Category 6A - TIA 568.C.2, Category 6A - ISO/IEC 11801:2002 Ed.2
IEEE Specification: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
Other Standards: FCC part 68, Subpart F, IEC 60603-7, UL 1863

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: 10GX REVConnect Modular Jacks, 10GX Modular Cords
Variants
Item #Color
RVAPPA1U24BKBlack
RV5PPA1U24BKBlack
RV5PPA2U48BKBlack
RV5PPF1U24BKBlack
RV5PPF2U48BKBlack
RV6PPA1U24BKBlack
RV6PPA2U48BKBlack
RV6PPF1U24BKBlack
RV6PPF2U48BKBlack
RVAPPA2U48BKBlack
RV6PPA2U48WHBlack, White
RVAPPA1U24WHWhite
RV5PPA1U24WHWhite
RV5PPA2U48WHWhite
RV5PPF1U24WHWhite
RV5PPF2U48WHWhite
RV6PPA1U24WHWhite
RV6PPF1U24WHWhite
RV6PPF2U48WHWhite
RVAPPA2U48WHWhite
RVAPPF1U24WHWhite
RVAPPF2U48WHWhite

Product Notes

Included Parts: 24 10GX REVConnect Jacks Black;25 REVConnect Cable Managers and Term;4 Clear Windows;1 Rear Cable Management Bar;4 Screws (10x32); 4 Screws (12x24); 2 Velcro Straps; 4 Frames; 1 Installation Guide
