(109)CAT6A KeyConnect Jacks are available in several colors.
| Suitable Applications: | IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T |

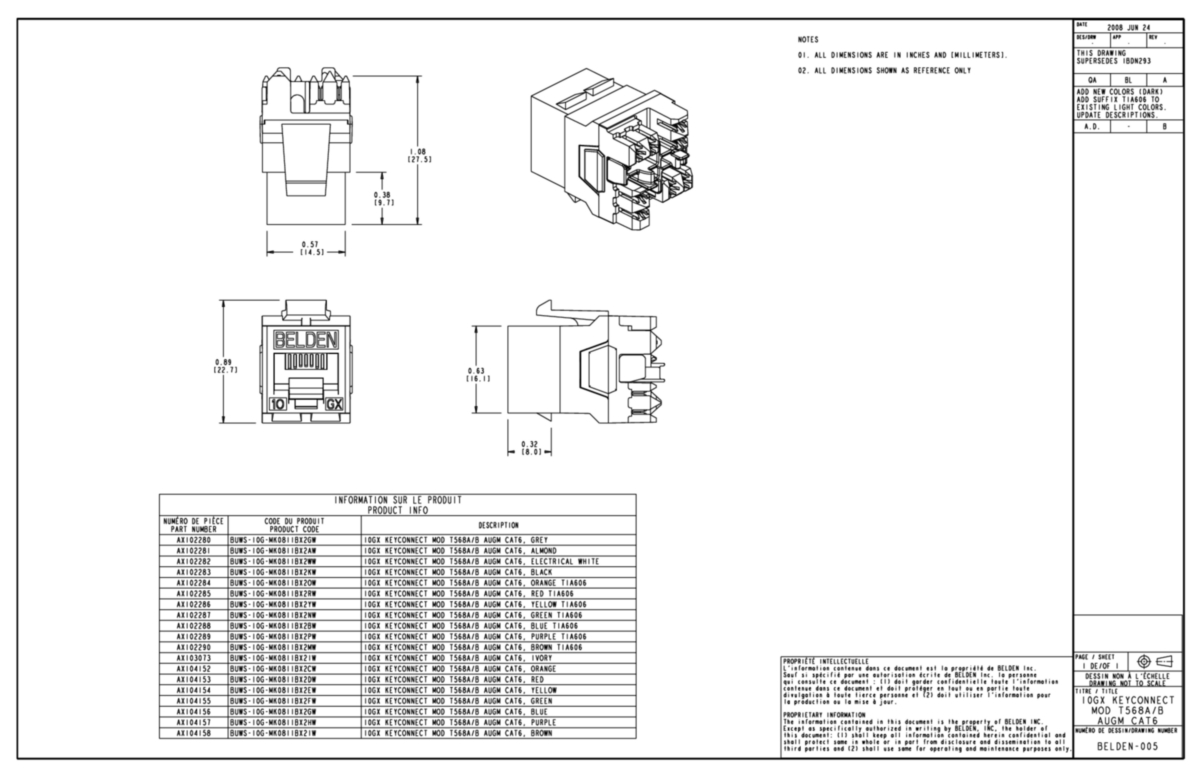

| Height: | 0.9 in |
| Width: | 0.675 in |
| Depth: | 1.17 in |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a plastic bag. Standard pack of 50 units. |
| Weight: | 0.016 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Flexible PCB with 50 µ inch Gold over Nickel | Flexible PCB |
| Rear Connection | Phosphor Bronze with Tin Plating over Nickel | IDC |
| Connector Body | Plastic - UL94V-0 |
| Dielectric Strength: | 1,000V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Termination Resistance: | 2.5 mOhm |
| Installation Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Operating Temperature Range: | -10°C to +60°C |
| Footprint/Type: | KeyConnect |
| Tool Compatibility: | Belden 110 Connecting Tool |
| Plug /Jack Compatibility: | RJ45, RJ11 |
| Termination Front Connection: | Mated Connection |
| Termination Front Connection Durability: | 750 cycles |
| Termination Rear Connection: | IDC Connection |
| Termination Rear Connection Durability: | 20 terminations |
| Cable/Connector Retention: | 15 lbs. |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| Data Category: | Category 6A |
| TIA/EIA Compliance: | Category 6A - TIA 568.2-D, ISO/IEC 11801:2002 Amendment 2 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Third Party Performance Verification: | ETL - Verified Category 6A |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | ACA, c(UL)us Listed |
| Related Parts: | Compatible with KeyConnect Faceplates, Adapters, Boxes and Patch Panels |
| Item # | Color | Packaging |
|---|---|---|
| AX102281 | Almond | Single Pack |
| AX102283 | Black | Single Pack |
| AX104156 | Blue | Single Pack |
| AX104158 | Brown | Single Pack |
| AX102282 | Electric White | Single Pack |
| AX102280 | Gray | Single Pack |
| AX104155 | Green | Single Pack |
| AX103073 | Ivory | Single Pack |
| AX104152 | Orange | Single Pack |
| AX104157 | Purple | Single Pack |
| AX104232 | Stainless Steel | Individually packaged in a plastic bag. Standard pack of 50 units. |
| AX104233 | Stainless Steel | Individually packaged in a plastic bag. Standard pack of 50 units. |
| AX102288 | TIA Blue | Single Pack |
| AX102290 | TIA Brown | Single Pack |
| AX102287 | TIA Green | Single Pack |
| AX102284 | TIA Orange | Single Pack |
| AX102289 | TIA Purple | Single Pack |
| AX102285 | TIA Red | Single Pack |
| AX102286 | TIA Yellow | Single Pack |
| AX104154 | Yellow | Single Pack |
| Included Parts: | 1 X-Bar |
| Notes: | Please see Installation Guide PX103771 |
| Update and Revision: | Revision Number: 0.304 Revision Date: 05-10-2023 |
