10GX KCONN PP 48 2U - 10GX KeyConnect Patch Panel 48 Port 2U

10GX KCONN PP 48 2U-10GX KeyConnect Patc

10GX KeyConnect Patch Panel, 48-port, 2U

Product Overview

Environmental Space: Indoor
Suitable Applications: IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T

Physical Characteristics (Overall)

Height: 88.9 mm
Width: 482.600 mm
Depth: 33.020 mm
Port Count: 48 Port
Front Connection: Flush
Packaging: Individually packaged in a cardboard box.
Weight: 1.134 kg

Connectors

Materials
DescriptionMaterial
PanelSteel

Construction and Dimensions

Max Capacity: 48 connectors

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Termination Resistance: 2.5 mOhm

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: KeyConnect
Plug /Jack Compatibility: RJ45

Standards

Data Category: Category 6A
Telecommunications Standards: Category 6A - TIA 568.B.2-10, ISO/IEC 11801:2002 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: ACA, Bi-national Standard Listed

Part Number

Related Parts: 10GX Modular Cords
Variants
Item #Color
AX103256Titanium

Product Notes

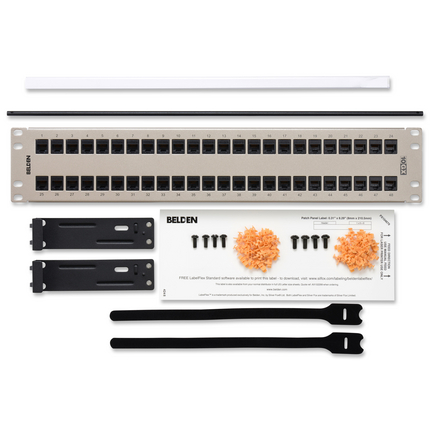

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Label Holder; 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 cable management brakets; 1 Installation Guide; 1 kit 10GX X-BAR
