10GX KCON Cpl PP AngFlex 48 2U - 10GX KeyConnect Coupler Patch Panel AngleFlex 48P

AngleFlex Patch Panel, 48-port, 2U, with 10GX RJ45 Coupler

Product Overview

Suitable Applications: IBDN System 10GX, TIA Category 6A, 10GBASE-T

Physical Characteristics (Overall)

Height: 88.9 mm
Width: 482.600 mm
Depth: 78.740 mm
Port Count: 48 Port
Front Connection: Angled
Packaging: Individually packaged in a cardboard box.
Weight: 2.454 kg



Construction and Dimensions

Max Capacity: 48 connectors

Temperature Range

Installation Temperature Range: -10°C To +60°C
Storage Temperature Range: -40°C To +70°C
Operating Temperature Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: KeyConnect


Data Category: Category 6A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU Directive 2011/65/EU (RoHS 2): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: Bi-national Standard Listed

Related Part Numbers

Related Parts: Compatible with 10GX Patch Cord and 10GX Pre-Terminated Cable Assemblies
Item #ColorUPC

Product Notes

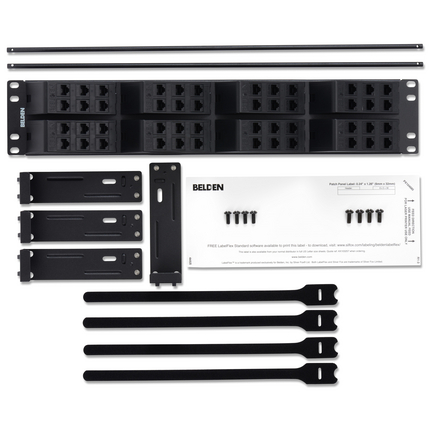

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 4 Velcro Straps; 4 Rear Cable Management Bracket, 1 Installation Guide
Notes: For proper installation refer to Installation Guide PX104673 included with the product. Refer to AX104024 for the Specifications of the Couplers.


Update and Revision: Revision Number: 0.53 Revision Date: 04-08-2022
