(13)10GX KCON Cpl PP AngFlex 24 1U - 10GX KeyConnect Coupler Panel AngleFlex 24 Port 1U
AngleFlex Patch Panel, 24-port, 1U, with 10GX RJ45 Coupler
Product Overview
| Environmental Space: | Indoor |
| Suitable Applications: | IBDN System 10GX, TIA Category 6A, 10GBASE-T |
Physical Characteristics (Overall)
| Height: | 44.450 mm |
| Width: | 482.600 mm |
| Depth: | 78.740 mm |
| Port Count: | 24 Port |
| Front Connection: | Angled |
| Packaging: | Individually packaged in a cardboard box. |
| Weight: | 1.733 kg |
Connectors
| Description | Material |
|---|---|
| Panel | Steel |
Construction and Dimensions
| Max Capacity: | 24 connectors |
Temperature Range
| Installation Temp Range: | -10°C To +60°C |
| Storage Temp Range: | -40°C To +70°C |
| Operating Temp Range: | -10°C To +60°C |
Mechanical Characteristics
| Footprint/Type: | KeyConnect |
Standards
| Data Category: | Category 6A |
Applicable Environmental and Other Programs
| EU Directive 2011/65/EU (ROHS II): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing: | Bi-national Standard Listed |
Part Number
| Related Parts: | Compatible with 10GX Patch Cord and 10GX Pre-Terminated Cable Assemblies |
Product Notes

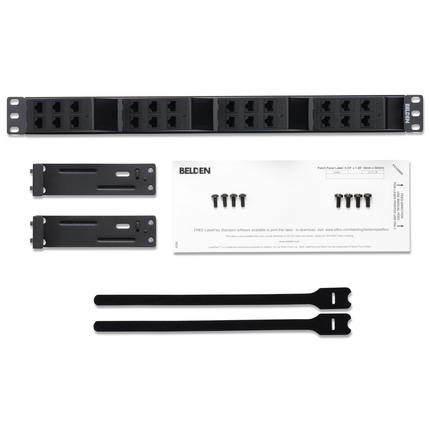

| Included Parts: | 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Velcro Straps; 2 Rear Cable Management Bracket, 1 Installation Guide |
