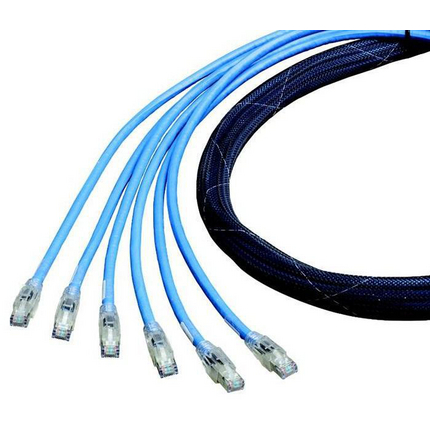

10GX F/UTP CMR PRE-TERM 6 - 10GX F/UTP CMR Pre-Term 6

10GX F/UTP CMR Pre-Term 6

Product Overview

Environmental Space: Riser
Suitable Applications: IBDN Shielded System 10GX, TIA Category 6A, 10GBASE-T

Physical Characteristics (Overall)

Total Number of Pairs: 4
Conductor Size: 23 AWG
Overall Nominal Diameter: 1 in
Wiring Scheme: T568A/B-T568A/B
Packaging: Individually packaged in a box.

Connectors

Materials
DescriptionMaterialColor
BootLexanTranslucent
Braideded SleeveEngineered Polymer Riser Rated
ConductorBC - Bare Copper
Front ConnectionBlades Phosphor Bronze with 50u inch Gold over Nickel Plating
Inner JacketPVC - Polyvinyl Chloride
InsulationPO - Polyolefin
Outer JacketPVC - Polyvinyl Chloride

Electrical Characteristics

Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm
Shielding: F/UTP - Overall Foil

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Min Bend Radius (Overall Cable): 1.040 in
Plug /Jack Compatibility: RJ45
Termination Interface
ConnectionDurabilities
Mated Connection750 Cycles

Standards

UL Rating: Riser
Data Category: Category 6A
Telecommunications Standards: Category 6A - TIA 568.C.2, Class EA - ISO/IEC 11801:2002 Amendment 2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7

Applicable Environmental and Other Programs

EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-01-01
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: c(UL)us Listed

Part Number

Related Parts: 10GX Shielded Modular Jacks and Couplers, 10GX Shielded Patch Panels
Variants
Item #ColorLength
CAF1100295A06Black295 ft
CAF1100050A06Black50 ft
CAF1100045A06Black45 ft
CAF1100040A06Black40 ft
CAF1100038A06Black38 ft
CAF1100036A06Black36 ft
CAF1100035A06Black35 ft
CAF1100034A06Black34 ft
CAF1100032A06Black32 ft
CAF1100030A06Black30 ft
CAF1100028A06Black28 ft
CAF1100026A06Black26 ft
CAF1100025A06Black25 ft
CAF1100024A06Black24 ft
CAF1100022A06Black22 ft
CAF1100020A06Black20 ft
CAF1100018A06Black18 ft
CAF1100016A06Black16 ft
CAF1100015A06Black15 ft
CAF1100014A06Black14 ft
CAF1100012A06Black12 ft
CAF1100010A06Black10 ft
CAF1100009A06Black9 ft
CAF1100008A06Black8 ft
CAF1100007A06Black7 ft
CAF1100006A06Black6 ft
CAF1106060A06Blue60 ft
CAF1106070A06Blue70 ft
CAF1106050A06Blue50 ft
CAF1106045A06Blue45 ft
CAF1106040A06Blue40 ft
CAF1106038A06Blue38 ft
CAF1106036A06Blue36 ft
CAF1106035A06Blue35 ft
CAF1106034A06Blue34 ft
CAF1106032A06Blue32 ft
CAF1106030A06Blue30 ft
CAF1106028A06Blue28 ft
CAF1106026A06Blue26 ft
CAF1106025A06Blue25 ft
CAF1106023A06Blue23 ft
CAF1106024A06Blue24 ft
CAF1106022A06Blue22 ft
CAF1106020A06Blue20 ft
CAF1106018A06Blue18 ft
CAF1106016A06Blue16 ft
CAF1106015A06Blue15 ft
CAF1106014A06Blue14 ft
CAF1106012A06Blue12 ft
CAF1106010A06Blue10 ft
CAF1106009A06Blue9 ft
CAF1106008A06Blue8 ft
CAF1106007A06Blue7 ft
CAF1106006A06Blue6 ft
CAF1108050A06Gray50 ft
CAF1108045A06Gray45 ft
CAF1108040A06Gray40 ft
CAF1108038A06Gray38 ft
CAF1108036A06Gray36 ft
CAF1108035A06Gray35 ft
CAF1108034A06Gray34 ft
CAF1108032A06Gray32 ft
CAF1108030A06Gray30 ft
CAF1108028A06Gray28 ft
CAF1108026A06Gray26 ft
CAF1108025A06Gray25 ft
CAF1108024A06Gray24 ft
CAF1108022A06Gray22 ft
CAF1108020A06Gray20 ft
CAF1108018A06Gray18 ft
CAF1108016A06Gray16 ft
CAF1108015A06Gray15 ft
CAF1108014A06Gray14 ft
CAF1108012A06Gray12 ft
CAF1108010A06Gray10 ft
CAF1108009A06Gray9 ft
CAF1108008A06Gray8 ft
CAF1108007A06Gray7 ft
CAF1108006A06Gray6 ft
CAF1109050A06White50 ft
CAF1109045A06White45 ft
CAF1109040A06White40 ft
CAF1109035A06White35 ft
CAF1109030A06White30 ft
CAF1109025A06White25 ft
CAF1109020A06White20 ft
CAF1109015A06White15 ft
CAF1109010A06White10 ft

Notes

Labeling: Labeled at both ends: Part Number, Serial Number, Termination Scheme, Length, Individual cable identification. Customized Labeling for cable assemblies optional upon request.
Date: 2006-01-01
