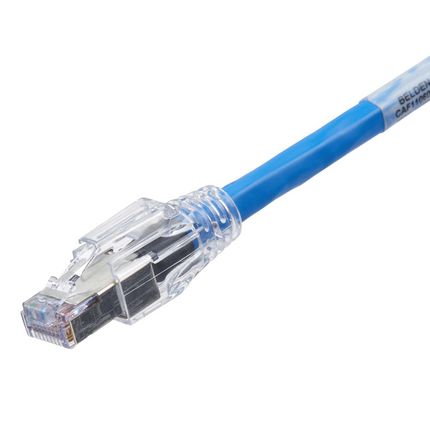

Product Overview
| Environmental Space: | Plenum |
| Suitable Applications: | IBDN Shielded System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T |
Physical Characteristics (Overall)
| Total Number of Pairs: | 4 |
| Conductor Size: | 23 AWG |
| Overall Nominal Diameter: | 0.295 in |
| Packaging: | Individually packaged in a clear plastic bag. |
Connectors
| Description | Material | Color |
|---|---|---|
| Boot | Lexan | Translucent |
| Conductor | BC - Bare Copper | |
| Front Connection | Blades Phosphor Bronze with 50u inch Gold over Nickel Plating | |
| Inner Jacket | PVC - Polyvinyl Chloride | |
| Insulation | PO - Polyolefin | |
| Outer Jacket | PVC - Polyvinyl Chloride |
Electrical Characteristics
| Dielectric Strength: | 1,000 V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
Temperature Range
| Installation Temp Range: | -10°C To +60°C |
| Storage Temp Range: | -40°C To +70°C |
| Operating Temp Range: | -10°C To +60°C |
Mechanical Characteristics
| Min Bend Radius (Overall Cable): | 2.400 in |
| Plug /Jack Compatibility: | RJ45 |
| Connection | Durabilities |
|---|---|
| Mated Connection | 750 Cycles |
Standards
| UL Rating: | Plenum |
| Data Category: | Category 6A |
| Telecommunications Standards: | Category 6A - TIA 568-C.2, Class EA - ISO/IEC 11801:2002 Ed.2 Amendment 2 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS): | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2006-01-01 |
| MII Order #39 (China RoHS): | EUP 50 |
Flammability, LS0H, Toxicity Testing
| Safety Listing: | c(UL)us Listed |
Part Number
| Related Parts: | 10GX Shielded Modular Jacks and Couplers, 10GX Shielded Patch Panels, 10GX IDC Blocks |
| Item # | Color | Length |
|---|---|---|
| CAF2300050 | Black | 50 ft |
| CAF2300045 | Black | 45 ft |
| CAF2300040 | Black | 40 ft |
| CAF2300035 | Black | 35 ft |
| CAF2300030 | Black | 30 ft |
| CAF2300025 | Black | 25 ft |
| CAF2300020 | Black | 20 ft |
| CAF2300015 | Black | 15 ft |
| CAF2200050 | Black | 50 ft |
| CAF2200025 | Black | 25 ft |
| CAF2200015 | Black | 15 ft |
| CAF2306050 | Blue | 50 ft |
| CAF2306045 | Blue | 45 ft |
| CAF2306040 | Blue | 40 ft |
| CAF2306035 | Blue | 35 ft |
| CAF2306030 | Blue | 30 ft |
| CAF2306025 | Blue | 25 ft |
| CAF2306020 | Blue | 20 ft |
| CAF2306015 | Blue | 15 ft |
| CAF2206050 | Blue | 50 ft |
| CAF2206025 | Blue | 25 ft |
| CAF2206015 | Blue | 15 ft |
| CAF2308050 | Gray | 50 ft |
| CAF2308045 | Gray | 45 ft |
| CAF2308040 | Gray | 40 ft |
| CAF2308035 | Gray | 35 ft |
| CAF2308030 | Gray | 30 ft |
| CAF2308025 | Gray | 25 ft |
| CAF2308020 | Gray | 20 ft |
| CAF2308015 | Gray | 15 ft |
| CAF2208050 | Gray | 50 ft |
| CAF2208025 | Gray | 25 ft |
| CAF2208015 | Gray | 15 ft |
| CAF2309050 | White | 50 ft |
| CAF2309045 | White | 45 ft |
| CAF2309040 | White | 40 ft |
| CAF2309035 | White | 35 ft |
| CAF2309030 | White | 30 ft |
| CAF2309025 | White | 25 ft |
| CAF2309020 | White | 20 ft |
| CAF2309015 | White | 15 ft |
| CAF2209050 | White | 50 ft |
| CAF2209025 | White | 25 ft |
| CAF2209015 | White | 15 ft |
Notes
| Labeling: | Belden Part Number, Performance Acronym, Wiring Scheme and Cord Length. |
