10GX Angled PP 48 2U - 10GX Angled Patch Panel 48 Port 2U

10GX Angled PP 48 2U-10GX Angled Patch P

Angled Patch Panel, 48-port, 2U, with 10GX RJ45 Modular Jack

Product Overview

Environmental Space: Indoor
Suitable Applications: IBDN System 10GX, TIA Category 6A, 10GBASE-T

Physical Characteristics (Overall)

Height: 88.9 mm
Width: 482.600 mm
Depth: 293.116 mm
Port Count: 48 Port
Front Connection: Angled
Packaging: Individually packaged in a cardboard box.
Weight: 1.515 kg

Construction and Dimensions

Max Capacity: 48 connectors

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Standards

ANSI/TIA Category: Category 6A

Applicable Environmental and Other Programs

EU Directive 2011/65/EU (ROHS II): Yes
MII Order #39 (China RoHS): EUP 50

Flammability, LS0H, Toxicity Testing

Safety Listing: Bi-national Standard Listed

Part Number

Related Parts: Compatible with 10GX Patch Cord and 10GX Pre-Terminated Cable Assemblies.
Variants
Item #Color
AX105364Black

Product Notes

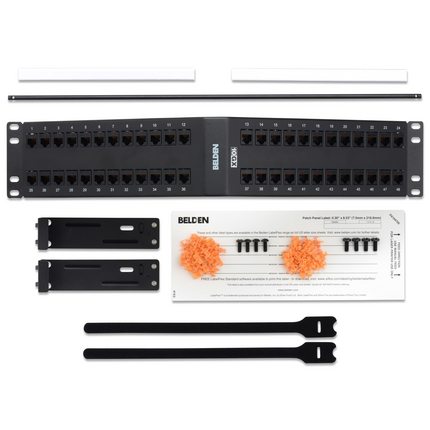

Included Parts: 4 Screws (10x32); 4 Screws (12x24); 1 Printable LabelFlex Half-Sheet; 2 Label Holders; 2 Velcro Straps; 2 Rear Cable Management Bracket; 1 Bar.
