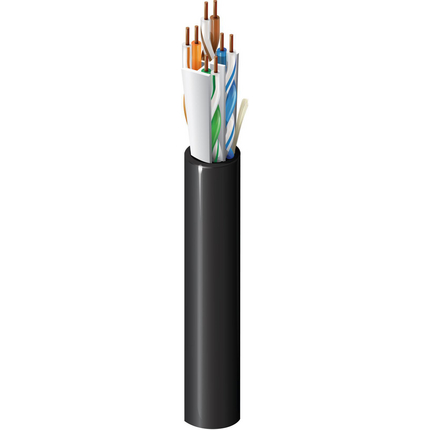

10GX32 - CAT6A 10GX Bonded-Pair, 4pr, UTP, PVC Jkt, CMR

10GX32-CAT6A 10GX Bonded-Pair, 4pr, UTP,

CAT6A (625MHz), 4-Bonded-Pair, U/UTP-unshielded, Riser-CMR, Premise Horizontal cable, 23 AWG solid bare copper conductors, polyolefin insulation, patented Double-H spline, ripcord, PVC jacket

Product Overview

Environmental Space: Riser
Suitable Applications: Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, Noisy Environments, 10G Category 6A, PoE

Physical Characteristics (Overall)

AWGStrandingMaterialNo. of Pairs
23SolidBC - Bare Copper4
Conductor Count: 8
Total Number of Pairs: 4
Conductor Size: 23 AWG
PO - Polyolefin
Bonded-Pair: Yes
Color Chart
1White/Blue Stripe & Blue
2White/Orange Stripe & Orange
3White/Green Stripe & Green
4White/Brown Stripe & Brown
Outer Jacket Material
MaterialNominal DiameterRipcordSeparator Material
PVC - Polyvinyl Chloride0.295 inYesPatented RoundFlex - Double H Cross-Web

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. DCR UnbalanceMax DCR Unbalanced Between Pairs [%]Nominal Conductor DCR
7.5 Ohm/1000ft3 %5 %7.5 Ohm/1000ft
Max. Capacitance UnbalanceNom.Mutual Capacitance
330 pF/100m17 pF/ft
Frequency [MHz]Max. DelayMax. Delay SkewNominal Velocity of Propagation (VP) [%]
100 MHz537.6 ns/100m30 ns/100m64 %
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. ACR [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted)Max./Min. Fitted ImpedanceMin. PSANEXTMin. PSAACRFMin. TCL [dB]Min. ELTCTL [dB]
1 MHz2.1 dB/100m75.3 dB73.3 dB73.2 dB71.2 dB70.8 dB68.8 dB20.0 dB100 ± 15 Ohm100 ± 15 Ohm67.0 dB67.0 dB48.0 dB43.0 dB
4 MHz3.8 dB/100m66.3 dB64.3 dB62.5 dB60.5 dB58.8 dB56.8 dB23.0 dB100 ± 15 Ohm100 ± 10.4 Ohm67.0 dB67.0 dB48.0 dB41.0 dB
8 MHz5.3 dB/100m61.8 dB59.8 dB56.4 dB54.4 dB52.7 dB50.7 dB24.5 dB100 ± 15 Ohm100 ± 8 Ohm67.0 dB61.1 dB48.0 dB24.9 dB
10 MHz5.9 dB/100m60.3 dB58.3 dB54.4 dB52.4 dB50.8 dB48.8 dB25.0 dB100 ± 15 Ohm100 ± 7.3 Ohm67.0 dB59.2 dB48.0 dB23.0 dB
16 MHz7.5 dB/100m57.2 dB55.2 dB49.8 dB47.8 dB46.7 dB44.7 dB25.0 dB100 ± 15 Ohm100 ± 5 Ohm67.0 dB55.1 dB46.0 dB18.9 dB
20 MHz8.4 dB/100m55.8 dB53.8 dB47.4 dB45.4 dB44.8 dB42.8 dB25.0 dB100 ± 15 Ohm100 ± 5 Ohm67.0 dB53.2 dB45.0 dB17.0 dB
25 MHz9.4 dB/100m54.3 dB52.3 dB45.0 dB43.0 dB42.8 dB40.8 dB25.0 dB100 ± 15 Ohm100 ± 5 Ohm67.0 dB51.2 dB44.0 dB15.0 dB
31.25 MHz10.5 dB/100m52.9 dB50.9 dB42.4 dB40.4 dB40.9 dB38.9 dB25.0 dB100 ± 15 Ohm100 ± 5 Ohm67.0 dB49.3 dB43.1 dB
62.5 MHz15.0 dB/100m48.4 dB46.4 dB33.4 dB31.4 dB34.9 dB32.9 dB25.0 dB100 ± 15 Ohm100 ± 5 Ohm66.6 dB43.3 dB40.0 dB
100 MHz19.1 dB/100m45.3 dB43.3 dB26.2 dB24.2 dB30.8 dB28.8 dB25.0 dB100 ± 15 Ohm100 ± 5 Ohm63.5 dB39.2 dB38.0 dB
200 MHz27.6 dB/100m40.8 dB38.8 dB13.2 dB11.2 dB24.8 dB22.8 dB21.0 dB100 ± 22 Ohm100 ± 5 Ohm59.0 dB33.2 dB35.0 dB
250 MHz31.1 dB/100m39.3 dB37.3 dB8.3 dB6.3 dB22.8 dB20.8 dB20.5 dB100 ± 32 Ohm100 ± 5 Ohm57.5 dB31.2 dB34.0 dB
300 MHz34.3 dB/100m38.1 dB36.1 dB3.9 dB1.9 dB21.3 dB19.3 dB20.1 dB100 ± 32 Ohm100 ± 5 Ohm56.3 dB29.7 dB33.2 dB
350 MHz37.2 dB/100m37.1 dB35.1 dB19.9 dB17.9 dB19.8 dB100 ± 32 Ohm100 ± 5 Ohm55.3 dB28.3 dB32.6 dB
400 MHz40.1 dB/100m36.3 dB34.3 dB18.8 dB16.8 dB19.5 dB100 ± 32 Ohm100 ± 5 Ohm54.5 dB27.2 dB32.0 dB
450 MHz42.7 dB/100m35.5 dB33.5 dB17.7 dB15.7 dB18.9 dB100 ± 32 Ohm100 ± 5 Ohm53.7 dB26.1 dB31.5 dB
500 MHz45.3 dB/100m34.8 dB32.8 dB16.8 dB14.8 dB18.4 dB100 ± 32 Ohm100 ± 5 Ohm53.0 dB25.2 dB31.0 dB
550 MHz47.7 dB/100m34.2 dB32.2 dB16.0 dB14.0 dB18.0 dB100 ± 32 Ohm100 ± 5 Ohm52.4 dB24.4 dB
600 MHz50.1 dB/100m33.6 dB31.6 dB15.2 dB13.2 dB17.6 dB100 ± 32 Ohm100 ± 5 Ohm51.8 dB23.6 dB
625 MHz51.2 dB/100m33.4 dB31.4 dB14.9 dB12.9 dB17.4 dB100 ± 32 Ohm100 ± 5 Ohm51.6 dB23.3 dB
750 MHz56.7 dB/100m32.2 dB30.2 dB13.3 dB11.3 dB16.5 dB50.4 dB21.7 dB
860 MHz61.2 dB/100m31.3 dB29.3 dB12.1 dB10.1 dB15.8 dB49.5 dB20.5 dB
Segregation class according EN50174-2: a
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temp Range: +5°C To +50°C
UL Temp Rating: 90°C
Storage Temp Range: -20°C To +75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 40 lbs/1000ft
Max Recommended Pulling Tension: 40 lbs
Min Bend Radius/Minor Axis: 0.6 in
Min Bend Radius/Installation: 3.0 in


NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMR
ISO/IEC Compliance: 11801 ed 2.2 (2011) Class EA
Data Category: Category 6A
ANSI Compliance: S-116-732-2013 Category 6A, ANSI/NEMA WC-66 Category 6A
Telecommunications Standards: ANSI/TIA-568-C.2 Category 6A
IEEE Specification: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Other Specification: Verified Channel/Category 6A
Other Standards: C(UL)US CMR 90C OR (UL) CMR-LP (0.5A) OR CL3R-LP (0.5A)

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
EU RoHS Compliance Date (yyyy-mm-dd): 2011-12-09
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes


Suitability - Aerial: No
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Non-Halogenated: No
Suitability - Oil Resistance: No
Suitability - Outdoor: No
Suitability - Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL 1666 Riser
UL voltage rating: 300 V RMS


Plenum (Y/N): No
Plenum Number: 10GX33

Part Number

Item #ColorFootnote
10GX32 0061000Blue
10GX32 0081000GrayC
10GX32 0091000WhiteC
10GX32 0041000YellowC
Footnote: C - CRATE REEL PUT-UP.
Date: 2011-12-09
