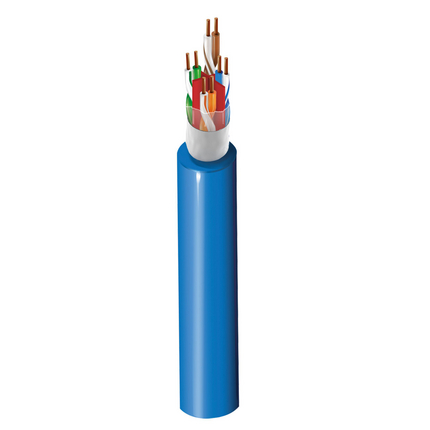

10GA24 - CAT 6A 23AWG, U/UTP, LSZH Jkt, Indoor


23 AWG solid bare copper conductors, non-plenum, Polyolefin insulation, twisted pairs, central spline, overall cabling, special Barrier tape, LSZH jacket

Product Overview

Suitable Applications: Horizontal and building backbone Cable. Support current and future category 6A and 6 applications: such as 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T,ISDN, ATM as well as PoE application etc.
Patent: This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents.

Construction Details

Conductor
AWGStrandingMaterialNumber of Pairs
23SolidBC - Bare Copper4
Insulation
MaterialColor Code
PO - PolyolefinWhite & Blue, White with Orange Stripe & Orange, White with Green Stripe & Green, White with Brown Stripe & Brown
Bonded-Pair: No
Outer Jacket Material
Separator MaterialMaterialNom. Diameter
Barrier TapeLSZH - Low Smoke Zero Halogen (Flame Retardant)7.2±0.3 mm

Electrical Characteristics

Electricals
Max. Conductor DCRMax. DCR UnbalanceMax. DCR Unbalanced Between Pairs [%]Max. Capacitance UnbalanceNom. Mutual CapacitanceNom. Velocity of Prop.
95 Ohm/km at 20 Deg C2%4%160 pF/100m56 pF/ft67%
Delay
Max. Delay SkewNom. Velocity of Propagation (VP) [%]
45 ns/100m67%
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)Min. NEXT [dB]Min. PSNEXT [dB]Min. PSACR [dB]Min. ACRF (ELFEXT) [dB]Min. PSACRF (PSELFEXT) [dB]Min. RL (Return Loss) [dB]Max./Min. Input Impedance (unFitted)Max./Min. Fitted ImpedanceMin. PSANEXTMin. PSAACRFMin. TCL [dB]Min. ELTCTL [dB]
1 MHz2.1 dB/100m75.3 dB72.3 dB71.2 dB68.0 dB65.0 dB20.0 dB100 ± 15 Ohm100 ± 15 Ohm67.0 dB67.0 dB40.0 dB35.0 dB
4 MHz3.8 dB/100m66.3 dB63.3 dB60.5 dB56.0 dB53.0 dB23.0 dB100 ± 15 Ohm100 ± 15 Ohm67.0 dB66.2 dB34.0 dB23.0 dB
10 MHz5.9 dB/100m60.3 dB57.3 dB54.4 dB48.0 dB45.0 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm67.0 dB58.2 dB30.0 dB15.0 dB
16 MHz7.5 dB/100m57.2 dB54.2 dB52.4 dB43.9 dB40.9 dB25.0 dB100 ± 15 Ohm100 ± 15 Ohm67.0 dB54.1 dB28.0 dB10.9 dB
31.25 MHz10.5 dB/100m52.9 dB49.9 dB47.8 dB38.1 dB35.1 dB23.6 dB100 ± 15 Ohm100 ± 15 Ohm67.0 dB48.3 dB25.1 dB
62.5 MHz15.0 dB/100m48.4 dB45.4 dB45.4 dB32.1 dB29.1 dB21.5 dB100 ± 15 Ohm100 ± 15 Ohm65.6 dB42.3 dB22.0 dB
100 MHz19.1 dB/100m45.3 dB42.3 dB43.0 dB28.0 dB25.0 dB20.1 dB100 ± 15 Ohm100 ± 15 Ohm62.5 dB38.2 dB20.0 dB
125 MHz21.5 dB/100m43.8 dB40.8 dB40.4 dB26.1 dB23.1 dB19.4 dB100 ± 15 Ohm100 ± 15 Ohm61.0 dB36.3 dB19.0 dB
200 MHz27.6 dB/100m40.8 dB37.8 dB31.4 dB22.0 dB19.0 dB18.0 dB100 ± 15 Ohm100 ± 15 Ohm58.0 dB32.2 dB17.0 dB
250 MHz31.1 dB/100m39.3 dB36.3 dB24.2 dB20.0 dB17.0 dB17.3 dB100 ± 15 Ohm100 ± 15 Ohm56.5 dB30.2 dB16.0 dB
300 MHz34.3 dB/100m38.1 dB35.1 dB11.2 dB18.5 dB15.5 dB17.3 dB100 ± 22 Ohm100 ± 22 Ohm55.3 dB28.7 dB
500 MHz45.3 dB/100m34.8 dB31.8 dB6.3 dB14.0 dB11.0 dB17.3 dB100 ± 22 Ohm100 ± 22 Ohm52.0 dB24.2 dB
600 MHz50.1 dB/100m33.6 dB30.6 dB1.9 dB12.4 dB9.4 dB17.3 dB100 ± 30 Ohm100 ± 30 Ohm50.8 dB22.6 dB
650 MHz52.3 dB/100m33.1 dB30.1 dB11.7 dB8.7 dB17.3 dB100 ± 30 Ohm100 ± 30 Ohm50.3 dB21.9 dB

Mechanical Characteristics

Temperature
OperatingInstallationStorage
-20°C to +60°C0°C to +50°C-20°C to +60°C
Bend Radius
Installation Min.
50 mm
Max. Pull Tension: 110 N
Bulk Cable Weight: 52 kg/km

Standards and Compliance

Environmental Suitability: Indoor, Indoor, Non-Halogenated
Flammability / Fire Resistance: IEC 60332-1-2
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
Data Category: Category 6A
TIA/EIA Compliance: TIA 568 2.D
European Halogen Free Standards: IEC 61034-2 (EN 61034-2) (VDE 0482-1034) - Smoke Density Min. Transmittance=60%, IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Max. Conductivity=10, IEC 60754-2 (EN50267-2)- Halogen Acid Gas Amount - Min. pH=4.3

Product Notes

Notes: Cold bend test: -30℃ x 4 Hrs, No Crack

History

Update and Revision: Revision Number: 0.4 Revision Date: 10-06-2020
Date: 2013-01-01
