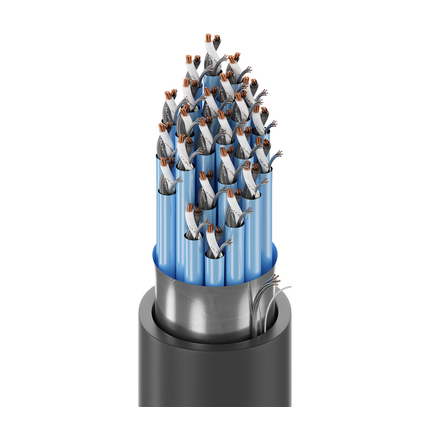

1045A - Inst, 24 Pr #16 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry 75C Wet


UL Instrumentation, 24 Pair 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry 75C Wet SUN RES DIR BUR

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
167x24BC - Bare Copper24
Conductor Count: 48
Total Number of Pairs: 24
Insulation
MaterialNominal Diameter
PVC/Nylon - Polyvinyl Chloride/Nylon Skin0.101 in
Color Chart
NumberColor
1Black&White and Numbered 1
2Black & White and Numbered 2
3Black & White and Numbered 3
4Black & White and Numbered 4
5Black & White and Numbered 5
6Black & White and Numbered 6
7Black & White and Numbered 7
8Black & White and Numbered 8
9Black & White and Numbered 9
10Black & White and Numbered 10
11Black & White and Numbered 11
12Black & White and Numbered 12
13Black & White and Numbered 13
14Black & White and Numbered 14
15Black & White and Numbered 15
16Black & White and Numbered 16
17Black & White and Numbered 17
18Black & White and Numbered 18
19Black & White and Numbered 19
20Black & White and Numbered 20
21Black & White and Numbered 21
22Black & White and Numbered 22
23Black & White and Numbered 23
24Black & White and Numbered 24
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper187x26
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper167x24
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride1.244 in0.084 inYes

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCRNominal Outer Shield DCR
5.07 Ohm/1000ft4.2 Ohm/1000ft3.14 Ohm/1000ft
Current
Max. Recommended Current [A]
2.8 Amps per conductor @ 30C
Voltage
UL Voltage Rating
600 V RMS
150 V RMS (Type NPLF)

Temperature Range

UL Temp Rating: 75°C Dry, 90°C Wet
Wet Temp Range: -30°C To +75 °C
Dry Temp Range: -30°C To +90 °C

Mechanical Characteristics

Bulk Cable Weight: 891 lbs/1000ft
Max Recommended Pulling Tension: 970 lbs
Min Bend Radius/Minor Axis: 12.7 in

Standards

NEC/(UL) Specification: NPLF, TC-ER
Other Specification: ICEA S-73-532, S-61-402

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Burial: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
CSA Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 600 V RMS (Type TC)

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
1045A 0101250BlackReel1,250 ft612825105312
1045A 0105000BlackReel5,000 ft612825105329
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.

Product Notes

Notes: Alternate color coding available upon request.

History

Update and Revision: Revision Number: 0.345 Revision Date: 04-28-2020
Date: 2005-04-01
