1033A - 300V, (1 pr) 20 AWG (7x28) BC, PVC/PVC, Foil Shld, PLTC-ER, CMG

1033A-300V, (1 pr) 20 AWG

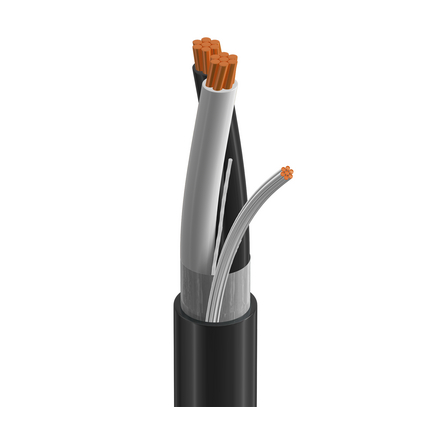

One 20 AWG pair stranded (7x28) bare copper conductors, twisted pairs, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
207x28BC - Bare Copper1
Conductor Count: 2
Total Number of Pairs: 1
Total Number of Triads: N/A
Conductor Size: 20 AWG
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.0175 in
Color Chart
NumberColor
1Black & White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper227x30 mm
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.220 in0.037 inYes

Construction and Dimensions

Cabling
Lay Direction
Left Hand
Print Legend: LEGEND: BELDEN 1033A E34972 1PR20 SHIELDED (UL) CMG 105C OR PLTC OR ITC SUN RES OR AWM 2464 80C 300V OR C(UL) CMG ----FT4 IEEE 1202 (2 FT, 7 DIGIT SEQUENTIAL NUMBER) FEET

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
9.5 Ohm/1000ft38 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
30 pF/ft55 pF/ft
Shielding: Foil(s) or Copper Tape(s)
Voltage
UL Voltage Rating
300 V RMS
150 V RMS (ITC)

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 29 lbs/1000ft
Max Recommended Pulling Tension: 16 lbs
Min Bend Radius/Minor Axis: 2.1 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMG, ITC-ER, PLTC-ER
CEC/C(UL) Specification: CMG
UL AWM Style: 2464

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1685 UL Loading
IEEE Flammability: 1202
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorFootnote
1033A 0101000BlackC
1033A 01010000BlackC Z
Footnote: C - CRATE REEL PUT-UP.
Z - FINAL PUT-UP MAY VARY (= OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
Date: 2005-04-01
