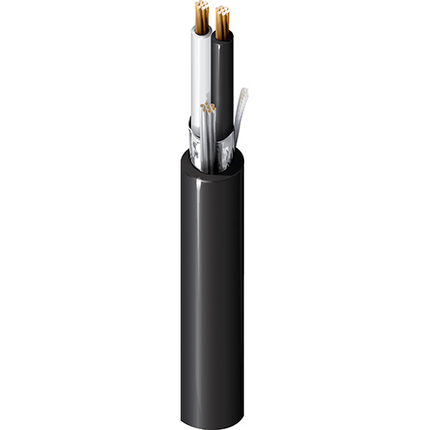

(4)UL Instrumentation, 1 Pair 16AWG (7x24) Bare Copper, PVC-Nylon Insulation E1 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, PLTC-ER ITC CMG AWM 2464 SUN RES DIR BUR
| Suitable Applications: | Exposed Runs, Hazardous Locations,PLC,4-20ma |
| Element | AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|---|
| Conductor(s) | 16 | 7x24.5 | BC - Bare Copper | 1 |
| Total Number of Pairs: | 1 |
| Element | Layer | Material | Nominal Diameter | Nominal Wall Thickness | Min. Average Wall Thickness |
|---|---|---|---|---|---|
| Conductor(s) | 0.017 | PVC/Nylon - Polyvinyl Chloride + Nylon | 0.101 in | 0.019 in | 0.015 in |
| 0.005 | 0.005 in mm |
| Number | Color |
|---|---|
| Pair 1 | Black |
| Natural |
| Type | Material | Coverage [%] |
|---|---|---|
| Tape | Polypropylene Foam | 100% |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 18 | 7x26 |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.315 in | 0.047 in | Yes |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 4.32 Ohm/1000ft | 6.27 Ohm/1000ft |
| Max. Recommended Current [A] |
|---|
| 18 Amps per Conductor at 30ºC |
| UL Description | UL Voltage Rating |
|---|---|
| PLTC | 300 V RMS |
| UL Temperature Rating: | 105°C |
| Operating Temperature Range: | -30°C To +105°C |
| Oil Resistance: | Yes |
| UV Resistance: | All colors |
| Bulk Cable Weight: | 46 lbs/1000ft |
| Maximum Recommended Pulling Tension: | 94 lbs |
| Minimum Bend Radius During Installation: | 2.93 in |
| Minimum Minor Axis Bend Radius: | 2.7 in |
| NEC Articles: | Article 725 |
| NEC/(UL) Compliance: | CMG, ITC, PLTC |
| CEC/C(UL) Compliance: | CMG |
| UL AWM Style Compliance: | AWM 2464 |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Burial: | Yes |
| Suitability - Hazardous Locations: | Yes |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| Suitability - Sunlight Resistance: | Yes |
| UL Flammability: | UL1685 FT4 Loading |
| IEEE Flammability: | IEEE 1202 FT4 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Notes: | Alternate color coding available upon request. |
| Update and Revision: | Revision Number: 0.288 Revision Date: 04-02-2026 |
