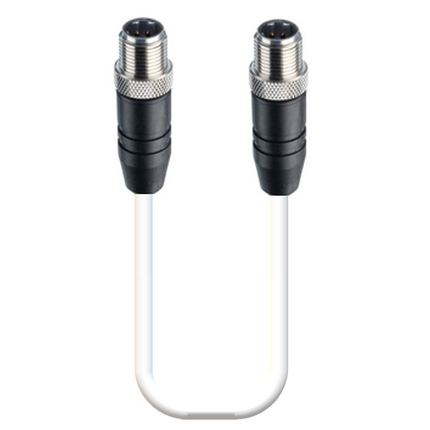

0985 YM57530-W 100 - Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a M12 male, straight, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with white jacket





Fast Ethernet Cat5e, double-ended cord set, M12 male, straight, 4-pin, D-coding to a M12 male, straight, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with white jacket

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Shielded
Rated Voltage: 60 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 50 V AC / 60 V DC
Rated Current*: 4 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

Technical Data Side 1

Product Sub Family: M12 Standard
Type of Contact / Gender: Male
Connector Design: Straight
Attachment Type: Knurled Screw
Number of Pins: 4
Coding: D
Mating Cycles: ≤ 100
Cable Gland: PG 7
Ambient Temperature (Operation)*: - 25 °C - + 75 °C
Temperature Range (Gasket): see Accessories
Protection Degree / IP Rating**: IP65, IP67
Design Standard: IEC 61076-2-101
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: EN 60664-1 (2003/11); VDE 0110-1
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material: CuSn
Contact Plating: Cu/Au
Contact Bearer Material: PBT
Contact Bearer Color: Black
Flammability Class (Contact Bearer): UL 94 HB
Molded Body Material: TPU
Molded Body Color: Black
Flammability Class (Molded Body): UL 94 HB
Housing Color: see standard article
Attachment Material: CuZn
Attachment Plating: Nickel-plated
Shielding Material: CuZn, tin-plated
Gasket Material: NBR
Fastening Torque (Cable Gland): PG7: (150-250) Ncm
Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight
Accessories to Order Separately: gasket: GDSN 307-4, 730176-002, NBR, flat gasket for temperature range: -25°C to +90°C, flat gasket GDSN 307-5, 730-310-003,EPDM, flat gasket for temperature range: -40°C to +125°C

Cable Data

Cable Number: YM57530-W
Conductor Size: 24 AWG
Number of Wires: 2 Pair (bonded twisted pairs)
Minimal Bending Radius (Fixed Inst): 5 x D
Minimal Bending Radius (Flexible Inst): 10 x D
Cycles (Bending): 3
Cycles (Torsion): ˃ 5 M @ ± 360 °/1 m
Cable Jacket Material: TPE
Cable Jacket Color: White
Cable Diameter D: ø 7.62 mm
Wire Insulation Material: Polyolefin
Insulated Wire Diameter: ø 1.02 ± 0.05 mm
Overall Shield (Cable): TC Braid 65%
Foil shield: Al Foil 100%
Ambient Temperature (Fixed Installation): - 40 °C - + 75 °C
Ambient Temperature (Flex Installation): - 25 °C - + 75 °C
Ambient Temperature (Drag Chain Inst): - 25 °C - + 60 °C
UL Cable Type: AWM 20626, 80C 600 V
Cable Characteristics: NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res
Core Colors: Bonded Twisted pairs: wh/or | wh/gn

Technical Data Side 2

Product Sub Family, Side 2: M12 Standard
Type of Contact / Gender, Side 2: Male
Connector Design, Side 2: Straight
Attachment Type, Side 2: Knurled Screw
Number of Pins, Side 2: 4
Coding, Side 2: D
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 25 °C - + 75 °C
Protection Degree / IP Rating, Side 2**: IP65, IP67
Design Standard, Side 2: IEC 61076-2-101
Pollution Degree, Side 2: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2: CuSn
Contact Plating, Side 2: Cu/Au
Contact Bearer Material, Side 2: PBT
Contact Bearer Color, Side 2: Black
Flammability Class (Contact Bearer), Side 2: UL 94 HB
Molded Body Material, Side 2: TPU
Molded Body Color, Side 2: Black
Flammability Class (Molded Body), Side 2: UL 94 HB
Attachment Material, Side 2: CuZn
Attachment Plating, Side 2: Nickel-plated
Shielding Material, Side 2: CuZn, tin-plated
Fastening Torque (Attachment), Side 2: M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant: Yes

Resistances

Oil Resistance: Yes

Notes

Note Derating: Notice derating
Variants
Item #Item DescriptionCable Length
9000045180985 YM57530-W 100/1M1 m
9000162270985 YM57530-W 100/3M3 m
9000049980985 YM57530-W 100/5M5 m
9000049990985 YM57530-W 100/15M15 m
5000050000985 YM57530-W 100/20M20 m
9000050000985 YM57530-W 100/20M20 m
9000162280985 YM57530-W 100/25M25 m
9000050010985 YM57530-W 100/30M30 m
9000050020985 YM57530-W 100/40M40 m
9000050030985 YM57530-W 100/50M50 m
9000050640985 YM57530-W 100/70M70 m
9000052060985 YM57530-W 100/75M75 m
9000051530985 YM57530-W 100/80M80 m
9000052070985 YM57530-W 100/82M82 m
No accessories are available for this product
