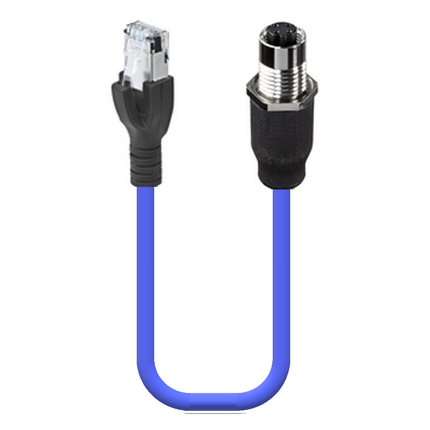

0985 YM57530-U 104 - Fast Ethernet Cat5e, double-ended cord set, RJ45 male, straight, 8-pin to a M12 female, PG9 panel rear mount, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with blue jacket






Fast Ethernet Cat5e, double-ended cord set, RJ45 male, straight, 8-pin to a M12 female, PG9 panel rear mount, 4-pin, D-coding, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with blue jacket

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Shielded
Rated Voltage: 42 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 30 V AC/ 42 V DC
Rated Current*: 1.5 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

Technical Data Side 1

Product Sub Family: RJ45
Type of Contact / Gender: Male
Connector Design: Straight
Attachment Type: Plug
Number of Pins: 8 (4 terminated)
Coding: RJ45
Mating Cycles: ≤ 750
Ambient Temperature (Operation)*: - 40 °C - + 70 °C
Protection Degree / IP Rating**: IP20
Contact Base Material: P / CuSN
Contact Plating: Au
Contact Bearer Material: Polycarbonate
Contact Bearer Color: Clear
Molded Body Material: Elastomer Polyolefin
Molded Body Color: Black

Cable Data

Cable Number: YM57530-U
Conductor Size: 24 AWG
Number of Wires: 2 Pair (bonded twisted pairs)
Minimal Bending Radius (Fixed Inst): 5 x D
Minimal Bending Radius (Flexible Inst): 10 x D
Cycles (Bending): 3
Cycles (Torsion): ˃ 5 M @ ± 360 °/1 m
Cable Jacket Material: TPE
Cable Jacket Color: Blue
Cable Diameter D: ø 7.62 mm
Wire Insulation Material: Polyolefin
Insulated Wire Diameter: ø 1.02 ± 0.05 mm
Overall Shield (Cable): TC Braid 65%
Foil shield: Al Foil 100%
Ambient Temperature (Fixed Installation): - 40 °C - + 75 °C
Ambient Temperature (Flex Installation): - 25 °C - + 75 °C
Ambient Temperature (Drag Chain Inst): - 25 °C - + 60 °C
UL Cable Type: AWM 20626, 80C 600 V
Cable Characteristics: NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res
Core Colors: Bonded Twisted pairs: wh/or | wh/gn

Technical Data Side 2

Product Sub Family, Side 2: M12 Standard
Type of Contact / Gender, Side 2: Female
Connector Design, Side 2: Panel Mount PG9 Rear Mount
Attachment Type, Side 2: Internally Threaded
Number of Pins, Side 2: 4
Coding, Side 2: D
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 25 °C - + 75 °C
Protection Degree / IP Rating, Side 2**: IP65, IP67
Design Standard, Side 2: IEC 61076-2-101
Pollution Degree, Side 2: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2: CuSn
Contact Plating, Side 2: Cu/Au
Contact Bearer Material, Side 2: PBT
Contact Bearer Color, Side 2: Black
Flammability Class (Contact Bearer), Side 2: UL 94 HB
Molded Body Material, Side 2: CuSn, Nickled Plated
Molded Body Color, Side 2: Sliver
Shielding Material, Side 2: CuZn, tin-plated
Fastening Torque (Attachment), Side 2: M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant: Yes

Resistances

Oil Resistance: Yes

Notes

Note Derating: Notice derating
Variants
Item #Item DescriptionCable Length
9000045000985 YM57530-U 104/0.5M0.5 m
9000045010985 YM57530-U 104/1M1 m
9000045020985 YM57530-U 104/2M2 m
9000045030985 YM57530-U 104/3M3 m
No accessories are available for this product
