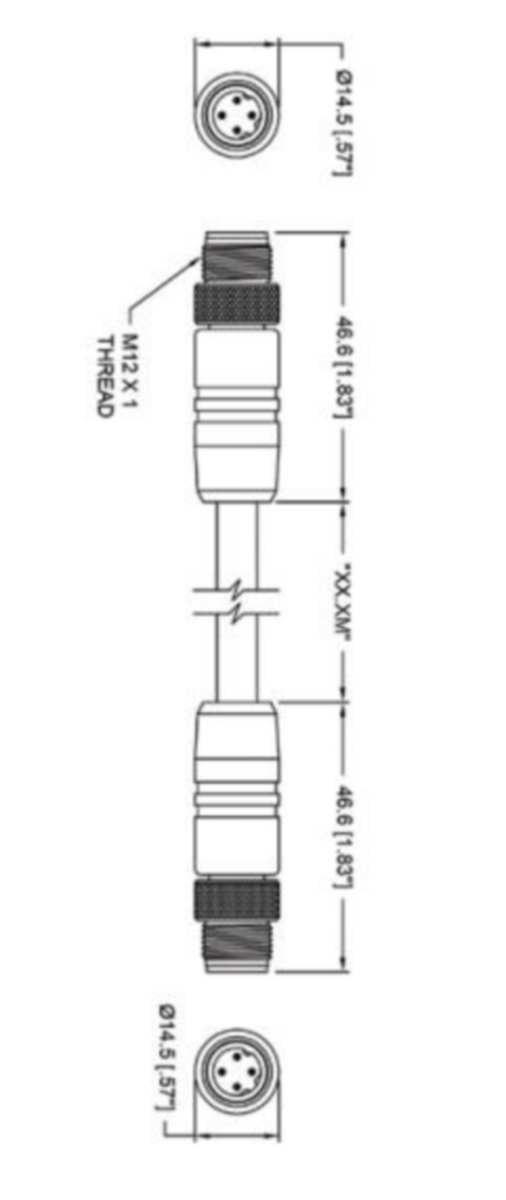

Industrial Ethernet double-ended cord set, 4-pole, male straight connector with bonded twisted pairs, suitable for Fast Ethernet applications, oil-resistant TPE jacket in teal with a robust design for high-flex environments.
| Brand: | Lumberg Automation |
| Current Rating: | 4 A |
| Side 1 Product Sub Family: | m12 standard |
| Connector Design: | straight |

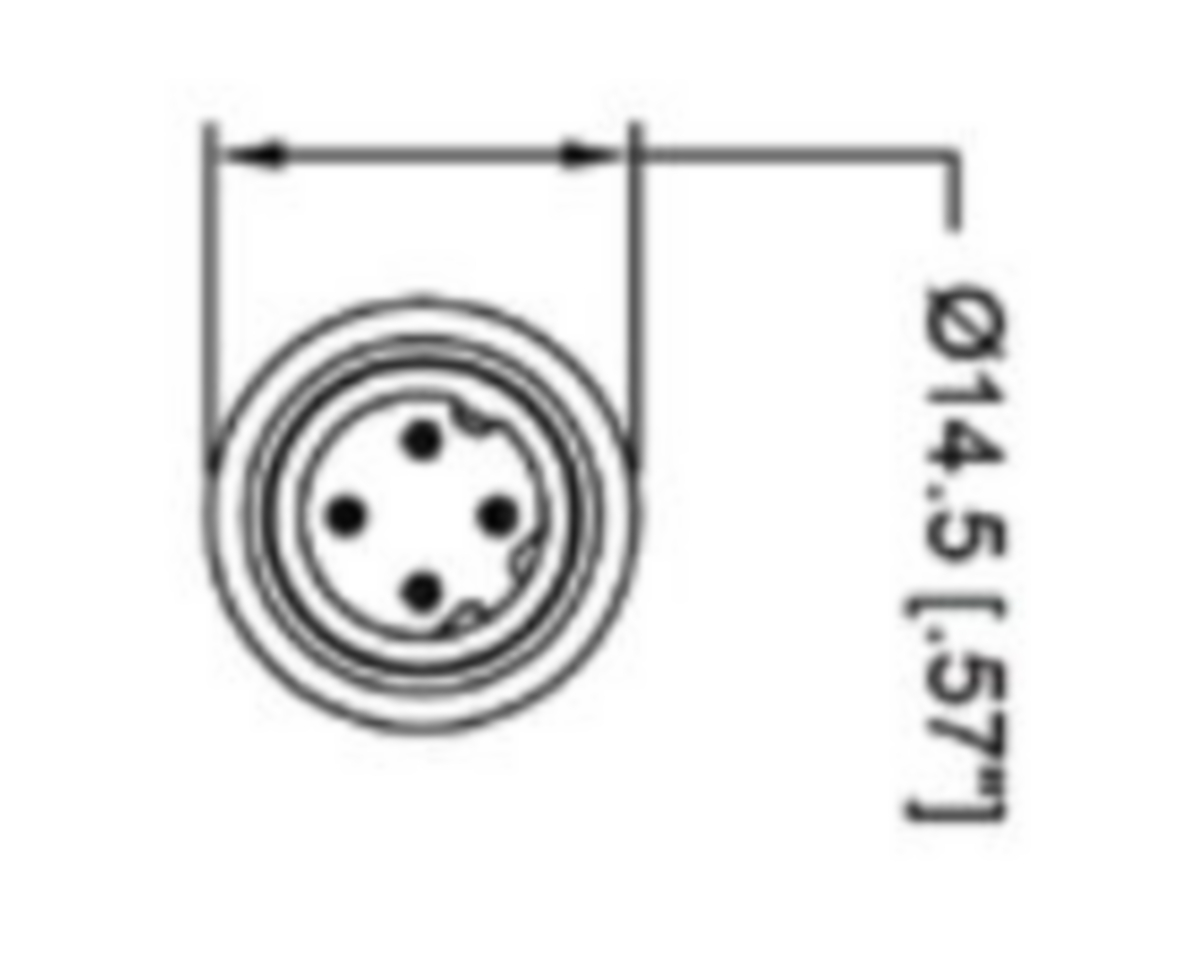

| Number of Pins: | 4 |
| Coding, Side 1: | D |
| Ambient Temperature (Operation)*: | - 25 °c - + 75 °c |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Side 1 Design Standard: | IEC 61076-2-101 |
| Overvoltage Category: | iii acc. to din en 60664-1 (vde 0110-1) |
| Contact Bearer Color: | Black |
| Flammability Class (Contact Bearer): | ul 94 hb |
| Molded Body Color: | Black |
| Flammability Class (Molded Body): | ul 94 hb |
| Attachment Material: | CuZn |
| Attachment Plating: | nickel-plated |
| Fastening Torque (Attachment): | m 12x1: (50-60) ncm, hand-tight |
| Conductor Size: | 24 AWG |
| Minimal Bending Radius (Flexible Inst): | 10 x d |
| Cycles (Bending): | 3 |
| Cable Jacket Material: | TPE |
| Cable Diameter D: | ø 7.62 mm |
| Insulated Wire Diameter: | ø 1.02 ± 0.05 mm |
| Overall Shield (Cable): | tc braid 65% |
| Ambient Temperature (Flex Installation): | - 25 °c - + 75 °c |
| Ambient Temperature (Drag Chain Inst): | - 25 °c - + 60 °c |
| Update and Revision: | Revision Number: 0.10 Revision Date: 04-30-2026 |
| Item # | Item Description |
|---|---|
| 900016450 | 0985 YM57530-G 100/0.5M |
| 900016451 | 0985 YM57530-G 100/1M |
| 900016452 | 0985 YM57530-G 100/2M |
| 900016453 | 0985 YM57530-G 100/3M |
| 900016454 | 0985 YM57530-G 100/4M |
| 900016455 | 0985 YM57530-G 100/5M |
| 900016456 | 0985 YM57530-G 100/6M |
| 900016457 | 0985 YM57530-G 100/8M |
| 900016458 | 0985 YM57530-G 100/10M |
| 900016459 | 0985 YM57530-G 100/12M |
| 900016460 | 0985 YM57530-G 100/15M |
| 900016461 | 0985 YM57530-G 100/20M |
| 900016504 | 0985 YM57530-G 100/30M |
| 900016534 | 0985 YM57530-G 100/1.5M |
