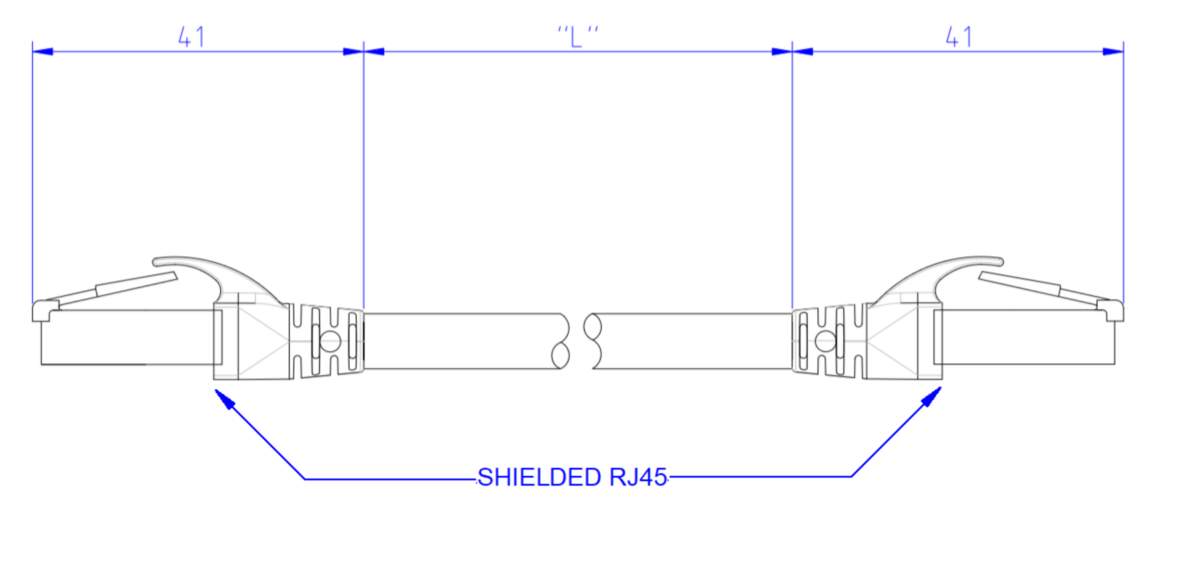

0985 YM57530 500 - Fast Ethernet Cat5e, double-ended cord set, RJ45 male, straight, 8-pin to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with teal jacket





Fast Ethernet Cat5e, double-ended cord set, RJ45 male, straight, 8-pin to a RJ45 male, straight, 8-pin, 24 AWG TPE cable, stranded/shielded, 2 twisted bonded pairs with teal jacket

Data Sheet
Share

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Shielded
Rated Voltage: 42 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 30 V AC/ 42 V DC
Rated Current*: 1.5 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

Technical Data Side 1

Product Sub Family: RJ45
Type of Contact / Gender: Male
Connector Design: Straight
Attachment Type: Plug
Number of Pins: 8 (4 terminated)
Coding: RJ45
Mating Cycles: ≤ 750
Ambient Temperature (Operation)*: - 40 °C - + 70 °C
Protection Degree / IP Rating**: IP20
Contact Base Material: P / CuSN
Contact Plating: Au
Contact Bearer Material: Polycarbonate
Contact Bearer Color: Clear
Molded Body Material: Elastomer Polyolefin
Molded Body Color: Black

Cable Data

Cable Type: 500
Cable Number: YM57530
Conductor Size: 24 AWG
Number of Wires: 2 Pair (bonded twisted pairs)
Minimal Bending Radius (Fixed Inst): 5 x D
Minimal Bending Radius (Flexible Inst): 10 x D
Cycles (Bending): 3
Cycles (Torsion): ˃ 5 M @ ± 360 °/1 m
Cable Jacket Material: TPE
Cable Jacket Color: Teal
Cable Diameter D: ø 7.62 mm
Wire Insulation Material: Polyolefin
Insulated Wire Diameter: ø 1.02 ± 0.05 mm
Overall Shield (Cable): TC Braid 65%
Foil shield: Al Foil 100%
Ambient Temperature (Fixed Installation): - 40 °C - + 75 °C
Ambient Temperature (Flex Installation): - 25 °C - + 75 °C
Ambient Temperature (Drag Chain Inst): - 25 °C - + 60 °C
UL Cable Type: AWM 20626, 80C 600 V
Cable Characteristics: NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2, Category 5e, Indoor/Outdoor Yes, Oil Res

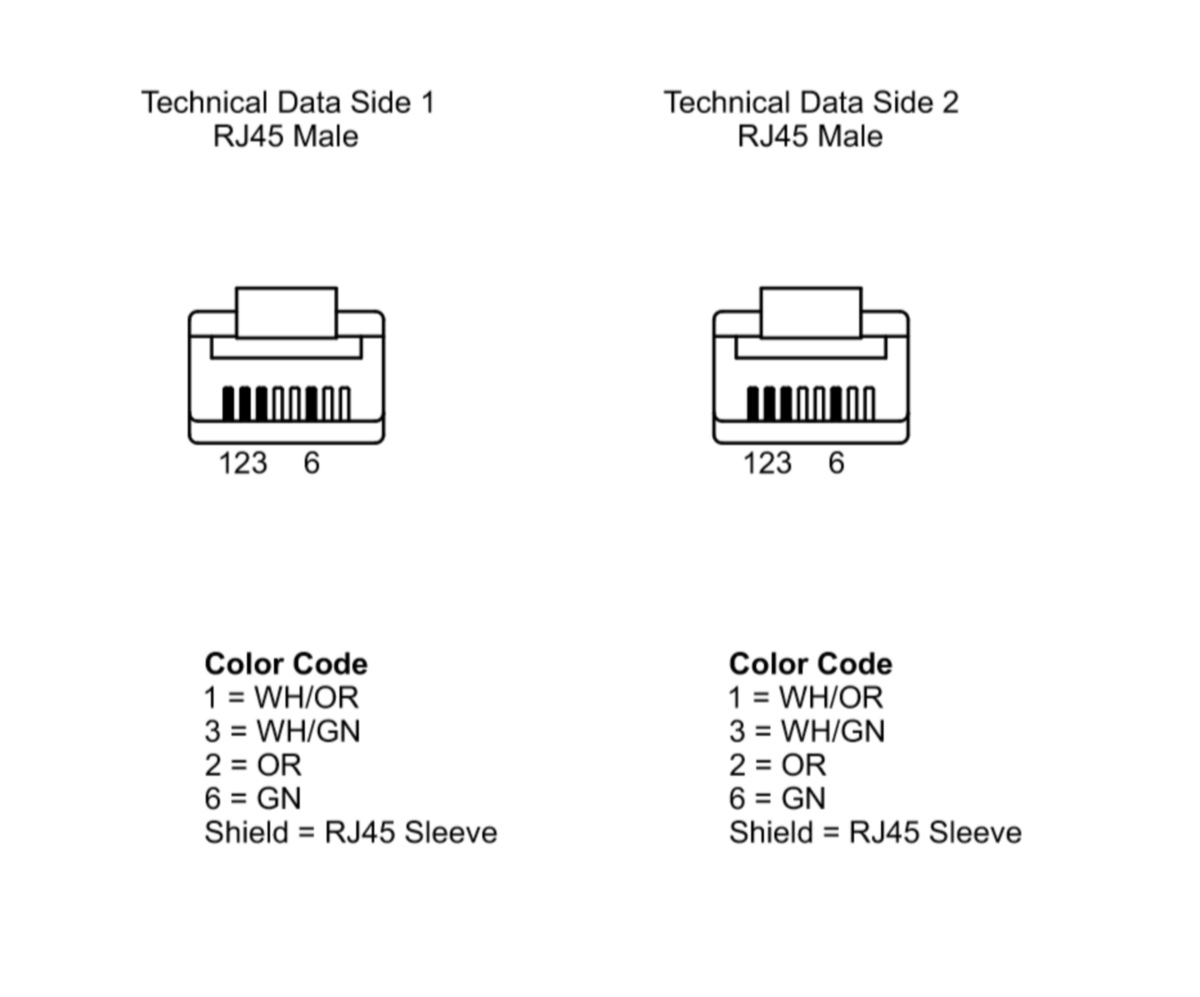

Core Colors: Bonded Twisted pairs: wh/or | wh/gn

Technical Data Side 2

Product Sub Family, Side 2: RJ45
Type of Contact / Gender, Side 2: Male
Connector Design, Side 2: Straight
Attachment Type, Side 2: Plug
Number of Pins, Side 2: 8 (4 terminated)
Coding, Side 2: RJ45
Mating Cycles, Side 2: ≤ 750
Ambient Temperature (Operation), Side 2*: - 40 °C - + 70 °C
Protection Degree / IP Rating, Side 2**: IP20
Contact Base Material, Side 2: P / CuSN
Contact Plating, Side 2: Au
Contact Bearer Material, Side 2: Polycarbonate
Contact Bearer Color, Side 2: Clear
Molded Body Material, Side 2: Elastomer Polyolefin
Molded Body Color, Side 2: Black

Safety & Environmental Compliance

RoHS Compliant: Yes

Resistances

Oil Resistance: Yes

Notes

Note Derating: Notice derating

History

Update and Revision: Revision Number: 0.37 Revision Date: 08-25-2022
Variants
Item #Item DescriptionCable Length
9000050440985 YM57530 500/0.2M0.2 m
9000048520985 YM57530 500/0.3M0.3 m
9000041630985 YM57530 500/0.5M0.5 m
9000042350985 YM57530 500/3.5M0.5 m
9000048530985 YM57530 500/0.6M0.6 m
9000041640985 YM57530 500/1M1 m
9000041650985 YM57530 500/2M2 m
9000041660985 YM57530 500/3M3 m
9000050240985 YM57530 500/4M4 m
9000041670985 YM57530 500/5M5 m
9000162810985 YM57530 500/6M6 m
9000162800985 YM57530 500/7M7 m
9000162520985 YM57530 500/8M8 m
9000041680985 YM57530 500/10M10 m
9000162540985 YM57530 500/13M13 m
9000041690985 YM57530 500/15M15 m
9000041700985 YM57530 500/20M20 m
9000044220985 YM57530 500/25M25 m
9000044230985 YM57530 500/30M30 m
9000044240985 YM57530 500/35M35 m
9000044250985 YM57530 500/40M40 m
9000044260985 YM57530 500/45M45 m
9000044270985 YM57530 500/50M50 m
9000044280985 YM57530 500/55M55 m
9000050100985 YM57530 500/60M60 m
9000044290985 YM57530 500/65M65 m
9000044300985 YM57530 500/75M75 m
9000161890985 YM57530 500/80M80 m
No accessories are available for this product
