(4)Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45 coded-black to male straight RJ45-coded, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm²
| Product Family: | Data Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding Type: | Shielded |
| Voltage Rating: | 42 V |
| Rated Impulse Voltage: | 1.5 kV |
| Current Rating: | 1.5 A |
| Data Transmission Type: | Fast Ethernet Cat 5e |
| Data Transmission Rate: | 100 Mbit/s |

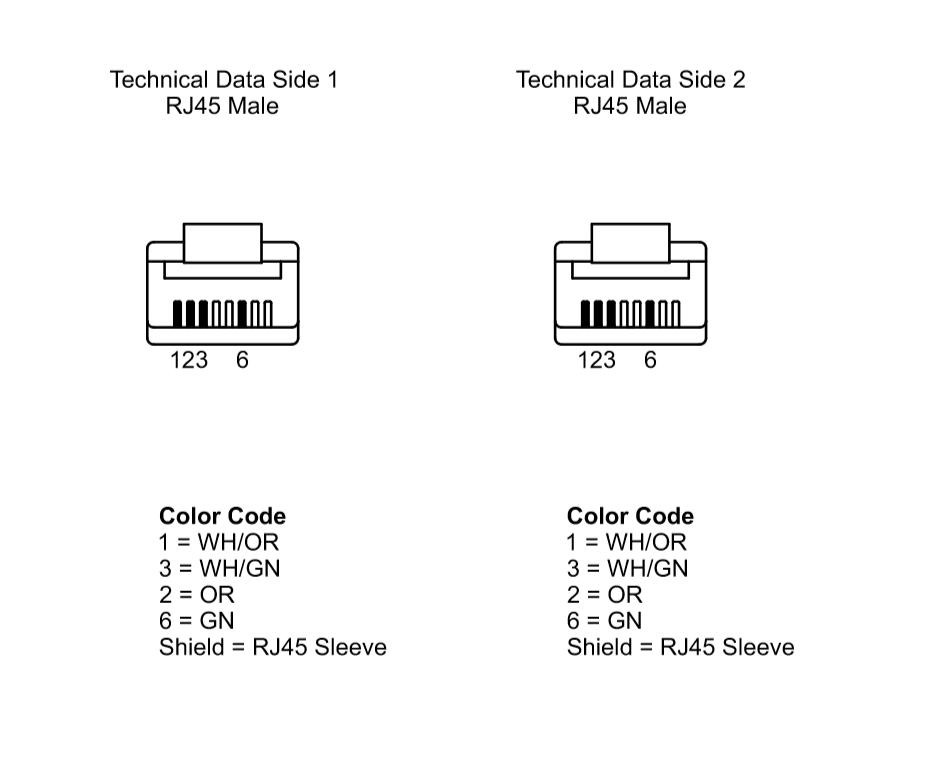

| Side 1 Product Sub Family: | RJ45 |
| Side 1 Type of Contact/Gender: | Male |
| Connector Design: | Striaght |
| Attachment Type: | Plug |
| Number of Pins: | 8 (4 terminated) |
| Coding, Side 1: | RJ45 |
| Mating Cycles: | ≤ 750 |
| Ambient Temperature (Operation)*: | - 40 °C - + 70 °C |
| Protection Degree / IP Rating**: | IP20 |
| Contact Base Material: | P / CuSn |
| Side 1 Contact Plating: | Au |
| Contact Bearer Material: | Polycarbonate |
| Contact Bearer Color: | Clear |
| Molded Body Material: | Elastomer Polyolefin |
| Molded Body Color: | Black |
| Cable Number: | 542 |
| Conductor Size: | 0.38 mm² |
| Number of Wires: | 4 |
| Minimal Bending Radius (Fixed Inst): | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst): | ˃ 60 mm |
| Cycles (Bending): | ˃ 5 M |
| Conductor Material: | Cu |
| Cable Jacket Material: | TPE |
| Cable Jacket Color: | green matt similarly RAL 6018 |
| Cable Diameter D: | ø 6.50 ± 0.20 mm |
| Wire Insulation Material: | PP |
| Insulated Wire Diameter: | ø 1.50 mm |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Foil shield: | Al-PT Foil |
| Ambient Temperature (Fixed Installation): | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation): | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
| Flammability Class (Cable Jacket): | CM (UL 1685) |
| Cable Characteristics: | Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200 |
| Core Colors: | white, blue, yellow, orange |
| Side 2 Product Sub Family: | RJ45 |
| Side 2 Type of Contact/Gender: | Male |
| Connector Design, Side 2: | Straight |
| Attachment Type, Side 2: | Plug |
| Number of Pins, Side 2: | 8 (4 terminated) |
| Coding, Side 2: | RJ45 |
| Mating Cycles, Side 2: | ≤ 750 |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 70 °C |
| Contact Base Material, Side 2: | P /CuSN |
| Contact Bearer Material, Side 2: | Polycarbonate |
| Contact Bearer Color, Side 2: | Clear |
| Molded Body Material, Side 2: | Elastomer Polyolefin |
| Molded Body Color, Side 2: | Black |
| RoHS Compliant: | yes |
| Oil Resistance: | UL OIL RES I |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note Derating: | Notice Derating |
| Update and Revision: | Revision Number: 0.20 Revision Date: 04-24-2026 |
