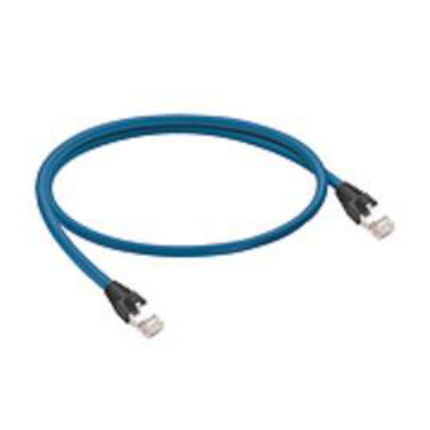

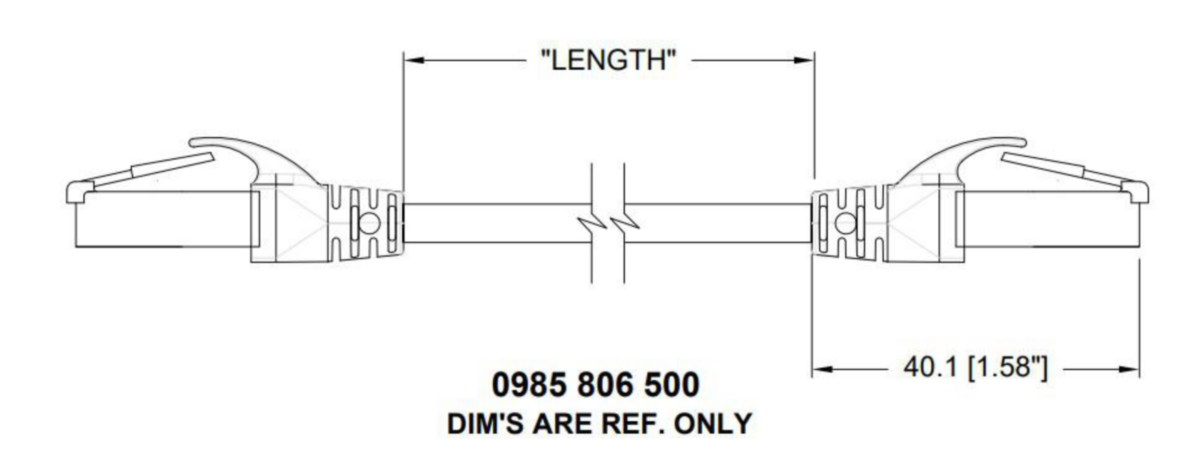

0985 806 500 - Fast Ethernet Cat 5e, high-flex, double-ended cord set, RJ45 male, straight to RJ45 male straight, 4-pin, 24 AWG TPE cable, stranded/unshielded, 2 twisted bonded pair with teal jacket.





Fast Ethernet Cat 5e, high-flex, double-ended cord set, RJ45 male, straight to RJ45 male straight, 4-pin, 24 AWG TPE cable, stranded/unshielded, 2 twisted bonded pair with teal jacket.

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Unshielded
Rated Voltage: 60 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 1.5 A
Rated Current*: 1.5 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

Technical Data Side 1

Product Sub Family: RJ 45
Type of Contact / Gender: Pin Contact / Male
Connector Design: Straight
Attachment Type: Plug
Number of Pins: 8 (4 terminated)
Coding: D
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: 250V
Mating Cycles: ≤ 100
Ambient Temperature (Operation)*: - 40 °C - + 75 °C
Protection Degree / IP Rating**: IP20
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material: Plastic / Copper and Tin (CuSn)
Contact Plating: Gold
Contact Bearer Material: Polycarbonate
Contact Bearer Color: Clear
Flammability Class (Contact Bearer): UL 94 HB
Molded Body Material: Elastomer Polyolefin
Molded Body Color: Black
Flammability Class (Molded Body): UL 94 HB

Cable Data

Cable Number: 806
Conductor Size: 24 AWG
Number of Wires: 4 (2 twisted pairs)
Minimal Bending Radius (Fixed Inst): .250"
Cycles (Bending): ˃ 2 M
Conductor material: Cu
Cable Jacket Material: Thermoplastic Elastomer (TPE)
Cable Jacket Color: Teal
Cable Diameter D: .275"
Wire Insulation Material: PO
Insulated Wire Diameter: .037"
Ambient Temperature (Fixed Installation): -50°C + 75°C
UL Cable Type: Cat 5e
Flammability Class (Cable Jacket): UL: CMR / CSA: CMG

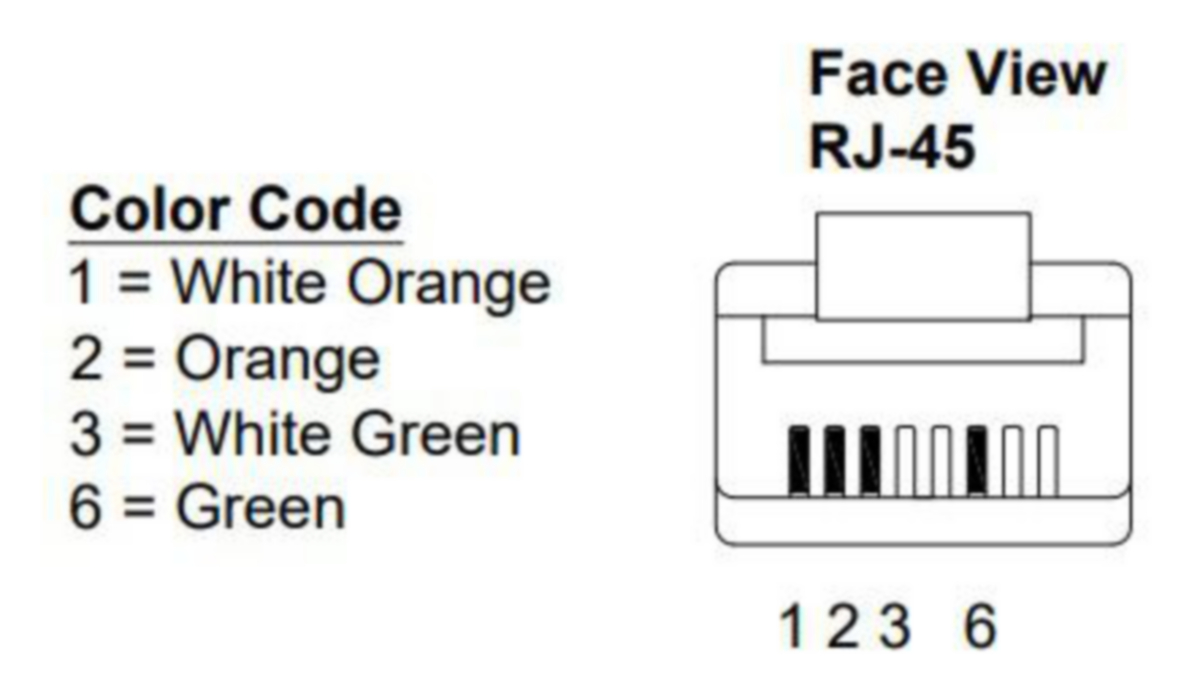

Core Colors: White / Orange, White / Green, Orange, Green

Technical Data Side 2

Product Sub Family, Side 2: RJ45
Type of Contact / Gender, Side 2: Pin Contact / Male
Connector Design, Side 2: Straight
Attachment Type, Side 2: Plug
Number of Pins, Side 2: 4
Coding, Side 2: D
Contact Resistance, Side 2: ≤ 10 mOhm
Insulation Resistance, Side 2: ˃ 10^9 Ohm
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 20 °C - + 60 °C
Protection Degree / IP Rating, Side 2**: IP20
Design Standard, Side 2: IEC 60603-7
Pollution Degree, Side 2: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2: Phosphorus / Copper and Tin (CuSn)
Contact Plating, Side 2: Gold
Contact Bearer Material, Side 2: Polycarbonate
Contact Bearer Color, Side 2: Clear
Flammability Class (Contact Bearer), Side 2: UL 94 HB
Molded Body Material, Side 2: Elastomer Polyolefin
Molded Body Color, Side 2: Clear
Flammability Class (Molded Body), Side 2: UL 94 HB

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating: Notice derating

History

Update and Revision: Revision Number: 0.32 Revision Date: 07-07-2025
Variants
Item #Item DescriptionCable Length
9000048560985 806 500/0.3M0.3 m
9000041030985 806 500/0.5M0.5 m
9000048570985 806 500/0.6M0.6 m
9000041060985 806 500/1M1 m
9000165010985 806 500/1.5M1.5 m
9000041090985 806 500/2M2 m
9000041120985 806 500/3M3 m
9000045460985 806 500/4M4 m
9000041130985 806 500/5M5 m
9000045470985 806 500/6M6 m
9000162310985 806 500/8M8 m
9000041040985 806 500/10M10 m
9000045480985 806 500/12M12 m
9000041050985 806 500/15M15 m
9000045490985 806 500/18M18 m
9000041070985 806 500/20M20 m
9000041080985 806 500/25M25 m
9000041100985 806 500/30M30 m
9000041110985 806 500/35M35 m
9000045500985 806 500/40M40 m
9000162840985 806 500/45M45 m
9000045510985 806 500/50M50 m
9000164050985 806 500/55M55 m
9000161500985 806 500/60M60 m
9000161510985 806 500/70M70 m
9000050680985 806 500/80M80 m
0985 806 500_CAD.zip
No accessories are available for this product
