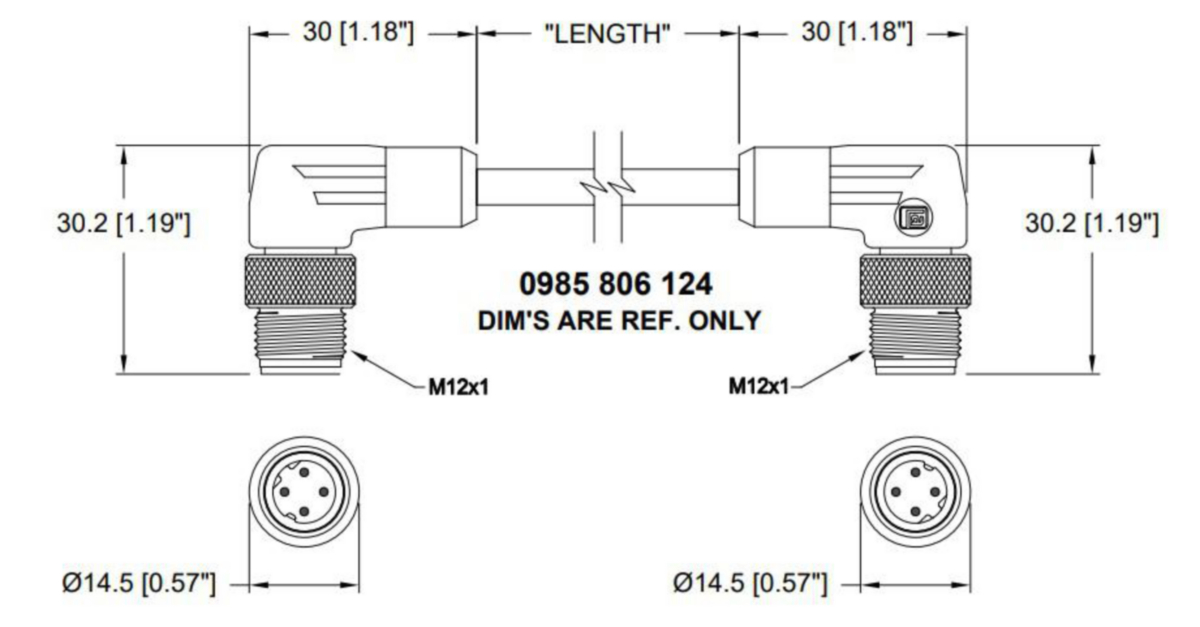

0985 806 124 - Fast Ethernet Cat 5e, high-flex, double-ended cord set, M12 male, right angle to M12 male right angle, 4-pin, D-coding, 24 AWG TPE cable, stranded/unshielded, 2 twisted bonded pair with teal jacket.





Fast Ethernet Cat 5e, high-flex, double-ended cord set, M12 male, right angle to M12 male right angle, 4-pin, D-coding, 24 AWG TPE cable, stranded/unshielded, 2 twisted bonded pair with teal jacket.

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Unshielded
Rated Voltage: 60 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 250V
Rated Current*: 4 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

Technical Data Side 1

Product Sub Family: M12 Standard
Type of Contact / Gender: Pin Contact / Male
Connector Design: Angled
Attachment Type: Coupling Screw
Number of Pins: 4
Coding: D
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: 250V
Mating Cycles: ≤ 100
Cable Gland: M 22x2
Ambient Temperature (Operation)*: - 40 °C - + 75 °C
Protection Degree / IP Rating**: IP68
Design Standard: IEC 61076-2-101
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material: Copper and Tin (CuSn)
Contact Plating: Copper over Gold (Cu/Au)
Contact Bearer Material: Thermoplastic Polyurethane (TPU)
Contact Bearer Color: Black
Flammability Class (Contact Bearer): UL 94 HB
Molded Body Material: TPU
Molded Body Color: Black
Flammability Class (Molded Body): UL 94 HB
Housing Material: PA 66-GF 25
Housing Color: black
Attachment Material: Brass (Cu/Zn)
Attachment Plating: Nickel (Ni)
O-Ring Material: NBR
Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight
Accessories to Order Separately: can be plugged into CA 6 LS, CA 6 GS;brcap CA 00 SD 3,brorder no. 831 532-400

Cable Data

Cable Number: 806
Conductor Size: 24 AWG
Number of Wires: 4 (2 twisted pairs)
Minimal Bending Radius (Fixed Inst): .250"
Cycles (Bending): ˃ 2 M
Conductor material: Cu
Cable Jacket Material: Thermoplastic Elastomer (TPE)
Cable Jacket Color: Teal
Cable Diameter D: .275"
Wire Insulation Material: PO
Insulated Wire Diameter: .037"
Ambient Temperature (Fixed Installation): -50°C + 75°C
UL Cable Type: Cat 5e
Flammability Class (Cable Jacket): UL: CMR / CSA: CMG

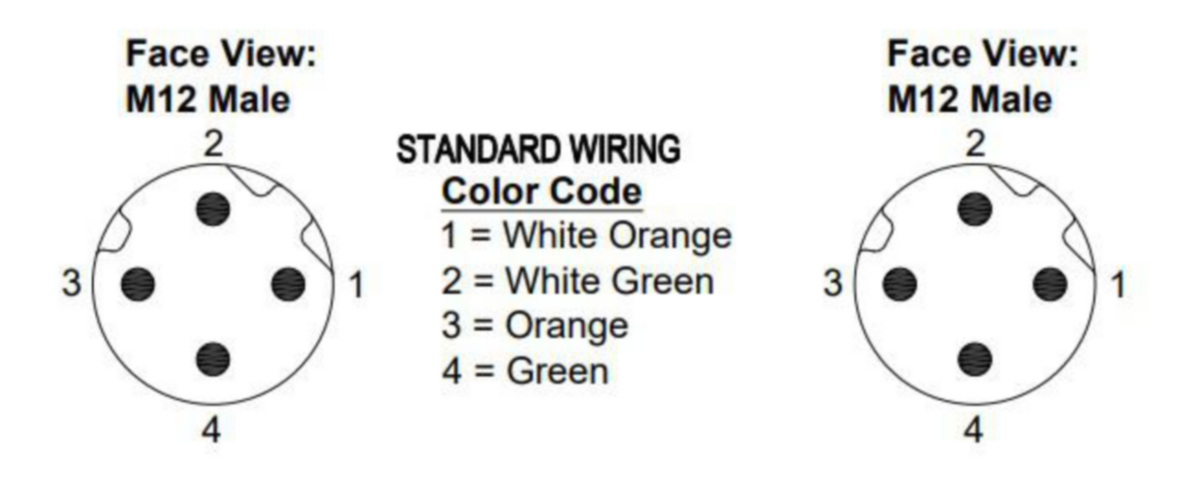

Core Colors: White / Orange, White / Green, Orange, Green

Technical Data Side 2

Product Sub Family, Side 2: M12 Standard
Type of Contact / Gender, Side 2: Pin Contact / Male
Connector Design, Side 2: Angled
Attachment Type, Side 2: Coupling Screw
Number of Pins, Side 2: 4
Coding, Side 2: D
Contact Resistance, Side 2: ≤ 10 mOhm
Insulation Resistance, Side 2: ˃ 10^9 Ohm
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 40 °C - + 75 °C
Protection Degree / IP Rating, Side 2**: IP68
Design Standard, Side 2: IEC 61076-2-101
Pollution Degree, Side 2: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2: Copper and Tin (CuSn)
Contact Plating, Side 2: Copper over Gold (Cu/Au)
Contact Bearer Material, Side 2: Thermoplastic Polyurethane (TPU)
Contact Bearer Color, Side 2: Black
Flammability Class (Contact Bearer), Side 2: UL 94 HB
Molded Body Material, Side 2: Thermoplastic Polyurethane (TPU)
Molded Body Color, Side 2: Black
Flammability Class (Molded Body), Side 2: UL 94 HB
Attachment Material, Side 2: Brass (Cu/Zn)
Attachment Plating, Side 2: Nickel (Ni)
Fastening Torque (Attachment), Side 2: M 12x1: (50-60) Ncm, hand-tight

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating: Notice derating

History

Update and Revision: Revision Number: 0.40 Revision Date: 07-07-2025
Variants
Item #Item DescriptionCable Length
9000050290985 806 124/0.15M0.15 m
9000042470985 806 124/0.3M0.3 m
9000041750985 806 124/0.5M0.5 m
9000045630985 806 124/0.6M0.6 m
9000041780985 806 124/1M1 m
9000041800985 806 124/2M2 m
9000045640985 806 124/3M3 m
9000045650985 806 124/4M4 m
9000041860985 806 124/5M5 m
9000045660985 806 124/6M6 m
9000045670985 806 124/7M7 m
9000045680985 806 124/8M8 m
9000045690985 806 124/9M9 m
9000041760985 806 124/10M10 m
9000045700985 806 124/12M12 m
9000045710985 806 124/14M14 m
9000041770985 806 124/15M15 m
9000045720985 806 124/18M18 m
9000041790985 806 124/20M20 m
9000045730985 806 124/24M24 m
9000045740985 806 124/25M25 m
9000045750985 806 124/27M27 m
9000041810985 806 124/30M30 m
9000041820985 806 124/35M35 m
9000041830985 806 124/40M40 m
9000041840985 806 124/45M45 m
9000041850985 806 124/50M50 m
9000045760985 806 124/55M55 m
9000041870985 806 124/60M60 m
9000045770985 806 124/65M65 m
9000041880985 806 124/70M70 m
9000045780985 806 124/75M75 m
9000041890985 806 124/80M80 m
9000045790985 806 124/85M85 m
0985 806 124_CAD.zip
No accessories are available for this product
