0985 806 104 - Fast Ethernet Cat 5e, high-flex, double-ended cord set, M12 female 4-pin, D-coded receptacle to male RJ45, 24 AWG, teal TPE jacket, stranded/unshielded with 2 bonded twisted pairs.





Fast Ethernet Cat 5e, high-flex, double-ended cord set, M12 female 4-pin, D-coded receptacle to male RJ45, 24 AWG, teal TPE jacket, stranded/unshielded with 2 bonded twisted pairs.

Data Sheet
Share

Product Description

Product Family: Data Connectors
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Unshielded
Rated Voltage: 60 V
Rated Impulse Voltage: 1.5 kV
Operating Voltage: 30 V AC / 42 V DC
Rated Current*: 1.5 A
Data Transmission: Fast Ethernet Cat5e
Data Transmission Rate: 100 Mbit/s

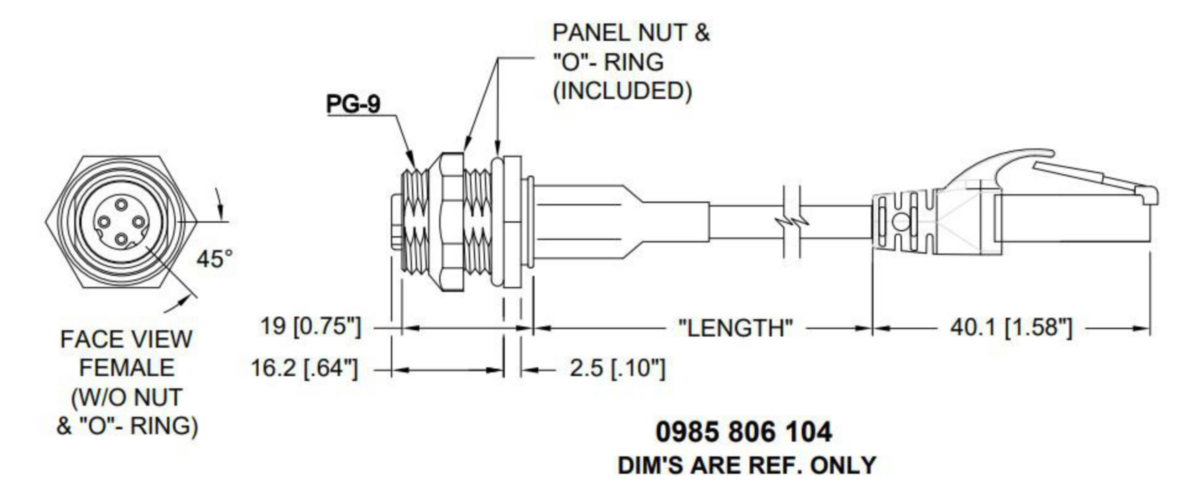

Technical Data Side 1

Product Sub Family: M12 Overmolded Receptacle
Type of Contact / Gender: Socket Contact / Female
Connector Design: Straight
Attachment Type: Coupling Screw
Number of Pins: 4
Coding: D
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: 250V
Mating Cycles: ≤ 100
Cable Gland: PG 11
Ambient Temperature (Operation)*: - 20 °C - + 60 °C
Temperature Range (Gasket): gasket see Accessories
Protection Degree / IP Rating**: IP68
Design Standard: IEC 61076-2-101
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Clearance / Creepage Distance: EN 60664-1 (2003/11); VDE 0110-1
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material: Copper and Tin (CuSn)
Contact Plating: Copper over Gold (Cu/Au)
Contact Bearer Material: Thermoplastic Polyurethane (TPU)
Contact Bearer Color: Black
Flammability Class (Contact Bearer): UL 94 HB
Molded Body Material: TPU
Molded Body Color: Black
Flammability Class (Molded Body): UL 94 HB
Housing Color: see standard article
Attachment Material: Brass (Cu/Zn)
Attachment Plating: Nickel (Ni)
Gasket Material: SBR/NBR, cable gland
Fastening Torque (Cable Gland): PG11: (250-375) Ncm
Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable Number: 806
Conductor Size: 24 AWG
Number of Wires: 4 (2 twisted pairs)
Minimal Bending Radius (Fixed Inst): .250"
Cycles (Bending): ˃ 2 M
Conductor material: Cu
Cable Jacket Material: Thermoplastic Elastomer (TPE)
Cable Jacket Color: Teal
Cable Diameter D: .275"
Wire Insulation Material: PO
Insulated Wire Diameter: .037"
Ambient Temperature (Fixed Installation): -50°C + 75°C
UL Cable Type: Cat 5e
Flammability Class (Cable Jacket): UL: CMR / CSA: CMG

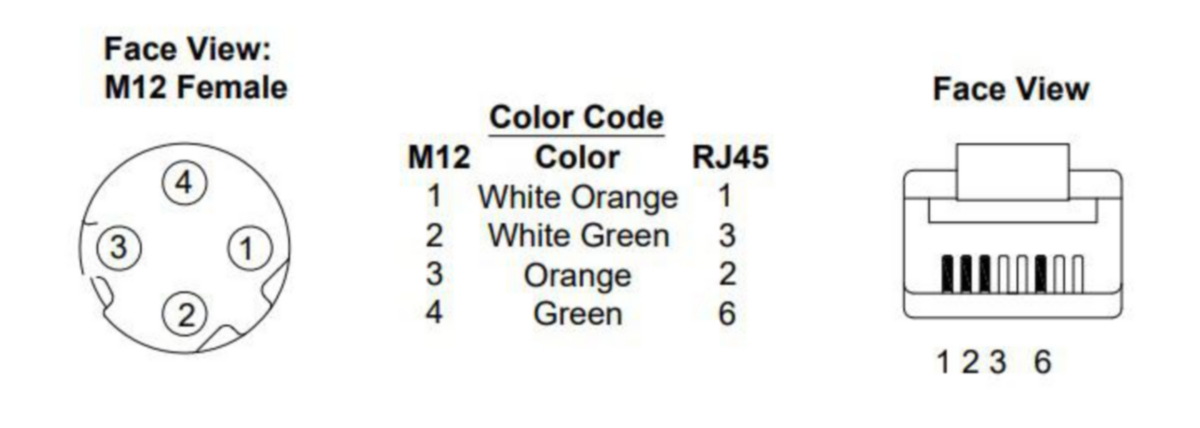

Core Colors: White / Orange, White / Green, Orange, Green

Technical Data Side 2

Product Sub Family, Side 2: RJ45
Type of Contact / Gender, Side 2: Pin Contact / Male
Connector Design, Side 2: Straight
Attachment Type, Side 2: Plug
Number of Pins, Side 2: 4
Coding, Side 2: D
Contact Resistance, Side 2: ≤ 10 mOhm
Insulation Resistance, Side 2: ˃ 10^9 Ohm
Mating Cycles, Side 2: ≤ 100
Ambient Temperature (Operation), Side 2*: - 20 °C - + 60 °C
Protection Degree / IP Rating, Side 2**: IP20
Design Standard, Side 2: IEC 60603-7
Pollution Degree, Side 2: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category, Side 2: III acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Base Material, Side 2: Phosphorus / Copper and Tin (CuSn)
Contact Plating, Side 2: Gold
Contact Bearer Material, Side 2: Polycarbonate
Contact Bearer Color, Side 2: Clear
Flammability Class (Contact Bearer), Side 2: UL 94 HB
Molded Body Material, Side 2: Elastomer Polyolefin
Molded Body Color, Side 2: Clear
Flammability Class (Molded Body), Side 2: UL 94 HB

Safety & Environmental Compliance

RoHS Compliant: yes

Notes

Protection Degree / IP Rating Note: IP Rating tested according to IEC standard using combination of a Hirschmann or Lumberg Automation connector mounted and locked
Note Derating: Notice derating

History

Update and Revision: Revision Number: 0.42 Revision Date: 07-07-2025
Variants
Item #Item DescriptionCable Length
9000050800985 806 104/0.2M0.2 m
9000044650985 806 104/0.3M0.3 m
9000040880985 806 104/0.5M0.5 m
9000048550985 806 104/0.6M0.6 m
9000040930985 806 104/1M1 m
9000040950985 806 104/2M2 m
9000044660985 806 104/3M3 m
9000044670985 806 104/4M4 m
9000040960985 806 104/5M5 m
9000040970985 806 104/6M6 m
9000162930985 806 104/7M7 m
9000164320985 806 104/8M8 m
9000040890985 806 104/10M10 m
9000040900985 806 104/12M12 m
9000040910985 806 104/14M14 m
9000044680985 806 104/15M15 m
9000040920985 806 104/16M16 m
9000162350985 806 104/19M19 m
9000040940985 806 104/20M20 m
9000162820985 806 104/23M23 m
9000044690985 806 104/25M25 m
9000162360985 806 104/27M27 m
9000050230985 806 104/30M30 m
9000162370985 806 104/31M31 m
9000161780985 806 104/35M35 m
9000162420985 806 104/40M40 m
CAD Data
0985 806 104_CAD.zip
Download
