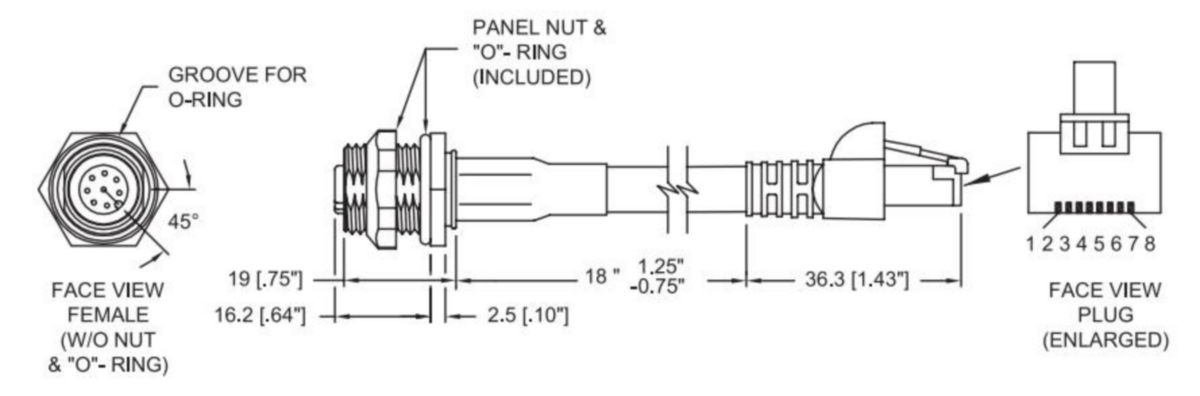

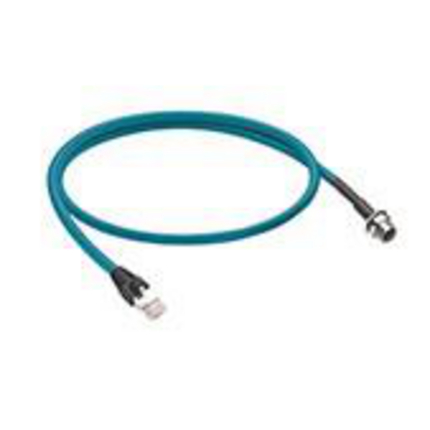

(4)EtherMATE - Industrial Ethernet, double-ended cord set, high-flex, M12 female receptacle to RJ45 male, 4-pair, 24 AWG, PVC cable, stranded/shielded, with teal jacket.
| Product Family: | Data Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Voltage Rating: | 60 V |
| Rated Impulse Voltage: | 1.5 kV |
| Data Transmission Type: | Fast Ethernet Cat5e |
| Data Transmission Rate: | 100 Mbit/s |

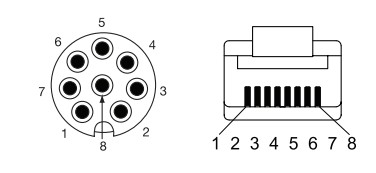

| Side 1 Product Sub Family: | M12 Overmolded Receptacle |
| Side 1 Type of Contact/Gender: | Socket Contact / Female |
| Connector Design: | Straight |
| Attachment Type: | Coupling Screw |
| Number of Pins: | 4 |
| Coding, Side 1: | D |
| Side 1 Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Cross Section: | 24 AWG |
| Ambient Temperature (Operation)*: | - 20 °C to + 75 °C |
| Protection Degree / IP Rating**: | IP67 |
| Side 1 Design Standard: | IEC 61076-2-101 |
| Side 1 Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Clearance / Creepage Distance: | EN 60664-1 (2003/11); VDE 0110-1 |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuZn |
| Side 1 Contact Plating: | Ni/Au |
| Contact Bearer Material: | PUR |
| Contact Bearer Color: | Black |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Molded Body Material: | PUR, black |
| Attachment Material: | Brass (Cu/Zn) |
| Cable Type: | 104 |
| Cable Number: | 656 |
| Conductor Size: | 24 AWG |

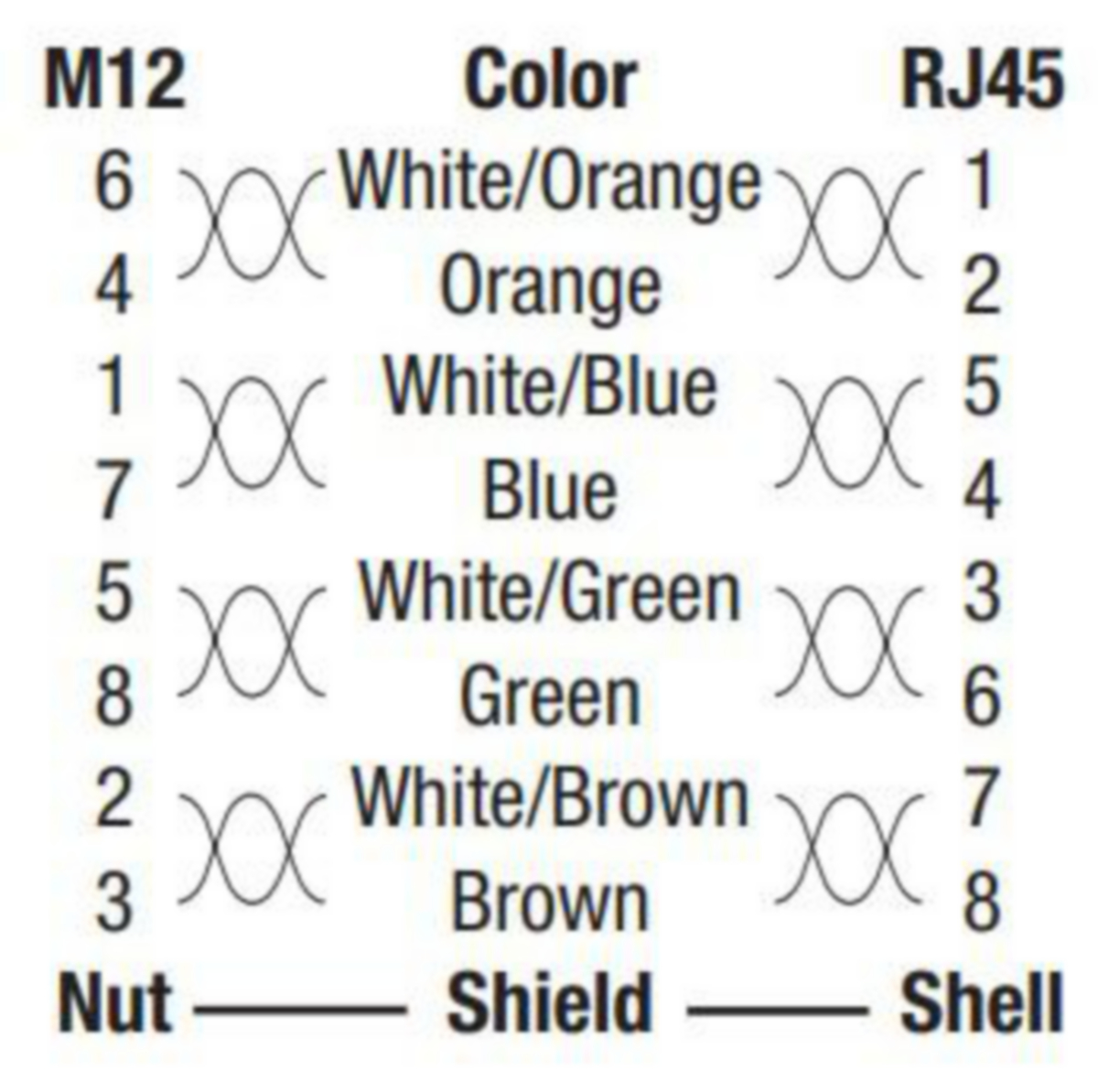

| Number of Wires: | 4 (2 twisted pairs) |
| Cycles (Bending): | ˃ 2 M |
| Cycles (Torsion): | 5 M |
| Conductor Material: | Cu |
| Cable Jacket Material: | PVC |
| Cable Jacket Color: | Teal |
| Cable Diameter D: | 0.77 mm |
| Wire Insulation Material: | Polyethylene |
| Foil shield: | Aluminum/polypropylene tape, 100% coverage |
| UL Cable Type: | Cat 5e |
| Side 2 Product Sub Family: | RJ45 |
| Side 2 Type of Contact/Gender: | Pin Contact / Male |
| Connector Design, Side 2: | Straight |
| Attachment Type, Side 2: | Plug |
| Number of Pins, Side 2: | 4 |
| Coding, Side 2: | D |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Mating Cycles, Side 2: | ≤ 100 |
| Ambient Temperature (Operation), Side 2*: | - 20 °C to + 675 °C |
| Protection Degree / IP Rating, Side 2**: | IP20 |
| Design Standard, Side 2: | IEC 60603-7 |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | Phosphorus / Copper and Tin (CuSn) |
| Contact Plating, Side 2: | Ni/Au |
| Contact Bearer Material, Side 2: | Polycarbonate |
| Contact Bearer Color, Side 2: | Clear |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| RoHS Compliant: | yes |
| Note Derating: | Notice derating |
| Update and Revision: | Revision Number: 0.42 Revision Date: 10-06-2026 |
| Item # | Item Description | Cable Length | Color |
|---|---|---|---|
| 900005041 | 0985 656 104/20M | ||
| TJNPI00857 | 0985 656 104/0.5M | ||
| 900000463 | 0985 656 104/0.5M | 0.5 m | Color, Match Request |
| 900000451 | 0985 656 104/1M | 1 m | Color, Match Request |
| 900000452 | 0985 656 104/2M | 2 m | Color, Match Request |
| 900000453 | 0985 656 104/3M | 3 m | Color, Match Request |
| 900000612 | 0985 656 104/6M | 6 m | |
| 900000475 | 0985 656 104/10M | 10 m | Color, Match Request |
