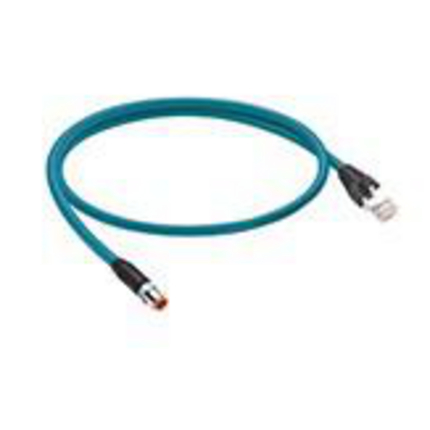

(4)EtherMATE - Industrial Ethernet double-ended cord set, high-flex, male, M12 to RJ45 straight, 4-pair, 24 AWG, PVC cable, stranded/shielded with teal jacket and orange inserts.
| Brand: | Lumberg Automation |
| Side 1 Type of Contact/Gender: | pin |
| Contact Base Material: | RJ45: 50µ" gold in contact area over nickelt plating / M12: Brass, gold over nickel plated |
| Molded Body Material: | PUR, black |
| Attachment Plating: | Brass, nickel plated |
| Cable Type: | 103 |
| Cable Number: | 656 |
| Cable Diameter D: | 7.77 mm nominal |
| Foil shield: | Aluminum/polypropylene tape, 100% coverage |
| Update and Revision: | Revision Number: 0.27 Revision Date: 01-09-2026 |
| Item # | Item Description | Cable Length | Color |
|---|---|---|---|
| 900005082 | 0985 656 103/50M | ||
| TJNPI00858 | 0985 656 103/5M | ||
| 900000593 | 0985 656 103/0.3M | 0.3 m | Black |
| 900000594 | 0985 656 103/0.5M | 0.5 m | Black |
| 900000497 | 0985 656 103/1M | 1 m | Black |
| 900000536 | 0985 656 103/1.5M | 1.5 m | Black |
| 900000461 | 0985 656 103/2M | 2 m | Black |
| 900000498 | 0985 656 103/3M | 3 m | Black |
| 900000537 | 0985 656 103/4M | 4 m | Black |
| 900000499 | 0985 656 103/5M | 5 m | Black |
| 900000595 | 0985 656 103/10M | 10 m | Black |
| 900001551 | 0985 656 103/15M | 15 m | Black |
| 900002080 | 0985 656 103/20M | 20 m | Black |
