0985 508 120 - Fast Ethernet Cat5e Data Single-Ended Cordset: M12 Railway, male, straight, 4-pin, D-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; X-FRNC black cable, 4-wires, 0.34 mm²





Fast Ethernet Cat5e Data Single-Ended Cordset: M12 Railway, male, straight, 4-pin, D-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; X-FRNC black cable, 4-wires, 0.34 mm²

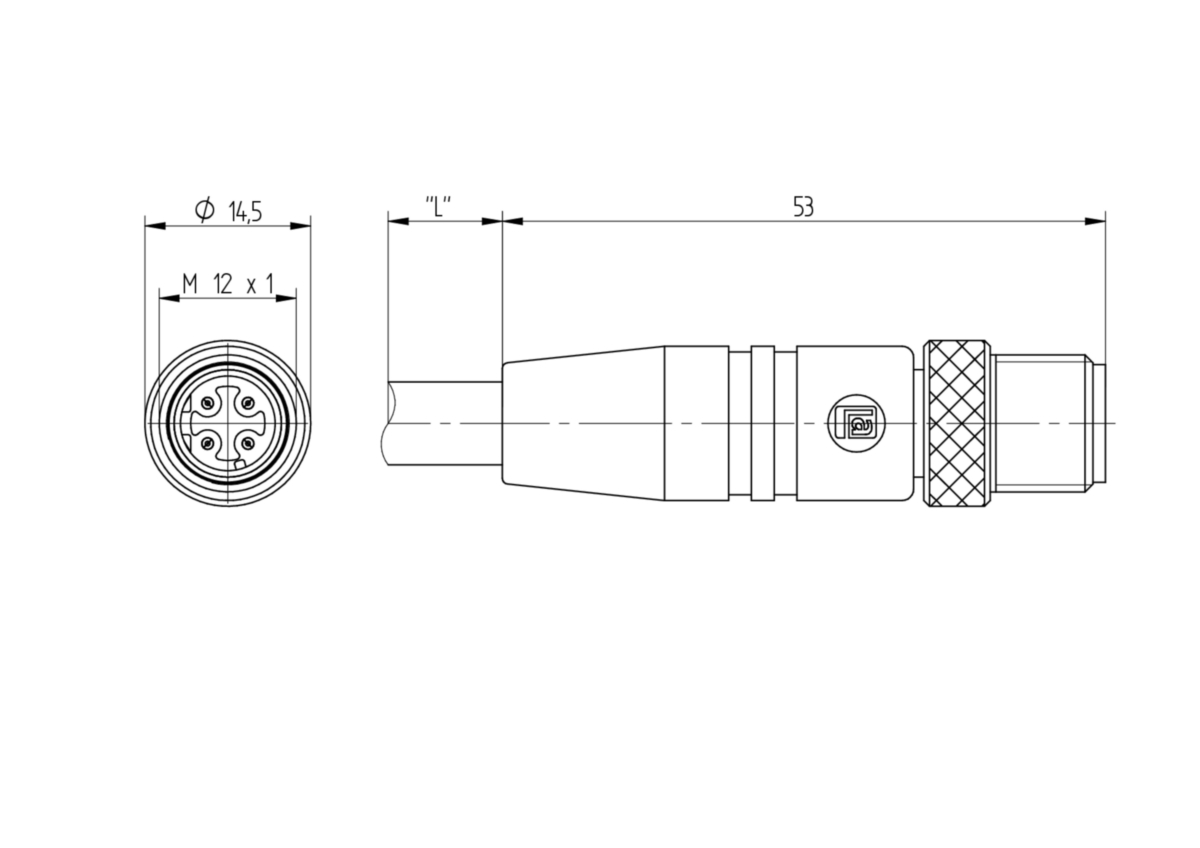

Face View
Pin 1Pin 2Pin 3Pin 4
yellowwhiteorangeblue

Technical Data

Family: Data Connectors
Sub Family: M12 Railway
Brand: Lumberg Automation
Connector Type: Cordset, single ended
Type of contact: Male
Connector Design: Straight
Number of contacts: 4
Coding: D
Shielding: Shielded
Attachment Type: Coupling Screw
Rated voltage: 60 V
Rated impulse voltage: 1.5 kV
Operating voltage: 50 V AC / 60 V DC
Rated current: 4 A
Data Transmission: Fast Ethernet Cat5e
Data transmission rate: 100 Mbit/s
Contact resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating cycles: ≤ 100
Operating temperature range: - 40 °C - + 90 °C
Protection Degree/IP Rating: IP65, IP67, IP69K
Standard: IEC 61076-2-101
Pollution degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Overvoltage Category: III acc. to DIN EN 60664-1 (VDE 0110-1)

Materials

Contact: CuSn
Contact plating: Cu/Au
Contact bearer material: PA
Contact bearer color: Black
Flammability Class (Contact Bearer): UL 94 V-0
Molded Body Material: PA
Molded Body Color: Black
Flammability Class (Molded Body): UL 94 V-0
Attachment Material: CuZn
Surface Coupling: Nickel-plated
Shielding Material: CuZn, tin-plated

Additional Technical Data

Fastening Torque (Attachment): M 12x1: (50-60) Ncm, hand-tight

Cable Data

Cable number: 508
Conductor size: 0.34 mm²
Number of wires: 4
Minimal bending radius (hard wired): ˃ 10 x D
Minimal bending radius (moved): ˃ 5 x D
Conductor Material: Cu
Cable jacket (Jacket): X-FRNC
Cable Jacket Color: black
Cable diameter D: ø 6.70 ± 0.30 mm
Wire Insulation Material: Polyolefin
Insulated Wire Diameter: ø 1.63 ± 0.05 mm
Overall Shield (Cable): Cu-ETP1 tinned
Foil shield: Al-PT Foil
Ambient Temperature (Fixed Installation): - 40 °C - + 90 °C
Ambient Temperature (Flex Installation): - 40 °C - + 90 °C
Ambient Temperature (Drag Chain Inst): - 5 °C - + 50 °C
Flammability Class (Cable Jacket): IEC 60332-1-2, EN50305, IEC60332-3-25 cat D; fire protection Railway vehicles: DIN 5510-2 protection level 1 to 4; CEN/TS 45545-2 HL1-HL3; smoke density acc. to DIN EN 61034-2, EN50268-2: T ˃70% ;toxicity (NF X70-100-1): CITc ˂ 0.7
Core Colors: white, blue, yellow, orange

Safety & Environmental Compliance

RoHS Compliant: yes

Resistances

Halogenfree: IEC 60754-1, EN 50267-1-2, HCL ˂ 0.4%
Rail: yes
Oil Resistance: IEC 60811-2-1, EN 50306 par 4.8, EN 50306 par 4.9, EN 50306 par 4.10

Notes

Rated Current Note: Notice derating
Protection Degree/IP Rating Note: ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
legend: Do not connect or disconnect under load.
Variants
Item #Item DescriptionCable Length
9346880150985 508 120/1 M1 m
9346880110985 508 120/2 M2 m
99370985 508 120/3 M3 m
173900985 508 120/4 M4 m
9346880120985 508 120/5 M5 m
173890985 508 120/6 M6 m
9346880130985 508 120/10 M10 m
9346880140985 508 120/15 M15 m
99420985 508 120/20 M20 m
155730985 508 120/30 M30 m
RSTS-4D-ThickLong.zip
No accessories are available for this product
