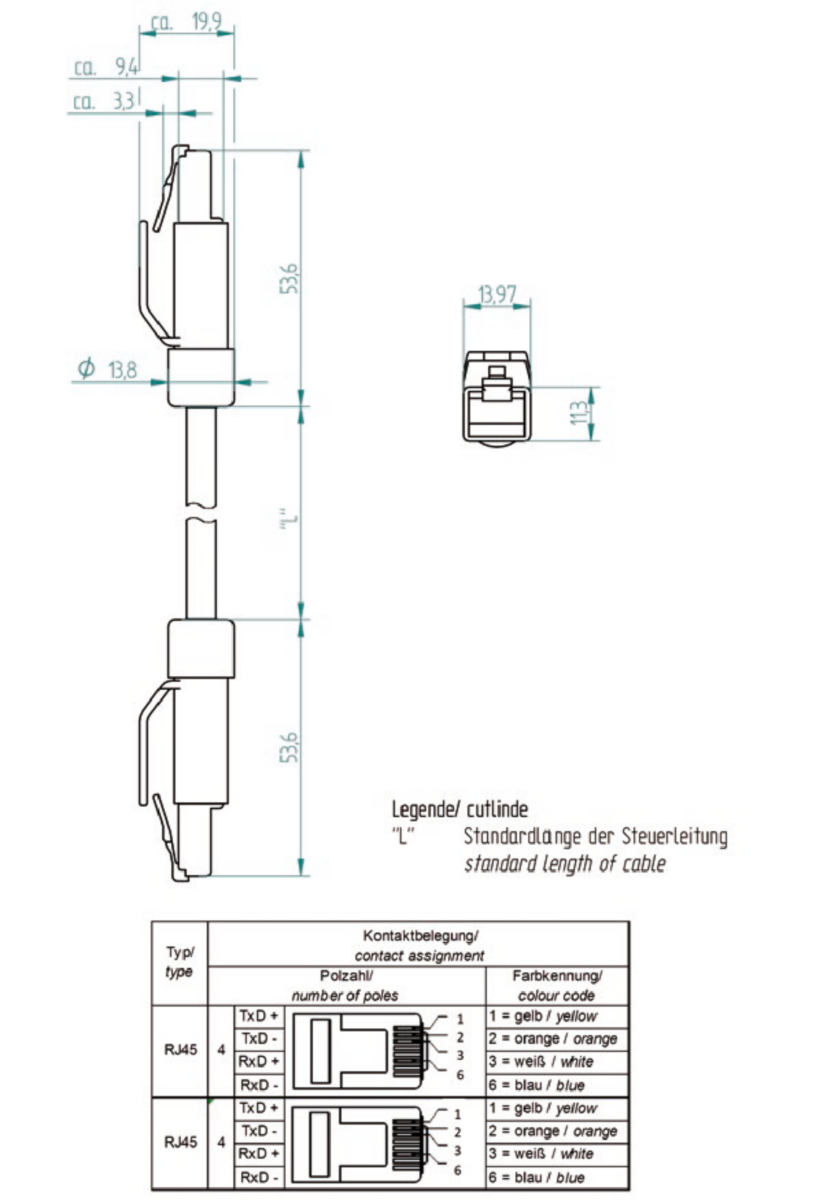

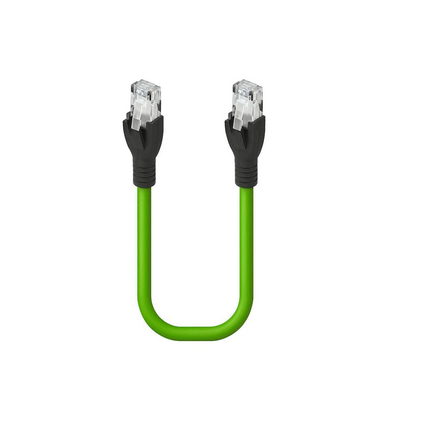

(4)Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight RJ45 Standard to male straight RJ45 Standard, shielded, 50 V AC / 60 V DC, 4 A; PUR green cable, 4-wires, 2x2x0.34 mm²
| Product Family: | Data Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | Cordset, double ended |
| Shielding Type: | Shielded |
| Voltage Rating: | AC: 30 V/ DC: 40 V |
| Rated Impulse Voltage: | 1.5 kV |
| Operating Voltage: | 30 V AC/ 42 V DC |
| Current Rating: | 1.5 A |
| Data Transmission Type: | Fast Ethernet Cat 5e |
| Data Transmission Rate: | 100 Mbit/s |
| Side 1 Type of Contact/Gender: | RJ45 |
| Connector Design: | Straight |
| Attachment Type: | Plug |
| Number of Pins: | 4 |
| Coding, Side 1: | RJ45 |
| Side 1 Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | 600V Peak AWM rated |
| Mating Cycles: | ≤ 750 |
| Ambient Temperature (Operation)*: | - 40 °C - + 70 °C |
| Side 1 Design Standard: | IEC 60603-7-4 |
| Contact Base Material: | P / CuSN |
| Contact Bearer Material: | Polycarbonate |
| Molded Body Material: | PUR, black |
| Cable Number: | 342 |
| Conductor Size: | 2x2x0.34 mm² |
| Number of Wires: | 4 - 2 twisted pairs |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Cycles (Bending): | ˃ 2 M |
| Cycles (Torsion): | ˃ 2 M @ ± 360 °/1 m |
| Conductor Material: | Cu |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | green matt similarly RAL 6018 |
| Cable Diameter D: | ø 6.50 ± 0.20 mm |
| Wire Insulation Material: | PP |
| Insulated Wire Diameter: | ø 1.58 ± 0.05 mm |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Foil shield: | Al-PT Foil |
| Ambient Temperature (Fixed Installation): | - 50 °C - + 70 °C |
| Ambient Temperature (Flex Installation): | - 25 °C - + 70 °C |
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
| UL Cable Type: | AWM: 20549 |
| Flammability Class (Cable Jacket): | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Cable Characteristics: | Exclusion of dangerous materials; Line construction similar PROFInet C-Specification; Line requirements similar: IEC 11801, IEC 61156 (CAT 5), EN 50173, EN 50288-2-2 (100MHz-cable and EIA/TIA 568 B (CAT 5e), Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Good chemical and oil resistance; Exclusion of PVC and Silicone; LABS-free of lacquer wetting disturbing substances; Coldness flexibility |
| Core Colors: | star quad: white & blue, yellow & orange |
| Connector Design, Side 2: | Straight |
| Coding, Side 2: | RJ45 |
| Contact Base Material, Side 2: | P / CuSN |
| Contact Plating, Side 2: | Au |
| Molded Body Material, Side 2: | PUR, black |
| Protection Degree / IP Rating Note: | Only in locked position with it's proper counterparts |

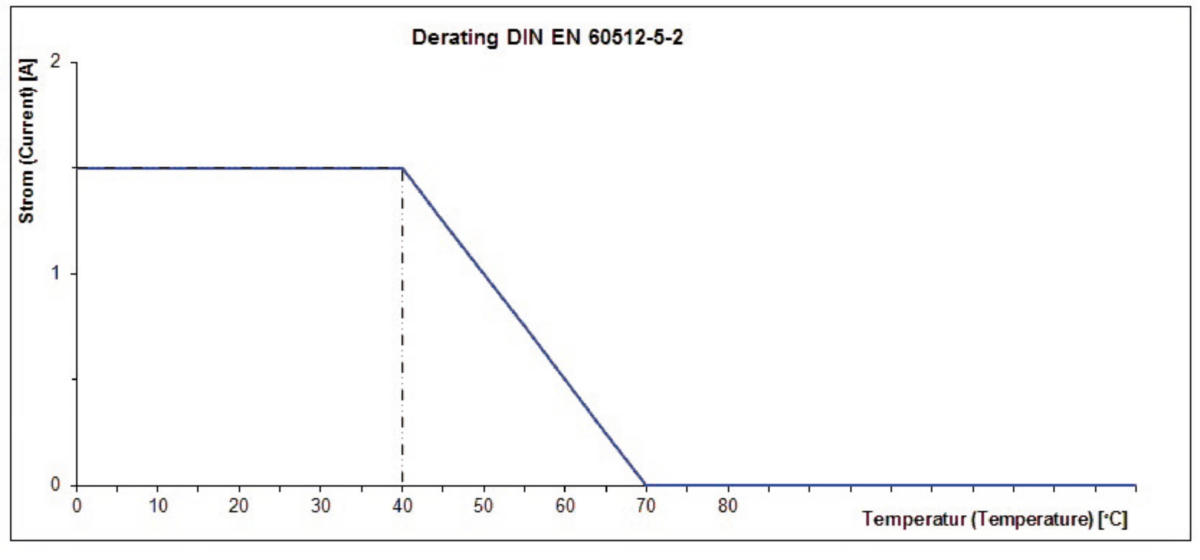

| Note Derating: | Notice Derating |
| Update and Revision: | Revision Number: 0.36 Revision Date: 04-23-2026 |
| Item # | Item Description | Cable Length | Color |
|---|---|---|---|
| 900001448 | 0985 342 500/0.5M | ||
| 900001450 | 0985 342 500/2M | ||
| 900001452 | 0985 342 500/10M | ||
| 900001876 | 0985 342 500/30M | ||
| 900003084 | 0985 342 500/60M | ||
| 900001875 | 0985 342 500/20M | ||
| 900004276 | 0985 342 500/75M | ||
| 900004277 | 0985 342 500/25M | ||
| 900016170 | 0985 342 500/0.3M | ||
| TJNPI01144 | 0985 342 500/0.3M TOOL SAMPLES | ||
| 900001449 | 0985 342 500/1M | 1 m | Color, Match Request |
| 900003065 | 0985 342 500/3M | 3 m | Color, Match Request |
| 900001451 | 0985 342 500/5M | 5 m | Color, Match Request |
| 900001823 | 0985 342 500/15M | 15 m | Color, Match Request |
| 900004273 | 0985 342 500/40M | 40 m | |
| 900003083 | 0985 342 500/50M | 50 m | |
| 900003085 | 0985 342 500/70M | 70 m |
