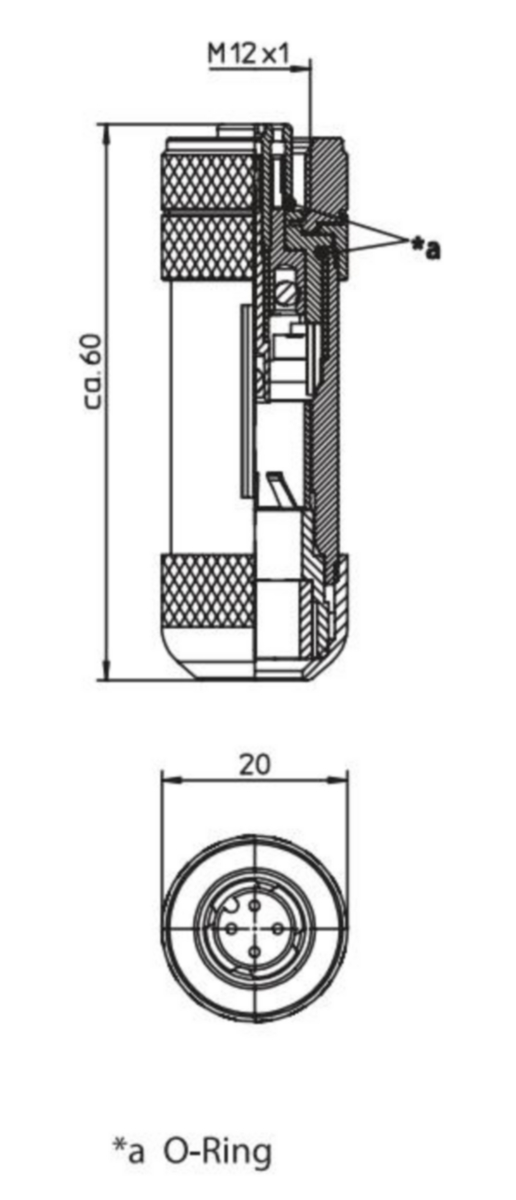

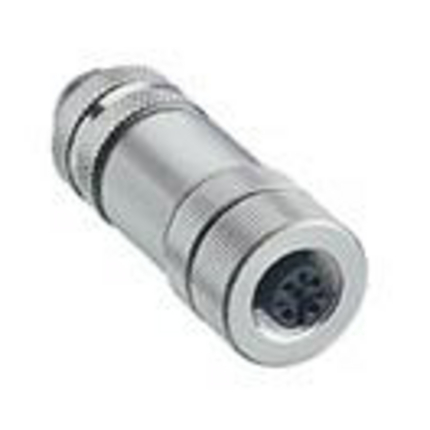

(4)Profibus field attachable connector, M12 female connector with threaded joint, shieldable, assembling with screw terminals 0976 PFC 101: 5 poles, B coding. Especially suitable for Profibus signal cable 0975 254 000.
| Product Family: | Field Attachable Connectors |
| Side 1 Product Sub Family: | M12 connector |
| Brand: | Lumberg Automation |
| Number of Pins: | 5 |
| Coding, Side 1: | B |
| Voltage Rating: | 60 V |
| Rated Voltage (UL): | 5 poles 63 V |
| Rated Impulse Voltage: | 1.5 kV |
| Side 1 Contact Resistance: | ≤ 5 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Maximum Wire Cross Section: | 0.75mm² |
| Suitable Cables: | Profibus signal cable |
| Ambient Temperature (Operation)*: | -25°C to +90°C (notice derating) |
| Protection Degree / IP Rating**: | IP 67 / NEMA 6P |
| Side 1 Pollution Degree: | 3 |
| Contact Base Material: | CuZn |
| Contact Bearer Material: | Ni/Au |
| Contact Bearer Color: | Black |
| O-Ring Material: | FKM |
| Item # | Item Description |
|---|---|
| 900000234 | 0976 PFC 101 |
