0936 DMC 352 - 7/8" Device Nut Receptacle: Male, straight, 5-pin, front mount, 600 V, 8 A, with THICK Specification pigtails wires





7/8" Device Nut Receptacle: Male, straight, 5-pin, front mount, 1/2" 14-NPT panel tap, 600 V, 8 A, with THICK Specification pigtails wires

Technical Data

Product Family: Data Connector
Product Sub Family: 7/8"
Brand: Lumberg Automation
Connector Type: Receptacle
Type of Contact / Gender: Male
Connector Design: Front Mount, 1/2-14 NPT panel tap size
Number of Pins: 5
Coding: A
Shielding: Unshielded
Attachment Type: Fixed, External Thread
Rated Voltage: 600 V
Rated Voltage (UL): 600 V
Rated Current*: 8 A
Rated Current (UL)*: 8 A
Data Transmission: CANopen / DeviceNet
Ambient Temperature (Operation)*: -25 °C to +90 °C
Protection Degree / IP Rating**: IP65, IP67

Materials

Contact Base Material: CuZn
Contact Plating: Au over Ag
Contact Bearer Material: TPU
Contact Bearer Color: YE
Housing Material: Zn die cast with black E-Coating
O-Ring Material: FKM, panel side

Cable Data

Conductor Size: 16 AWG
Number of Wires: 5
Conductor material: Cu
Wire Insulation Material: PVC
Insulated Wire Diameter: Ø 3.07 mm
UL Cable Type: 1015/1230

Safety & Environmental Compliance

RoHS Compliant: Yes

Notes

Note Derating: Notice Derating
Protection Degree / IP Rating Note: Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product
Note: Do not connect / disconnect under load
Variants
Item #Item DescriptionCable Length
9000002520936 DMC 3520.3 m

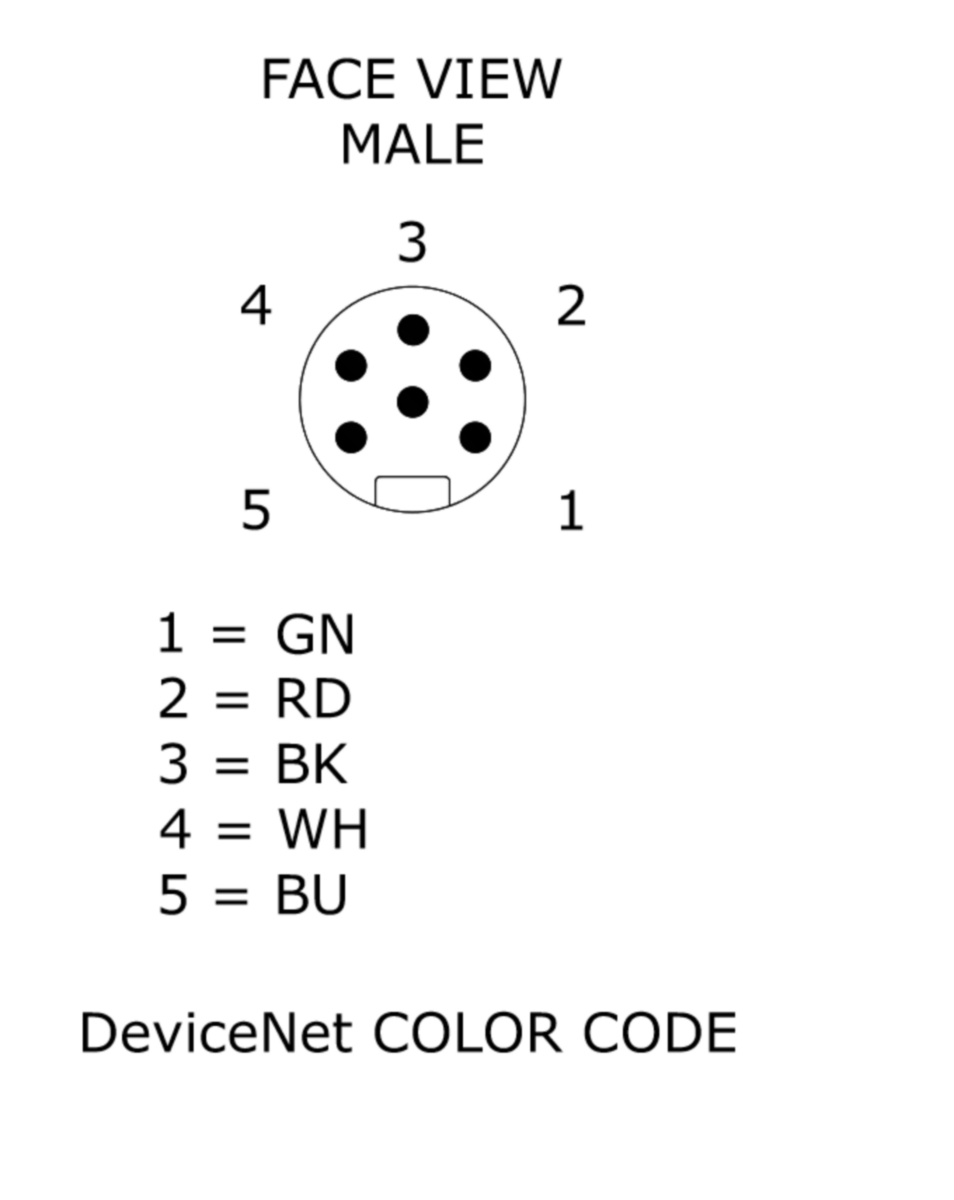

RSF 50 DN with pigtails.png
No accessories are available for this product
